CRL Vienna Brushed Nickel Frameless Shower Door Hardware Kit
Item# V1ES3BN
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
5 Degree Pre-Set
No
Adjustable
No
Back Plate
Full
Finish/Color
Brushed Nickel
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight
110 lbs. (49.9 kg)
Maximum Door Width - 1/2 Glass
32 in. (813 mm)
Maximum Door Width - 3/8 Glass
34 in. (864 mm)
Maximum Door Width -1/2 Glass
32
Mounting Type
Wall Mount
Self-Centering
Yes
Series
Vienna
- Hinges for 5/16" to 1/2" (8 to 12 mm) glass
- Set includes two hinges and one set of pull handles
- Features our five most popular hinge series
- Available in our four most popular finishes
- Includes our best-selling tubular pull handle or knob
- All components combined in easy-to-order sets (SKU: V1ES3BN)
- Designed for use with monolithic tempered glass shower doors

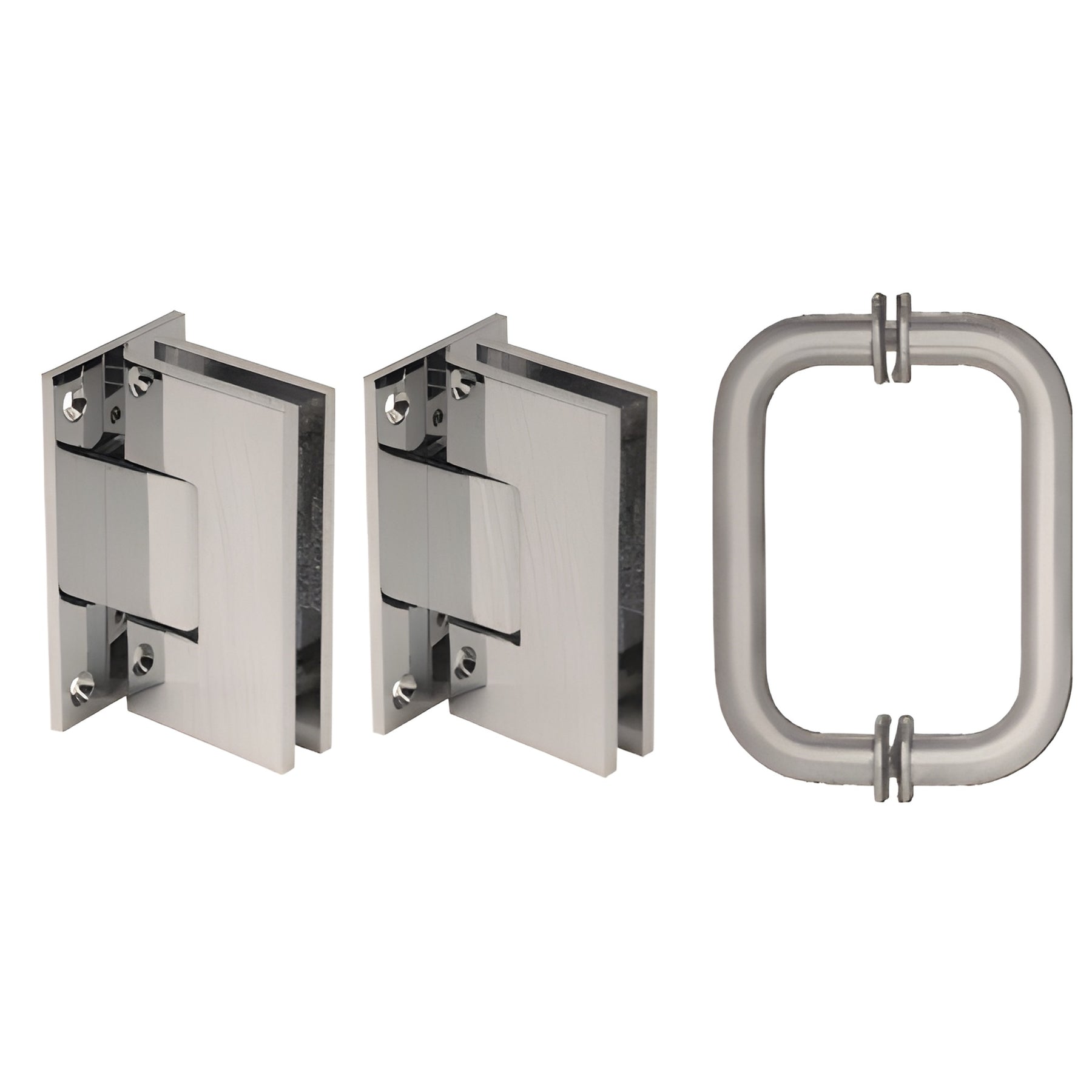

CRL Shower Pull and Hinge Set — Includes one set of BM6X6 tubular back-to-back pull handles with metal washers and two Vienna 037 Series wall-mount hinges. This preconfigured set bundles two of our most popular hinges and our top-selling pull handle for a quick, easy purchase—ideal as a shower door hinge and pull set for 8mm to 12mm tempered glass.
Product Warning:
CRL shower door hinges are engineered for residential and hotel shower use only. For applications beyond intended use, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may differ from other brands.
Most shipping weights are approximate and have not been verified. If exact weight is required to calculate shipping costs, contact CRL Customer Service before ordering. Product images are the actual item or a close representation; colors may vary by monitor and video card settings.
Order the complete CRL shower hinge and pull set (V1ES3BN) now for an easy, reliable shower door hardware solution.
Cleaning & Maintenance
