CRL Vienna Polished Brass Glass Shower Door Pull & Hinge Set
Item# V1ES3BR
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
5 Degree Pre-Set
No
Adjustable
No
Back Plate
Full
Finish/Color
Polished Brass
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight
110 lbs. (49.9 kg)
Maximum Door Width - 1/2 Glass
32 in. (813 mm)
Maximum Door Width - 3/8 Glass
34 in. (864 mm)
Maximum Door Width -1/2 Glass
32
Mounting Type
Wall Mount
Self-Centering
Yes
Series
Vienna
- Hinges for 5/16" to 1/2" (8 to 12 mm) glass
- Set includes two hinges and one set of pull handles
- Includes our five most popular hinge series options
- Available in our four most popular finishes
- Features our best-selling pull handle or knob
- All components combined in easy-to-order sets for shower doors
- Designed for use with monolithic tempered glass

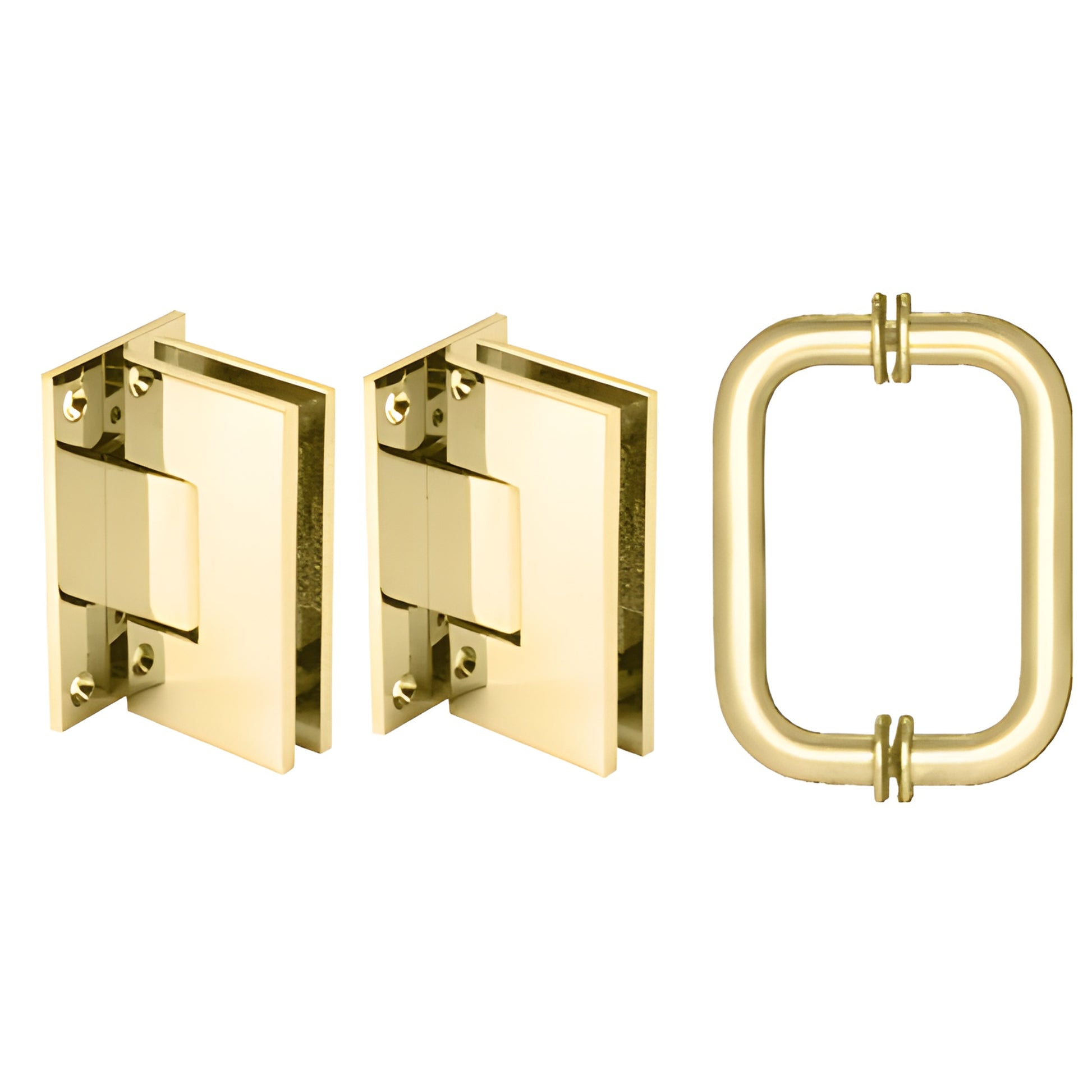

This CRL Shower Pull and Hinge Set (SKU: V1ES3BR) pairs one set of BM6X6 tubular back-to-back pull handles with metal washers and two Vienna 037 Series wall-mount hinges. Ideal as a complete shower door hinge and pull handle set for 8–12 mm glass, this kit simplifies ordering by combining our most popular hinges and best-selling pull in one package.
Key differentiators:
- Pre-matched hinge and pull combination—saves selection time and ensures style consistency
- Compatible with monolithic tempered shower glass (8–12 mm)
- Available in multiple finishes to match common bathroom hardware
- Includes mounting hardware (metal washers) for a complete installation kit
Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. If hinges are to be used for other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may not match other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors may vary depending on your monitor settings.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of initial packaging or storage. For details, see the Brass Finish Disclaimer in the Technical References section.
Order the CRL Vienna 037 hinge and BM6X6 pull set (V1ES3BR) now for an easy-to-install shower door hardware solution.
