CRL Brushed Nickel Wall-to-Glass Shower Support Bar 1/4-5/16"

• Alternative to CRL header kits for securing fixed glass panels and improving safety
• Supports fixed panels in enclosures that do not extend to the ceiling
• Wall-to-Glass and Glass-to-Glass models for frameless shower enclosures
• Use with monolithic tempered glass (no holes or cut-outs required)
• Simply cut to size—no drilling in glass; nylon-tipped set screws prevent glass-to-metal contact
• Available for 1/4" to 1/2" (6 to 12 mm) glass thickness; two bar lengths

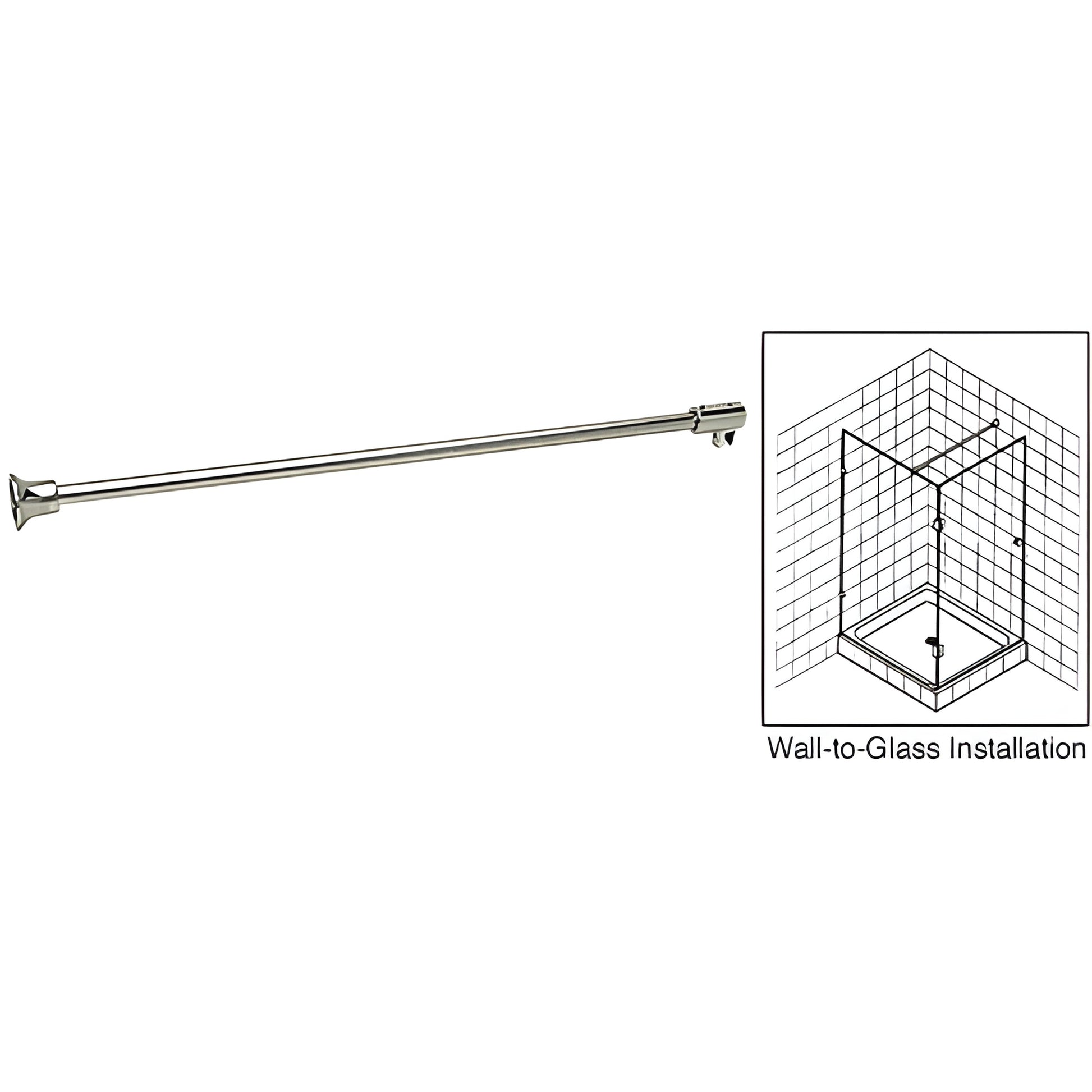

These CRL Fixed Panel Support Bars (SKU SUP06BN) stabilize fixed glass panels in frameless shower enclosures and other fixed-panel installations that do not reach the ceiling. The Wall-to-Glass model features a bell-shaped wall clamp and a solid brass end cap with a swiveling U-shaped receptacle to secure the glass. The Glass-to-Glass model has solid brass end caps with swiveling U-shaped receptacles on both ends for connecting two fixed panels.

Nylon-tipped set screws secure glass without metal-to-glass contact. Bars come in two lengths and fit 1/4"–1/2" (6–12 mm) tempered glass. Solid brass construction and finish options match CRL hinges, knobs, and pull handles. Longer lengths available separately.

SPECIFICATIONS:
Material: 3/4" (19 mm) diameter tubular brass bar, solid brass end caps
Bar Lengths: 39" (1 m); 51" (1.3 m)
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Includes: All required mounting hardware
