Product Details
- May be Used as an Alternative to CRL Header Kits to Secure Fixed Panels and Provide Safety
- Provides Fixed Panel Support for Enclosures Not Going to Ceiling
- Wall-to-Glass and Glass-to-Glass Models Available
- Use Monolithic Tempered Glass
- Simply Cut to Size to Accommodate Individual Configurations
- No Hole Drilling Required

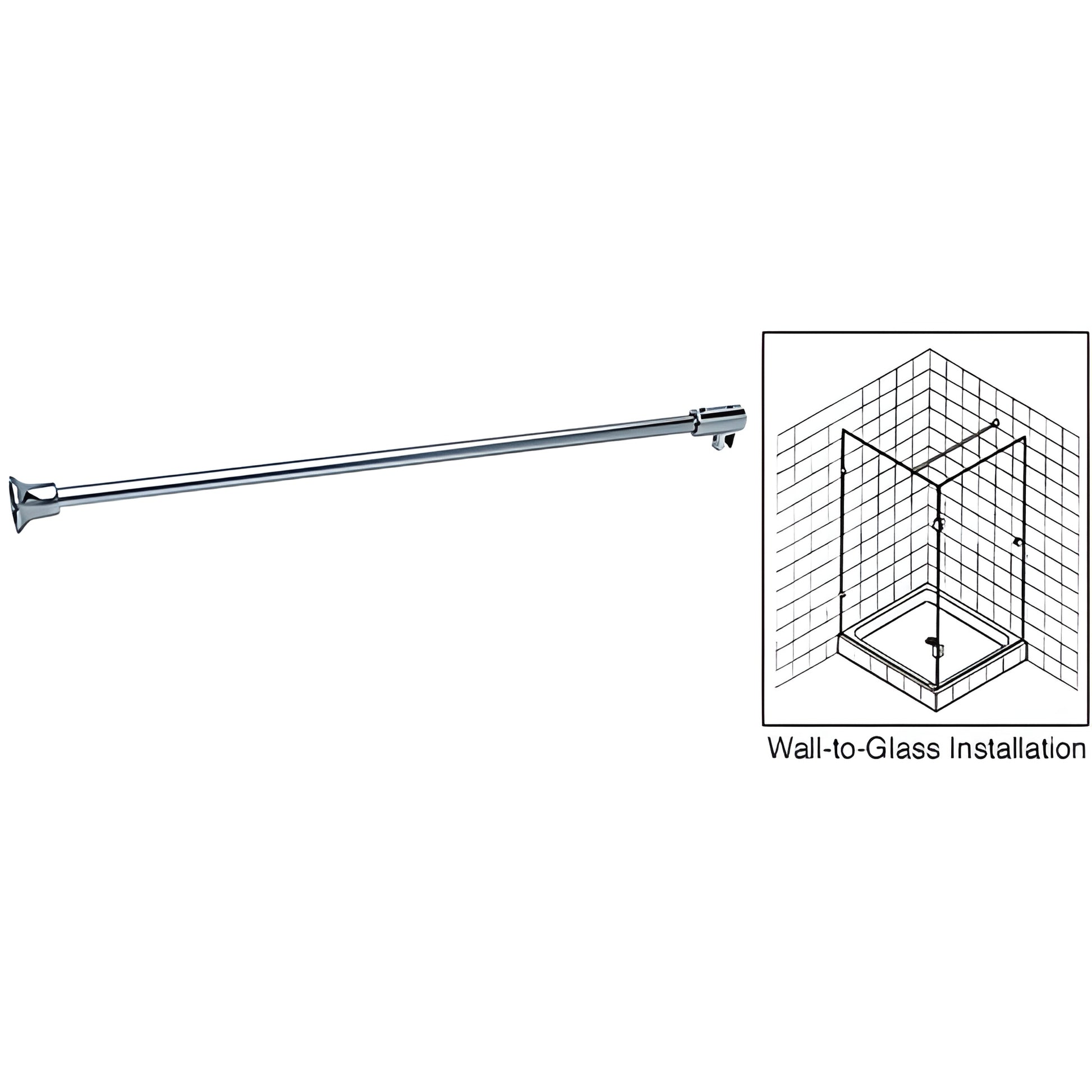

These CRL Fixed Panel Support Bars stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Wall-to-Glass Bar has a bell-shaped clamping device on the wall side, and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed glass panel. The Glass-to-Glass Bar has solid brass end caps with swiveling U-shaped receptacles on both ends to secure each fixed panel.
Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars are available in two lengths, and in sizes to secure 1/4" to 1/2" (6 to 12 mm) thick glass. Finishes are available to match most of our hinges, knobs, and pull handles. No holes or cut-outs are required in the glass. Longer length Bars only are available separately.
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Tubular Brass Bar, Solid Brass End Caps
Bar Lengths: 39" (1 m); 51" (1.3 m)
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Includes: All Required Mounting Hardware
