CRL Satin Brass Wall-to-Glass Support Bar 1/4"-5/16" Glass

• Alternative to CRL header kits for securing fixed glass panels and improving shower enclosure safety
• Provides fixed panel support for enclosures not extending to the ceiling
• Available in Wall-to-Glass and Glass-to-Glass models
• Designed for use with monolithic tempered glass; no holes or cut-outs required
• Simply cut to size to fit individual configurations; no drilling the glass
• Nylon-tipped set screws prevent glass-to-metal contact

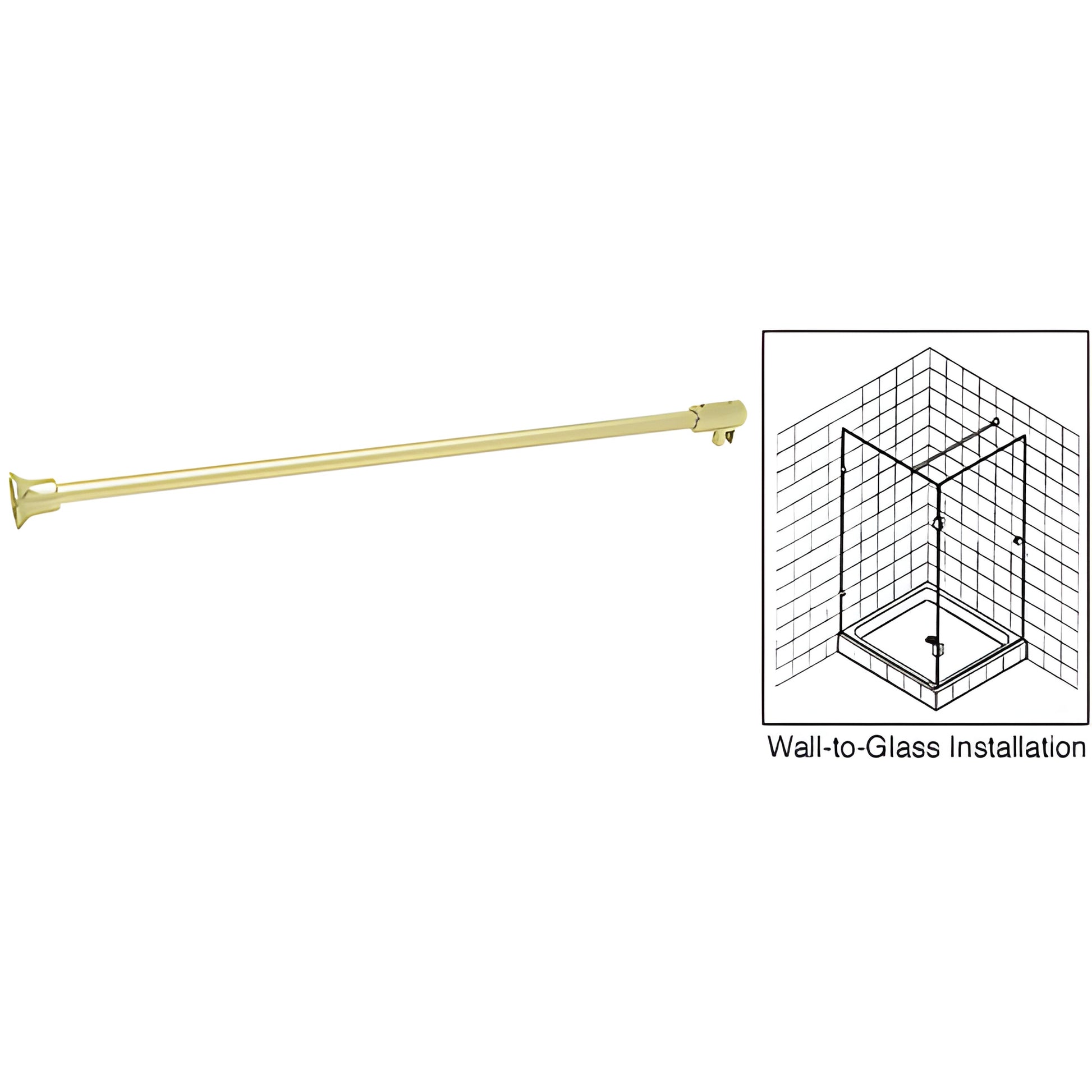

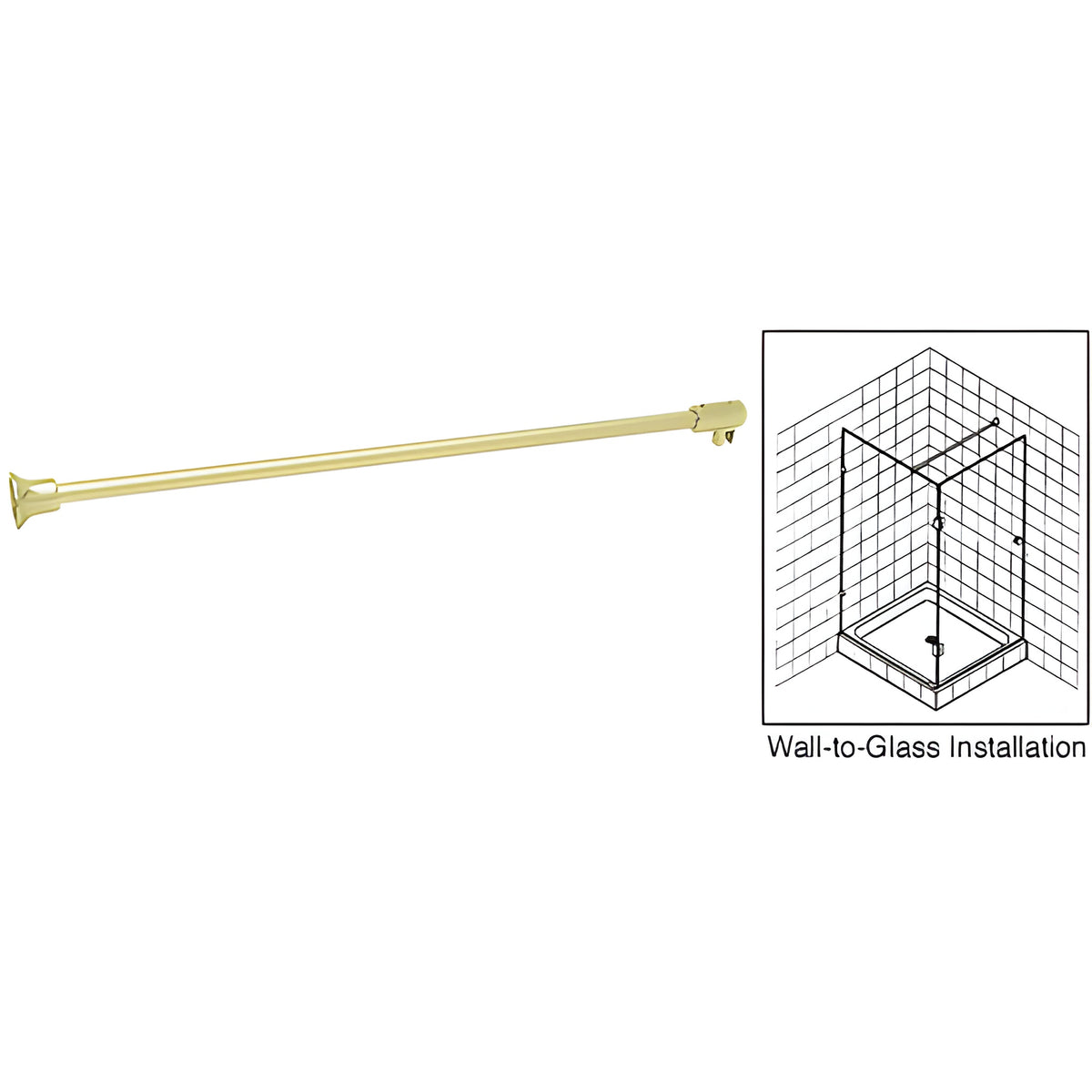

These CRL Fixed Panel Support Bars (SKU: SUP06SB) stabilize fixed glass panels in shower and bath enclosures that do not reach the ceiling. The Wall-to-Glass model uses a bell-shaped wall clamp and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed panel. The Glass-to-Glass model features solid brass end caps with swiveling U-shaped receptacles on both ends to secure adjacent fixed panels.

Bars accept monolithic tempered glass 1/4" to 1/2" (6–12 mm) thick and are secured with nylon-tipped set screws to protect the glass. Available in two lengths and multiple finishes to match hinges, knobs, and pull handles. Longer length bars are sold separately.

SPECIFICATIONS:
Material: 3/4" (19 mm) diameter tubular brass bar with solid brass end caps
Bar Lengths: 39" (1 m); 51" (1.3 m)
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Includes: All required mounting hardware

Brass Finish Advisory:
