CRL Z-Series Brushed Nickel Large Round Clamp for 1/4" Shower Glass

• For 1/4" (6 mm) monolithic tempered glass
• Ideal for partitions, mezzanines, wind breaks, railings and other commercial glass systems

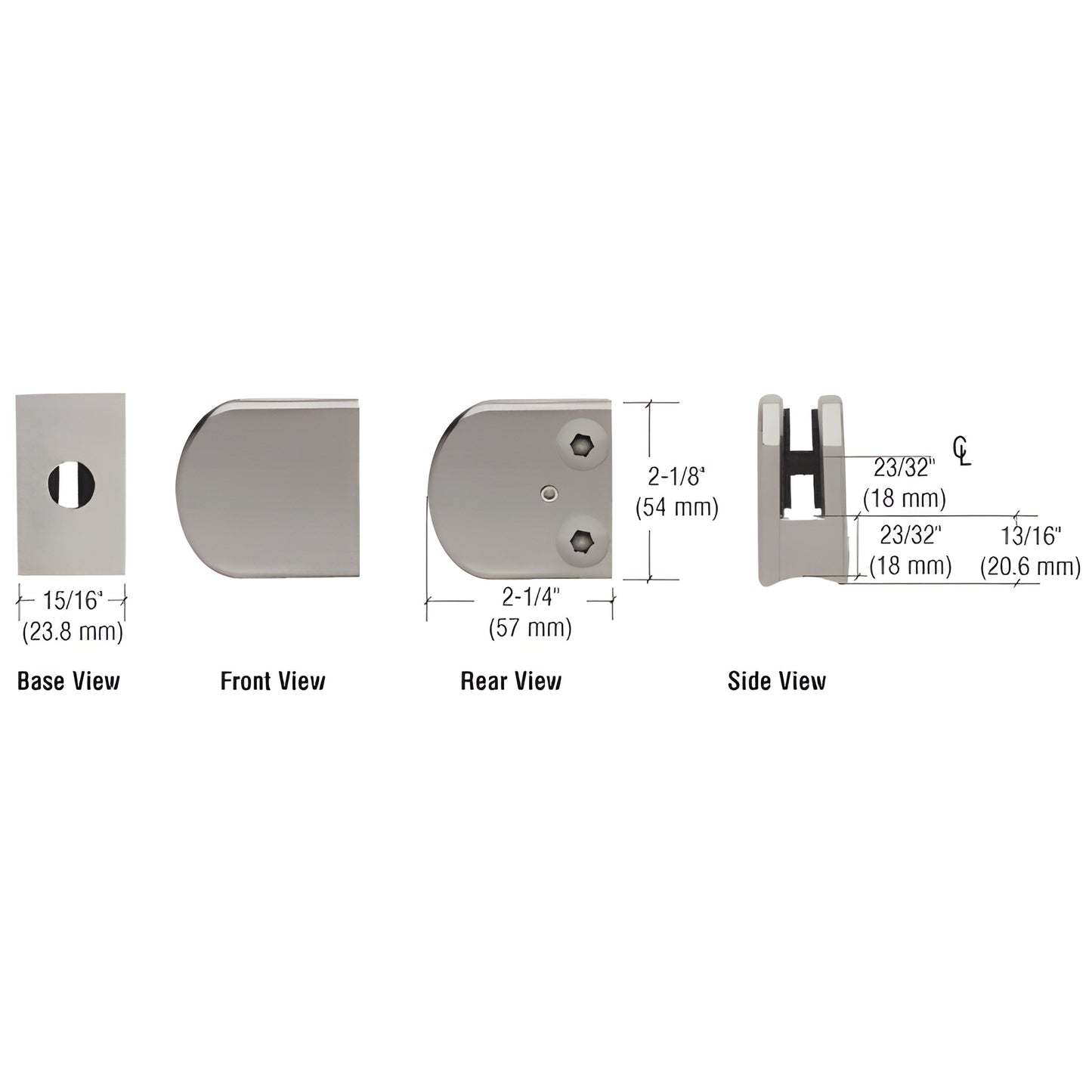

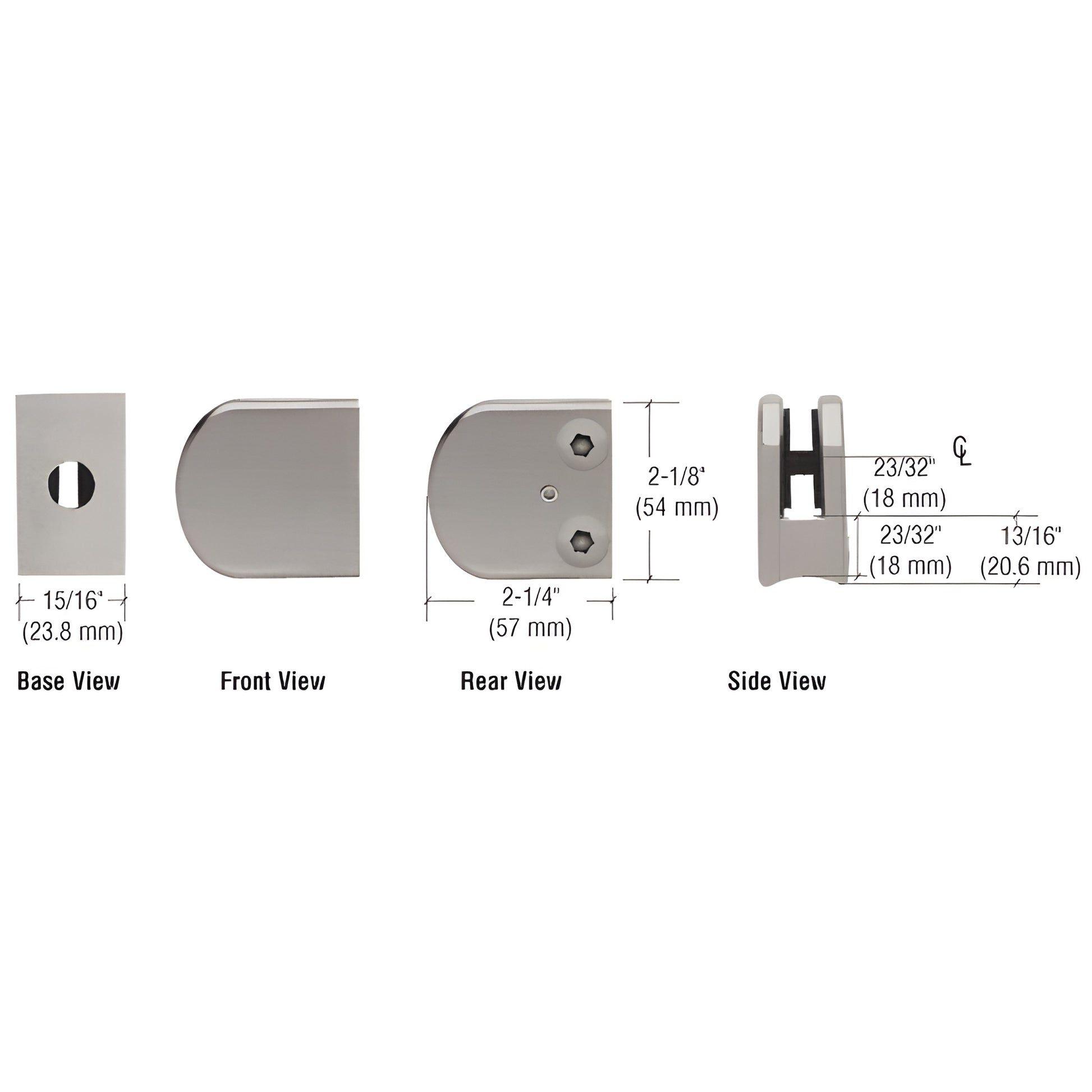

• Radius base design fits 2" tubing (wood or metal)
• Includes rubber gaskets and steel pin to prevent glass slippage
• Custom painted finishes available upon request

CRL Z-Series Clamps (SKU: Z106BN) are offered in round or square styles and in economical zinc or corrosion-resistant stainless steel. These Z-clamps accommodate 1/4" (6 mm) glass and feature a radius base that mounts to 2" (50 mm) tubing for sleek glass-to-tube connections. Use the included steel pin (requires a 1/2" / 12 mm notch in the glass) to secure panels that are not supported at the bottom edge.

To attach the clamp to tubing, use CRL Cat. No. ZB0LT14 (Bolt) or Cat. No. RN1420 (Rivet-Nut). Appropriate gaskets and replacement screws (CRL P612) are provided. These clamps are a reliable glass clamp solution for commercial railing and partition installations.

Glass Fabrication: 1/2" (12 mm) notch required for use with provided steel pin.
Replacement Hardware: CRL P612 Replacement Screws

Product Warning:
For interior and exterior applications, CRL recommends pinning each glass panel when the bottom edge does not support the panel to prevent slippage. Rubber gaskets and steel pins are supplied with each clamp.

Order Z106BN Z-Series glass clamps today for durable, tamper-resistant mounting of 1/4" tempered glass — contact CRL for custom finishes and bulk quotes.
