CRL Z-Series Brushed Nickel Small Square Glass Clamp 1/4-5/16in

• For 1/4" to 5/16" (6 to 8 mm) glass
• Ideal for partitions, mezzanines, wind breaks, railings and commercial glass applications
• Suitable for wood or metal radius tubing
• Use monolithic tempered glass; custom painted finishes available upon request

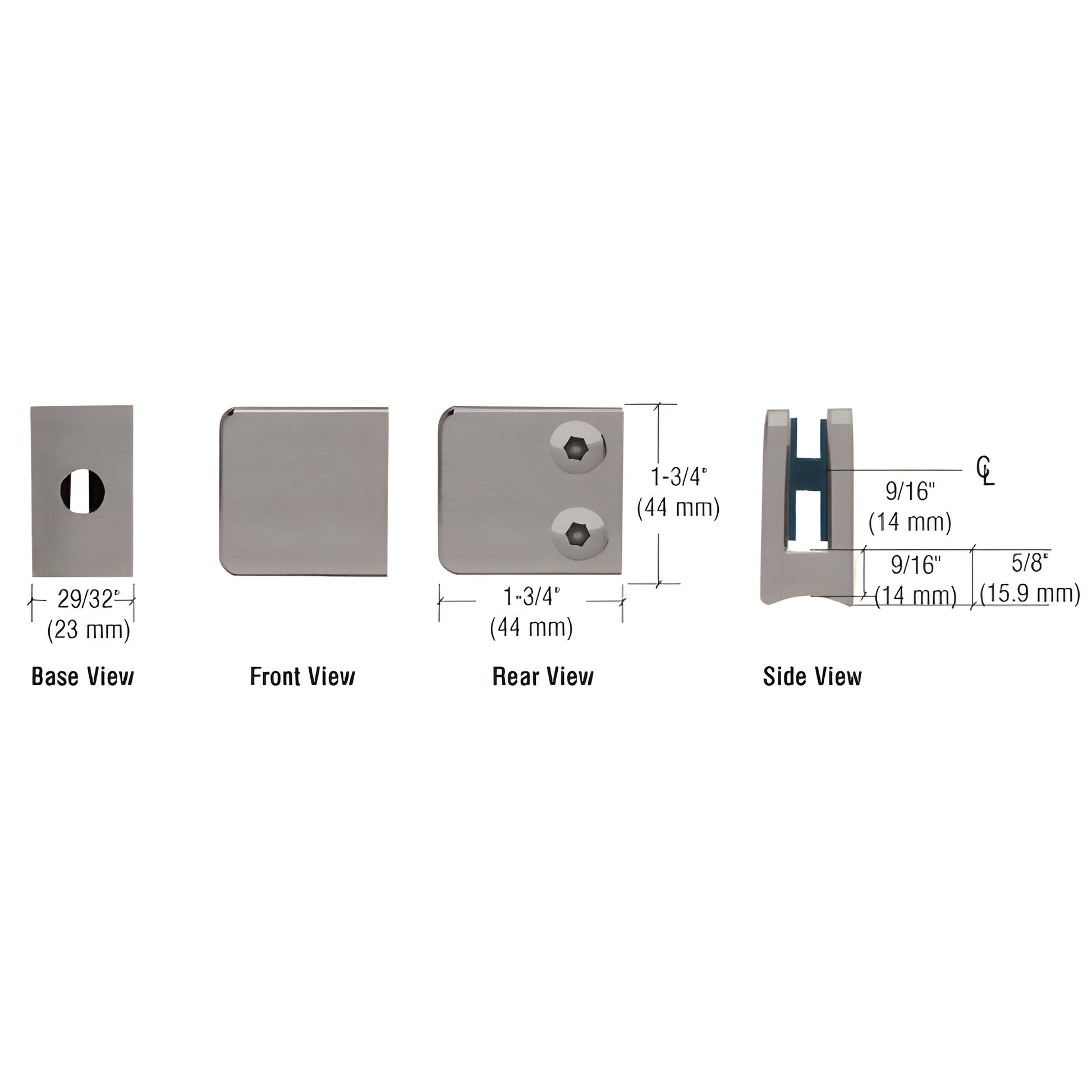

CRL Z-Series Clamps (SKU: Z130BN) are available in round or square shapes and in economical zinc or durable stainless steel constructions. The Z130 series glass clamp accommodates 1/4" to 5/16" (6–8 mm) glass and features a radius base designed to fit 2" (51 mm) tubing. A steel pin (included) can be used—after drilling a 1/2" (12 mm) notch in the glass—to prevent glass slippage. Appropriate rubber gaskets are supplied with each clamp. Use CRL Cat. No. ZB0LT (Bolt) or ZRNUT (Rivet-Nut) to secure the clamp to tubing. Multiple finishes available to match commercial decor. Long-tail keywords: Z130BN glass clamp for 6mm glass, Z-series radius tubing clamp, tempered glass railing clamp.

Glass Fabrication: 1/2" (12 mm) notch required if using provided steel pin.
Replacement Hardware: CRL P612 for replacement screws

Product Warning:

For interior and exterior use, CRL recommends pinning each glass panel when the bottom edge does not support the panel to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.

Order CRL Z130BN clamps today for reliable 6–8 mm glass mounting and customizable finish options.
