CRL 35-3/4" Brushed Stainless 1/2" Glass Square Door Rail No Lock

• 35-3/4" (908 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (quick install)
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks; matching sidelite rails available

SKU: DR2SBS12S

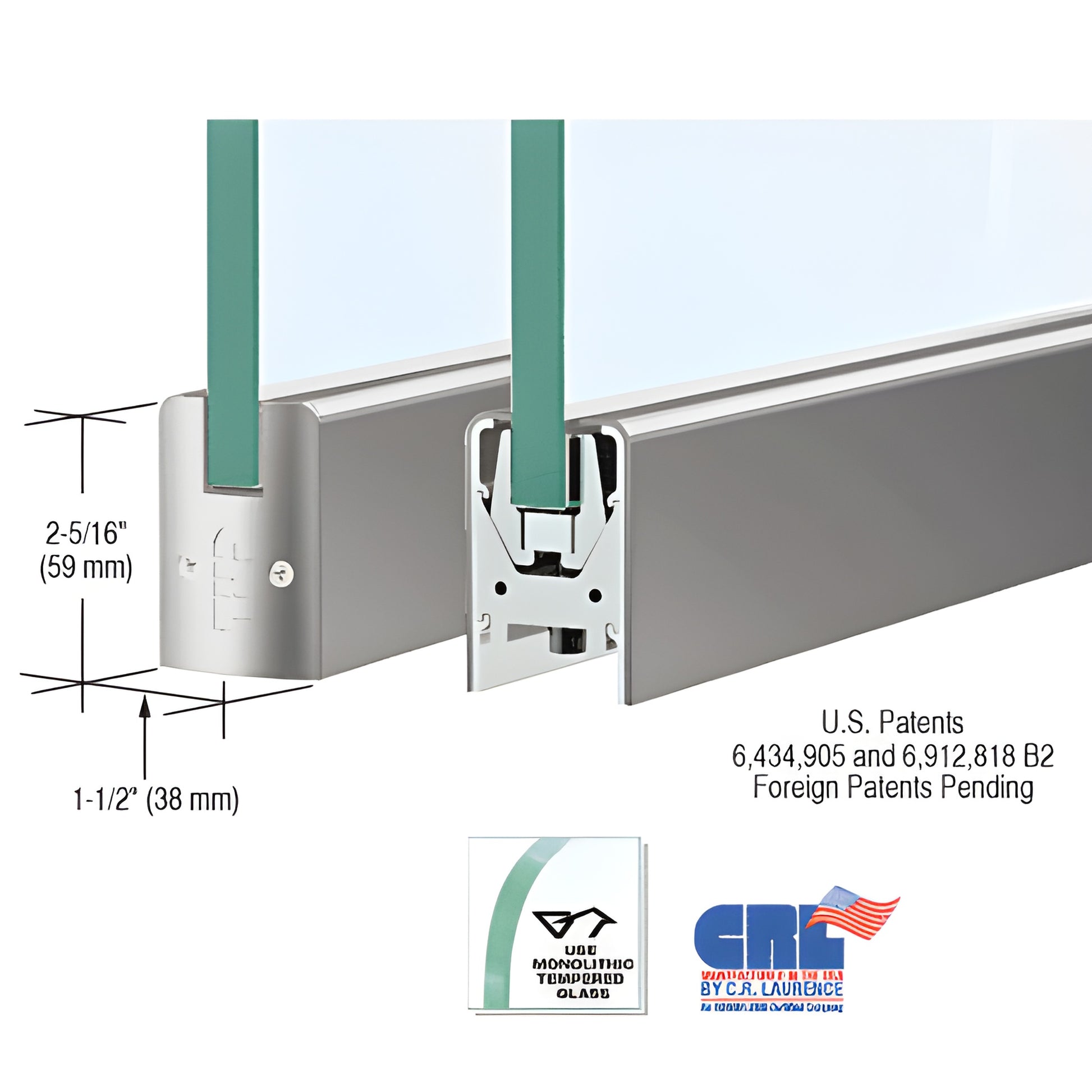

CRL Low Profile Door Rail — 2-5/16" (59 mm) H x 1-1/2" (38 mm) W — combines a slim architectural profile with CRL's patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails ship ready-to-install with end caps, installation instructions, and adjustment wrenches. Ideal long-tail product search: low profile door rail for 1/2" tempered glass, Wedge-Lock door rail for frameless glass doors.

Fast installation & adjustable alignment
Wedge-Lock® secures glass quickly — experienced installers can prepare a door in under ten minutes. Rails arrive fully fabricated; attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The adjustable alignment system provides ±1/8" (3 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door.

To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide, the two outer bolts adjust the slide in or out. The low-profile slide allows pivot placement off the American Standard setback (2-3/4" / 69.8 mm) to accommodate vertically out-of-square openings.

Key features & compatible glass

• Accepts glass thicknesses from 3/8" to 3/4" (10 to 19 mm)
• Rigid single-component housing resists shift and maintains adjustment
• Internal components remain assembled for faster installation
• Durable glass securing pads designed for extreme environments
• Built-in jamb alignment block (arms and pivots ordered separately)

Available in standard finishes and quoted in custom finishes and widths. Rail specifications, templates, and hardware packages available from CRL Technical Sales via e-mail.

Ordering information

• All rails supplied with standard Kwik-
