CRL Black Bronze Anodized 1/2" Glass Door Rail Low-Profile 35-3/4"

• 35-3/4" (908 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian 2,419,706; European EP 1 404 939 B1)

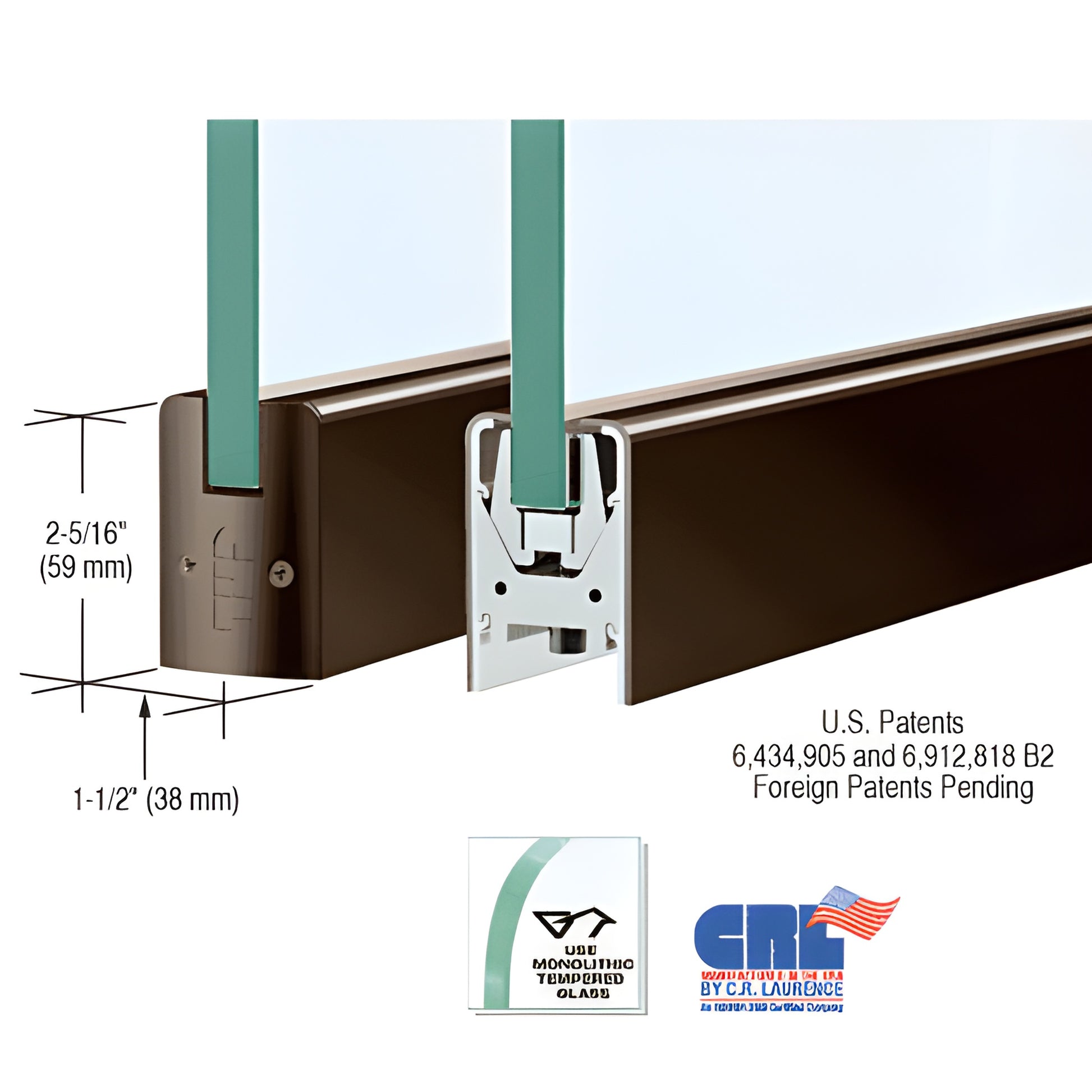

• Low profile rails—only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks; matching sidelite rails available

Our CRL Low Profile Door Rail (SKU: DR2SDU12S) is 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide and integrates the patented Wedge-Lock® glass securing system. Rails ship complete with End Caps, installation instructions, and adjustment wrenches for fast, ready-to-install operation. Designed for commercial and architectural applications, this low profile door rail is ideal when a slim sightline and secure 1/2" tempered glass mounting are required.

Key differentiators:

• Fastest installation among door rail systems—experienced installers can prepare a door in under ten minutes
• Rigid single-component housing resists shifting or loss of adjustment over time
• Adjustable Door Alignment System—±1/8" (3 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door
• Durable glass-securing pads designed for longevity in extreme environments
• Pre-fabricated, shipped ready-to-install with End Caps and adjustable alignment slide assembled

How it adjusts: Remove the End Cap to access three socket head cap bolts. The center bolt secures the slide; the outer bolts provide the ±1/8" (3 mm) fine adjustment. The low-profile slide allows pivot placement other than the American Standard setback for out-of-square openings.

Compatibility & options: Models accept 3/8" to 3/4" (10–19 mm) glass; arms, pivots, keyed cylinders, thumbturns, and pivot inserts (1NT701, 1NT703, 1NT704) are sold separately. All door rails include the built-in jamb alignment block. Kwik-Adjust™ Pivot Alignment System is standard; closer arms and floor/overhead pivots must
