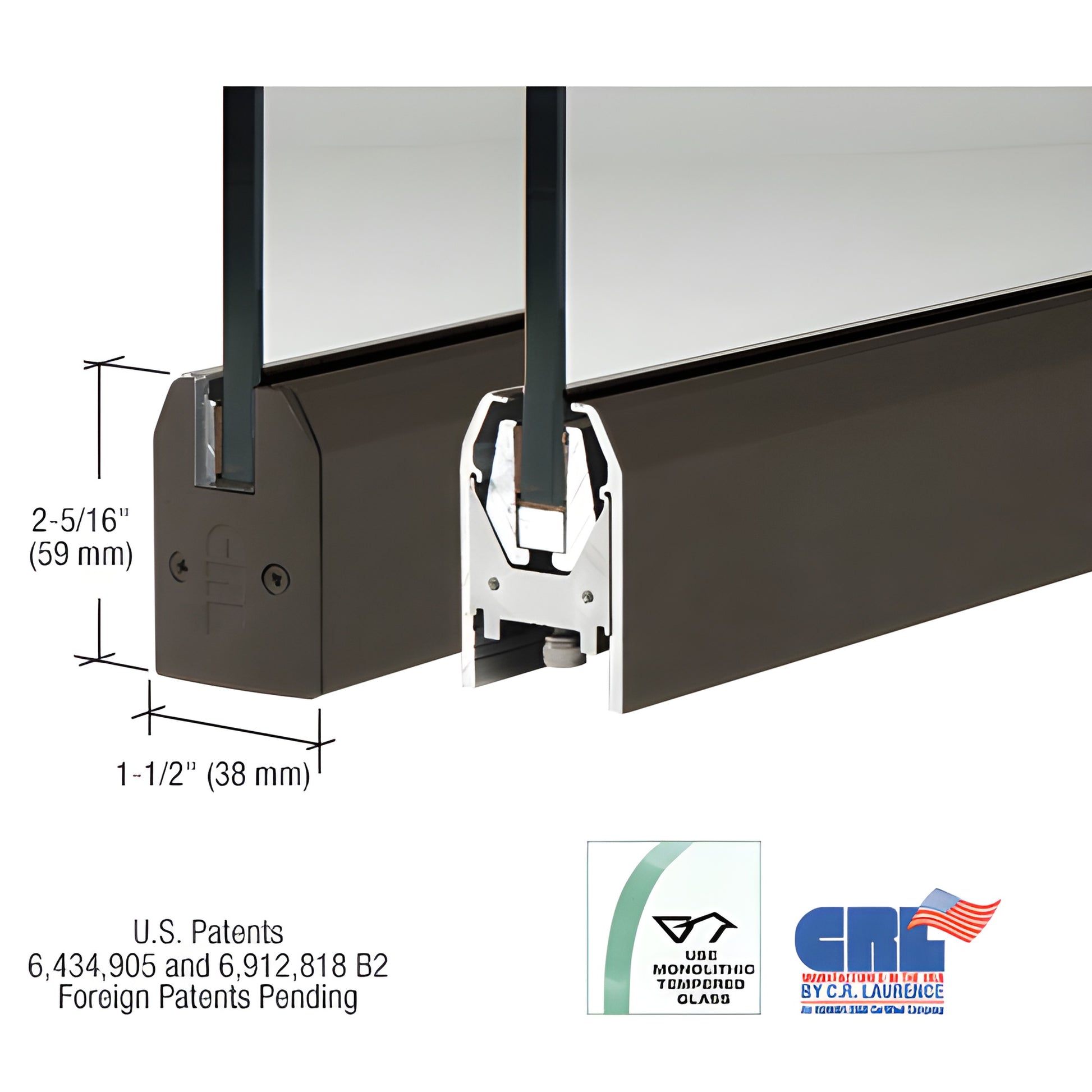

• CRL DR2TDU12S low-profile black bronze anodized aluminum door rail for 1/2" glass, 35-3/4" long, 2-5/16"H x 1-1/2"W
1 1

CRL

CRL Black Bronze 1/2" Glass Door Rail Low Profile 35-3/4 No Lock

CRL Black Bronze 1/2" Glass Door Rail Low Profile 35-3/4 No Lock

$436.46 CAD
$436.46 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DR2TDU12S
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized
Glazing Thickness
1/2 in. (12 mm)
Includes Lock
No
Length
35-3/4 in. (908 mm)
Material
Aluminum
Nominal Height
2-5/16 in. (59 mm)
Profile
Tapered
Removable Covers
Yes
Width
1-1/2 in. (38 mm)

Overview

  • 35-3/4" (908 mm) length for 1/2" (12 mm) glass (for monolithic tempered glass)
  • Patented Wedge-Lock® Glass Securing System — fastest installation for door rails
  • Low profile rails: only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide
  • Available in several stock architectural finishes; custom finishes available
  • Available without locks; matching sidelite rails available

Our CRL Low Profile Door Rail (SKU: DR2TDU12S) is a compact, ready-to-install rail engineered for 1/2" (12 mm) monolithic tempered glass. At just 2-5/16" (59 mm) high and 1-1/2" (38 mm) wide, it incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) for secure, long-lasting glass retention and industry-leading installation speed. End caps, installation instructions, and adjustment wrenches are included for out-of-box installation.

Key differentiators:
  • Wedge-Lock® secures glass without disassembling internal components — faster install and fewer field steps
  • Rigid single-component housing resists shifting or loss of adjustment over time
  • Adjustable Door Alignment System (standard top and bottom) provides ±1/8" (3 mm) door adjustment without removing the door
  • Durable glass pads designed for longevity in extreme environments
  • Low-profile adjustable slide enables pivot placement off the American Standard setback for out-of-square openings
  • Models available to accept 3/8" to 3/4" (10 to 19 mm) glass
Installation & adjustment: Rails ship with End Caps installed. After mounting, attach your door arm or pivot (not included) to the pre-assembled adjustable alignment slide. To fine-tune alignment, remove the end cap to access three socket head cap bolts: the center bolt locks the slide; the two outer bolts adjust the slide ±1/8" (3 mm). Pivot inserts (1NT701, 1NT703, 1NT704) and closer arms or floor/overhead pivots are sold separately.

Ordering notes:
  • All door rails include the Kwik-Adjust™ Pivot Alignment System; closer arms and pivots must be ordered separately
  • Models with locks include the lock mechanism; keyed cylinders or thumb
