CRL Matte Black 1/2 in Glass Shower Door Rail 35-3/4 in No Lock

• 35-3/4" (908 mm) length for 1/2" (12 mm) monolithic tempered glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; CA 2,419,706; EP 1 404 939 B1)
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

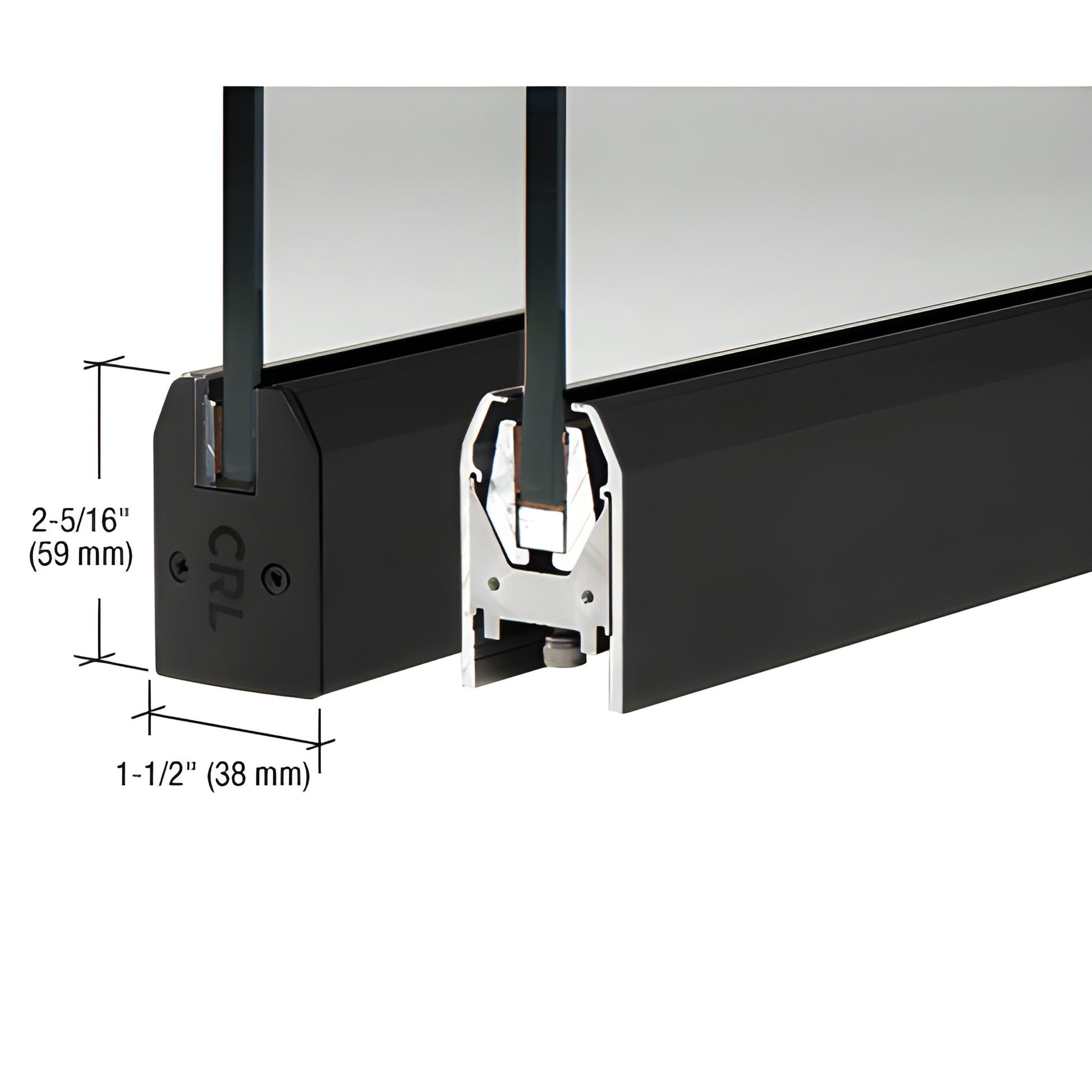

CRL Low Profile Door Rail (SKU: DR2TMBL12S) is engineered for frameless and minimal-frame glass doors, measuring 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide. It features the patented Wedge-Lock® Glass Securing System and ships complete with end caps, installation instructions, and adjustment wrenches for fast, job-ready installation.

The Wedge-Lock® system delivers secure attachment to tempered glass and the fastest installation times in its class — experienced installers can prepare a door in under ten minutes. Rails arrive fully fabricated with end caps installed; after mounting, simply attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The Adjustable Door Alignment System allows ±1/8" (3 mm) fine adjustment toward or away from the jamb without removing the door. Adjustment requires removing the end cap to access three socket head cap bolts: the center bolt locks the slide and the outer bolts adjust the slide in or out. The low-profile slide enables pivot placement other than the American Standard setback (2-3/4" / 69.8 mm) and supports fabrication for vertically out-of-square openings.

Why choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10–19 mm) glass in select models
• Rigid single-component housing that resists shifting or falling out of adjustment
• No need to remove internal components before installation
• Durable glass-securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.

Finishes and customization: CRL Wedge-Lock® Door Rails are available in several standard finishes and can be quoted for custom finishes and widths. Rail specifications, templates, and hardware packages are available
