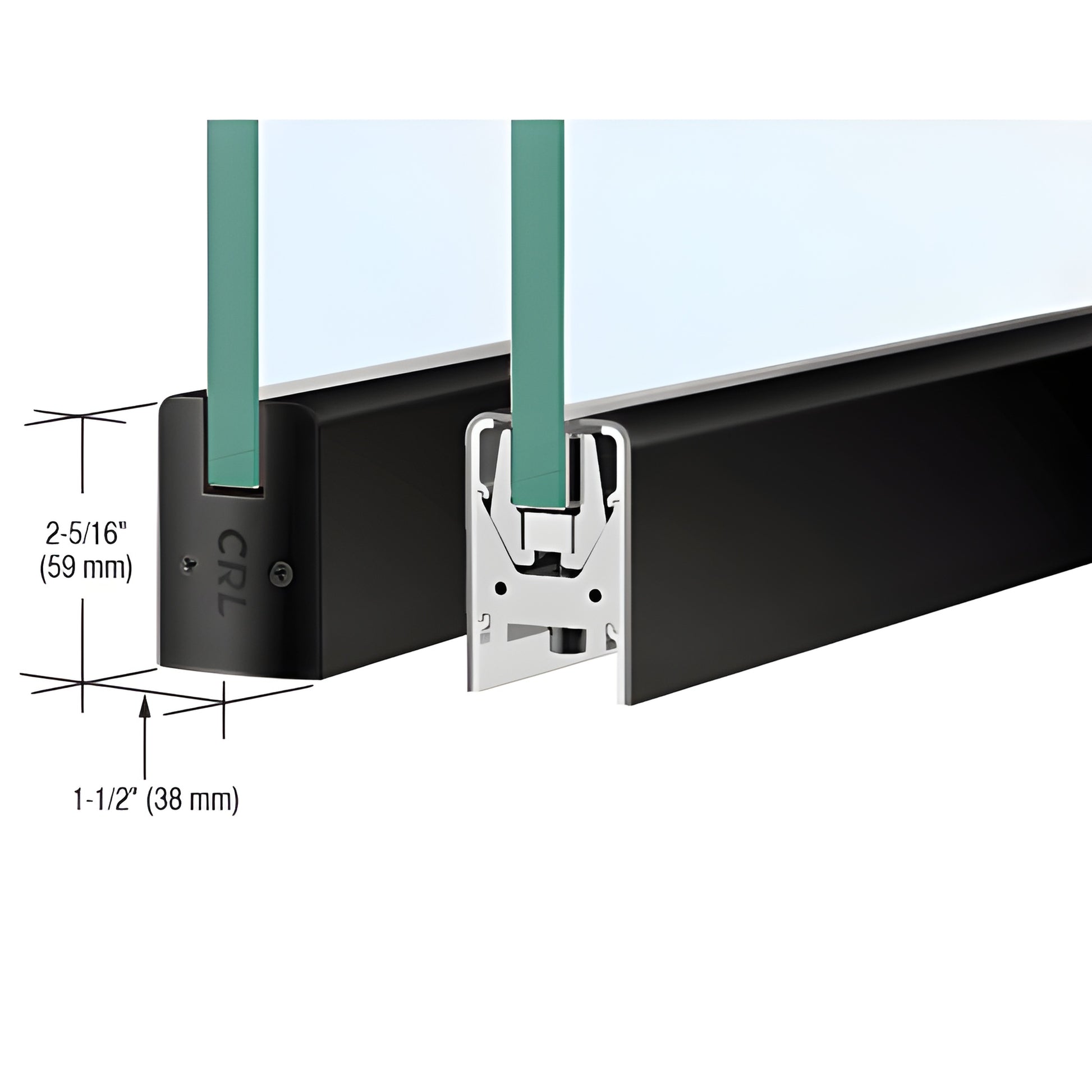

• Matte black low-profile door rail DR2SMBL12S for 1/2" (12mm) glass, 2-5/16" tall, with Wedge-Lock glass securing system.
1 1

CRL

CRL Matte Black Low-Profile Square Door Rail 1/2" Glass 35.75" No Lock

CRL Matte Black Low-Profile Square Door Rail 1/2" Glass 35.75" No Lock

$511.32 CAD
$511.32 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DR2SMBL12S
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Matte Black
Glazing Thickness
1/2 in. (12 mm)
Height
2-5/16 in. (59 mm)
Includes Lock
No
Length
35-3/4 in. (908 mm)
Removable Covers
Yes
Width
1-1/2 in. (38 mm)

Overview

  • 35-3/4" (908 mm) length for 1/2" (12 mm) glass
  • Use monolithic tempered glass
  • Patented Wedge-Lock® Glass Securing System (fast, secure glass retention)
  • Low profile rails—only 2-5/16" (59 mm) tall
  • Available in several stock architectural finishes; custom finishes available
  • Available without locks
  • Matching sidelite rails available

SKU: DR2SMBL12S

Our CRL Low Profile Door Rail measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and includes the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails ship complete with end caps, installation instructions, and adjustment wrenches—ready to install for frameless and glass storefront doors.

The Wedge-Lock® system combines secure glass attachment with the fastest installation time in the industry—experienced installers can prepare a door in under ten minutes. Rails come fully fabricated with end caps installed; after mounting the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The Adjustable Door Alignment System lets you move the door 1/8" (3 mm) toward or away from the jamb without removing the door. This standard feature on both top and bottom rails is accessed by removing the end cap to reveal three socket head cap bolts: a center securing bolt and two outer bolts for ±1/8" (3 mm) adjustment. The low-profile slide and slotted pivot grooves allow fabrication for openings that are vertically out-of-square.

Key differentiators and features:
  • Fast installation—pre-assembled rails reduce onsite labor
  • Rigid, single-component housing—stays true over time (not two-piece)
  • Internal components remain in place during installation
  • Durable glass securing pads designed for extreme environments
  • Accepts 3/8" to 3/4" (10 to 19 mm) glass in select models
  • Built-in jamb alignment block standard (arms and pivots ordered separately)

Ordering & installation notes:
  • All door rails include the standard Kwik-Adjust™ pivot alignment system; closer arms and floor/overhead pivots ordered separately.
  • Models with locks are supplied with the lock mechanism installed; matching finish keyed cylinders or thumbturns must be ordered separately.
  • End caps are included with stock lengths; specify overall door rail length (including end caps) for custom lengths.
  • Pivot inserts 1
