CRL 35-3/4" Low-Profile Black Powder-Coated Door Rail for 1/2" Glass

• 35-3/4" (908 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system for secure, fast glass door installation
• Low profile rails: only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

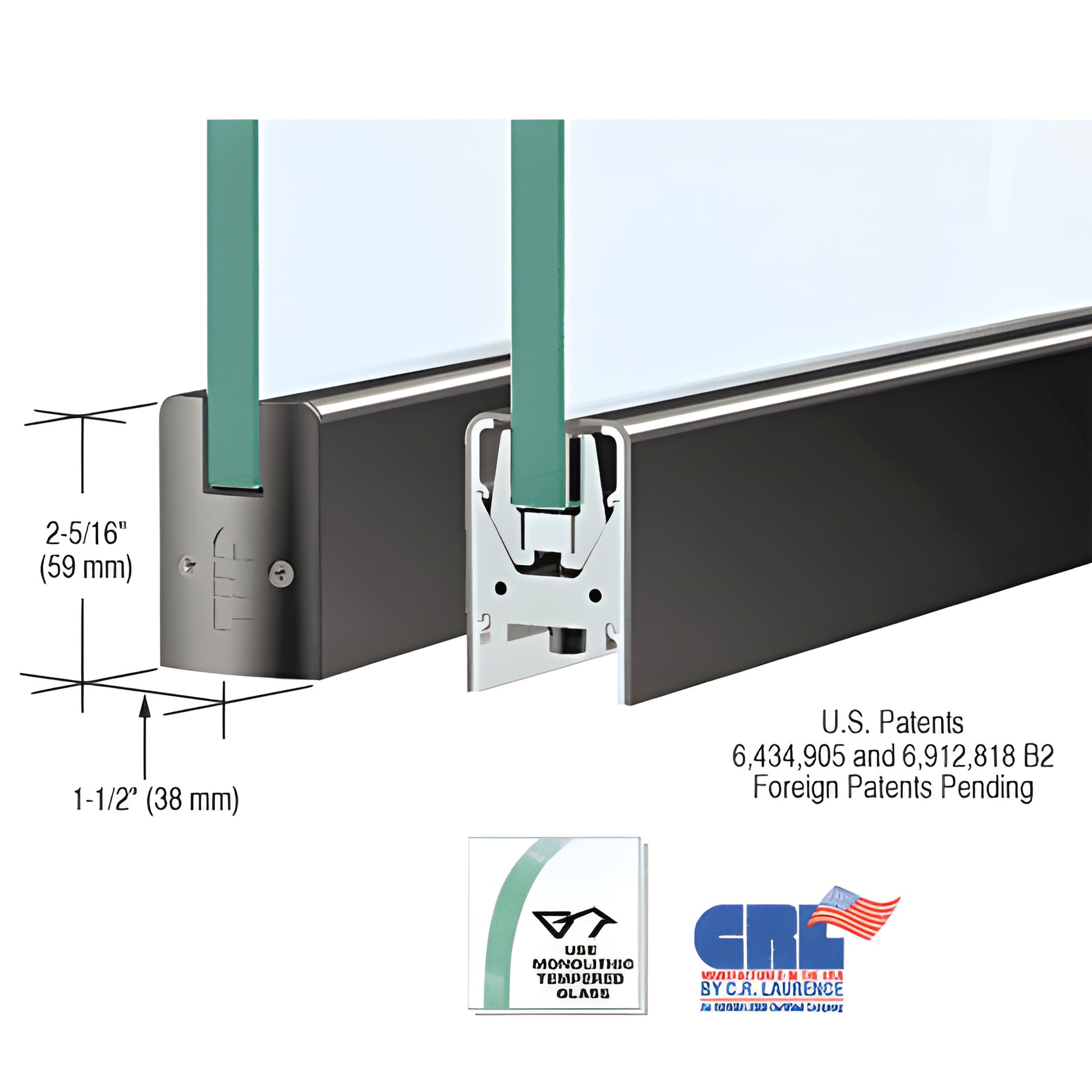

Our CRL Low Profile Door Rail is a compact, ready-to-install door rail for glass doors—measuring 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide—and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Each rail ships complete with end caps, installation instructions, and adjustment wrenches for fast, accurate installation.

NOTE: Actual product height: 2-5/16" (59 mm)

The Wedge-Lock® system provides a secure attachment to the glass and the fastest installation times among commercial door rails—experienced installers can prepare a door for hanging in under ten minutes. Rails arrive completely fabricated with end caps installed; after mounting the rail, simply attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The adjustable door alignment slide allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door. This adjustment is standard on both top and bottom rails. To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide in or out. The low-profile slide lets pivots with slotted grooves be positioned other than the American Standard setback of 2-3/4" (69.8 mm), enabling fabrication for vertically out-of-square openings.

Other Wedge-Lock® advantages: models available to accept 3/8" to 3/4" (10 to 19 mm) glass; single-component rigid housing that resists shifting or loss of adjustment; internal components remain assembled during installation; glass securing pads designed for long life in extreme environments.

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block. Arms, pivots, keyed cylinders, or thumbturns must be ordered separately to meet job requirements.

Available in several standard finishes; custom finishes and widths quoted upon request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:

• All door rails are supplied with the standard Kw
