• Gloss black low-profile aluminum door rail for 1/2" glass, 35-3/4" long with lock, SKU DR2SBL12SL
1 1

CRL

CRL Black Powder Coat Locking Square Door Rail for 1/2" Glass 35-3/4"

CRL Black Powder Coat Locking Square Door Rail for 1/2" Glass 35-3/4"

$776.87 CAD
$776.87 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DR2SBL12SL
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Cylinder Hole Prep
Both Sides
Finish/Color
Gloss Black
Glazing Thickness
1/2 in. (12 mm)
Height
2-5/16 in. (59 mm)
Includes Lock
Yes
Length
35-3/4 in. (908 mm)
Material
Aluminum
Nominal Height
2-5/16 in. (59 mm)
Profile
Square
Removable Covers
Yes
Width
1-1/2 in. (38 mm)

Overview

  • 35-3/4" (908 mm) Length for 1/2" (12 mm) Glass
  • Use Monolithic Tempered Glass
  • Patented Wedge-Lock® Glass Securing System (secure, fast install)
  • Low Profile Rails — Only 2-5/16" (59 mm) Tall
  • Available in Several Stock Architectural Finishes — Custom Finishes Available
  • Available Without Locks
  • Matching Sidelite Rails Available

SKU: DR2SBL12SL

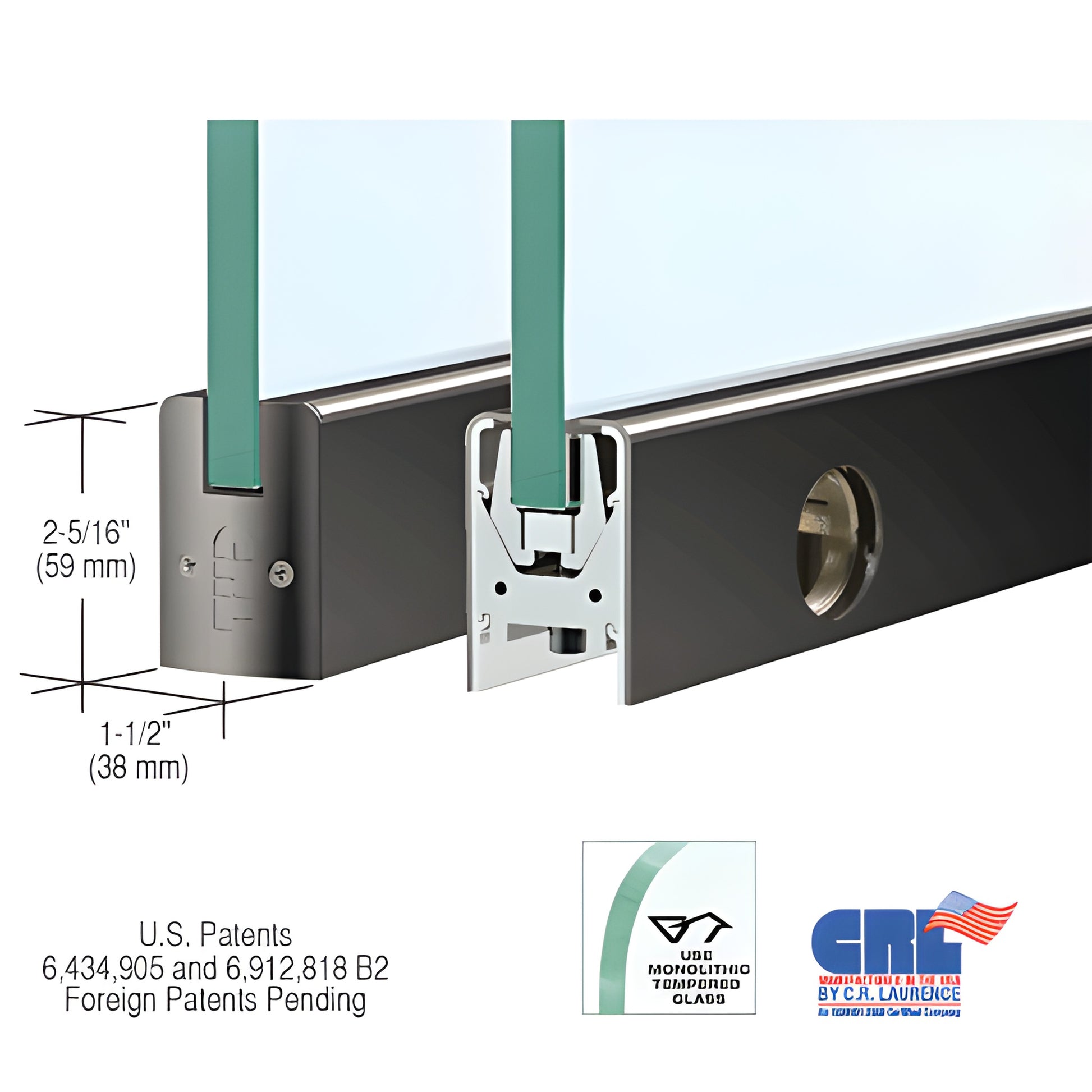

CRL Low Profile Door Rail is a compact, ready-to-install door rail for 1/2" (12 mm) monolithic tempered glass. The rail measures 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide and incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) for secure, long-lasting glass attachment and the fastest installation times in the industry.

Key differentiators:

  • Fast installation — experienced installers can prepare a door in under ten minutes
  • Patented single-component housing that resists shift and long-term misalignment
  • Adjustable Door Alignment Slide (top and bottom) — ±1/8" (3 mm) adjustment without removing the door
  • Durable glass pads engineered for extreme environments
  • Comes complete with End Caps, installation instructions, and adjustment wrenches

Installation & adjustment notes: Rails ship fabricated with End Caps installed. After mounting the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. To fine-tune alignment, remove the End Cap to access three socket head cap bolts: the center bolt secures the slide, outer bolts permit the 1/8" (3 mm) in/out adjustment. Low-profile slide allows pivot placement other than the American Standard Setback (2-3/4" / 69.8 mm).

Compatibility: Models available to accept 3/8" to 3/4" (10 or 19 mm) glass. All rails include the built-in Jamb Alignment Block; arms, pivots, keyed cylinders, thumbturns, and pivot inserts (1NT701, 1NT703, 1NT704) are ordered separately. All door rails are supplied with the standard Kwik-Adjust™ Pivot Alignment System; closer arms and floor/overhead pivots must be ordered separately.

Finishes & custom options: Available in several standard architectural finishes; custom
