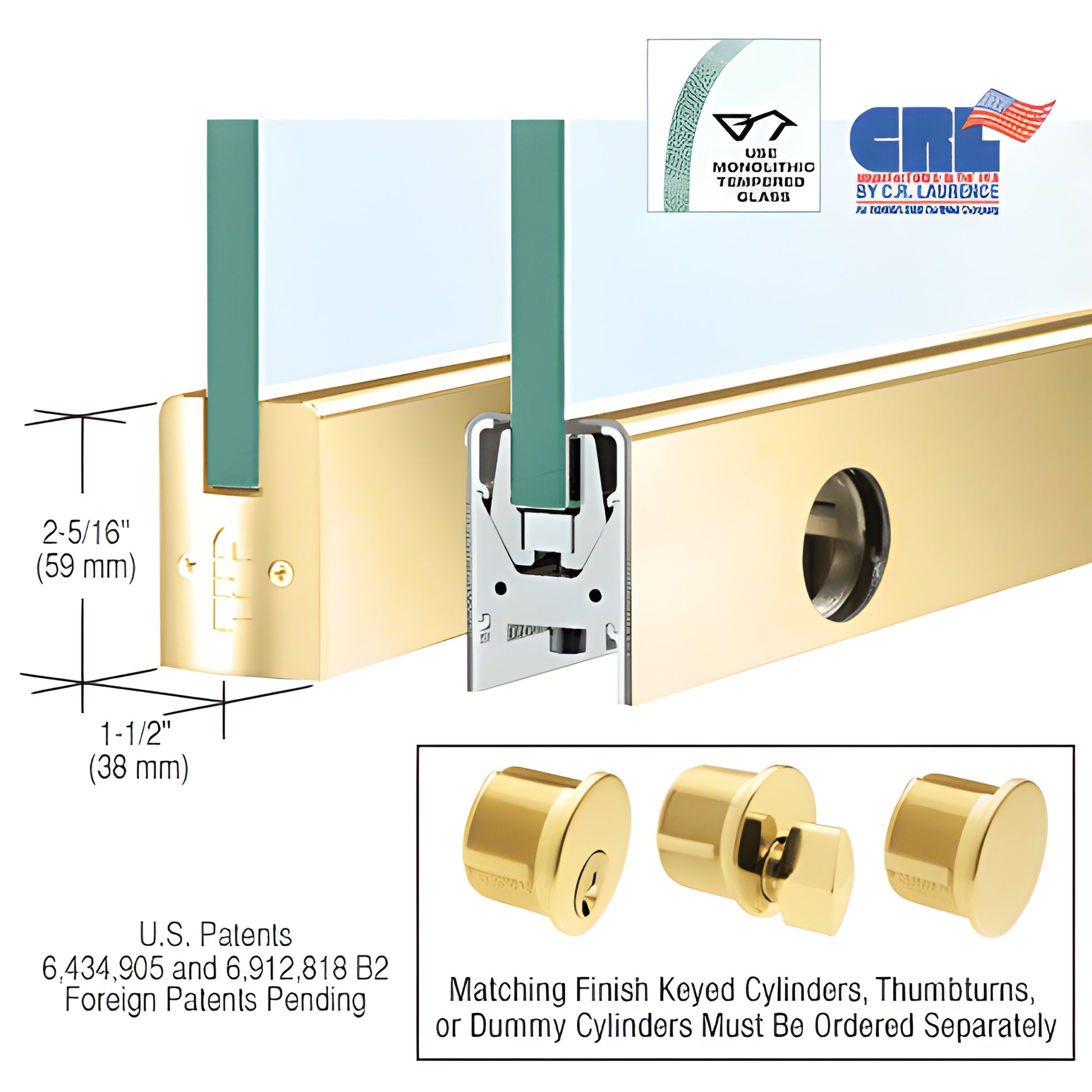

CRL Polished Brass Low-Profile Square Glass Door Rail w/ Lock 35-3/4"

• 35-3/4" (908 mm) length for 1/2" (12 mm) glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low profile rails are only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes — custom finishes available
• Available without locks
• Matching sidelite rails available

Our CRL Low Profile Door Rail is a ready-to-install, low profile door rail for frameless glass doors measuring 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide. It features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) and ships complete with End Caps, installation instructions, and adjustment wrenches.

NOTE: Actual product height: 2-5/16" (59 mm).

The Wedge-Lock® system secures 1/2" (12 mm) glass quickly and reliably, offering the fastest installation time among door rail systems. Experienced installers can prepare a door for installation in under ten minutes. Rails arrive completely fabricated; after mounting, simply attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The built-in Adjustable Door Alignment System allows in-place adjustment of 1/8" (3 mm) toward or away from the jamb on both top and bottom rails. To adjust after installation, remove the End Cap to access three socket head cap bolts: the center secures the slide, the outer two adjust the slide 1/8" (3 mm) in or out. The low-profile adjustable slide accommodates pivots set off the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Other benefits of Wedge-Lock® Door Rails:

• Models accept 3/8" to 3/4" (10 or 19 mm) glass
• Rigid single-component housing resists shifting or loss of adjustment
• Internal components remain in place during installation
• Durable glass-securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails feature a built-in jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are offered in several standard finishes and can be quoted for custom finishes and widths. Rail specifications, templates, and hardware packages
