CRL Polished Brass 3/8" Glass Low-Profile Door Rail 35-3/4" No-Lock

• 35-3/4" (908 mm) length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1)
• Low profile rails — 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

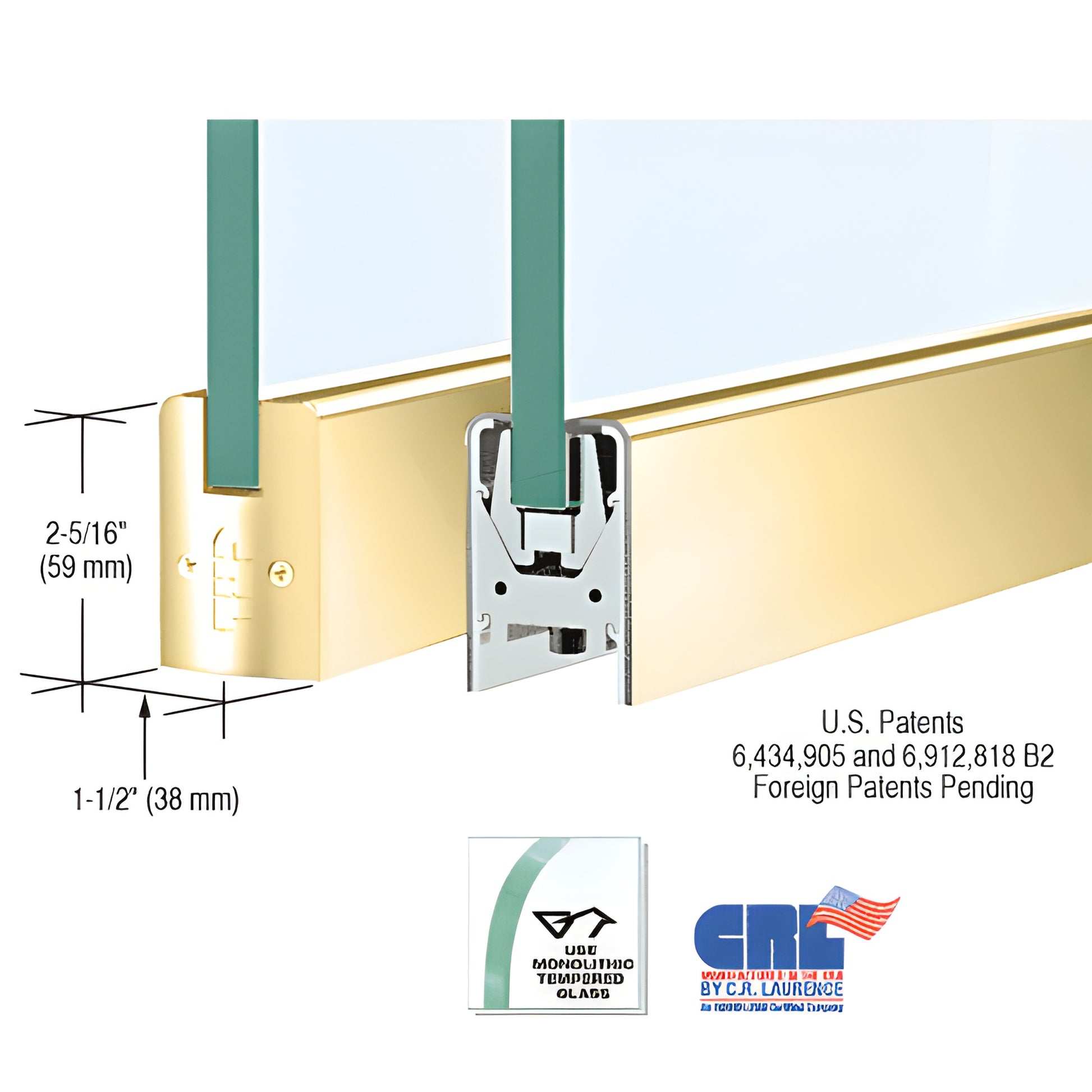

Our CRL Low Profile Door Rail (SKU: DR2SPB38S) measures only 2-5/16" (59 mm) high and 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Door Rail System — a low profile, ready-to-install door rail designed for fast installation and lasting alignment. Rails include End Caps, installation instructions, and adjustment wrenches.

NOTE: Actual Product Height: 2-5/16" (59 mm)

The Wedge-Lock® system secures monolithic tempered glass quickly and reliably, delivering one of the fastest installation times in the industry. Experienced installers can prepare a door for installation in under ten minutes. Rails ship completely fabricated with End Caps installed; attach the door arm or pivot (not included) to the pre-assembled adjustable door alignment slide.

The Adjustable Door Alignment System allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door. Adjustment access is achieved by removing the End Cap to reveal three socket head cap bolts: the center bolt secures the slide and the outer bolts fine-tune the 1/8" (3 mm) in/out movement. The low-profile slide permits pivot placement different from the American Standard setback for use in vertically out-of-square openings.

Other key benefits:

• Accepts 3/8" to 3/4" (10–19 mm) glass in available models
• Rigid single-component housing resists shifting or loss of adjustment over time
• No internal component removal required before installation
• Durable glass securing pads designed for longevity in extreme environments
• Built-in jamb alignment block (arms and pivots ordered separately)

CRL Wedge-Lock® Door Rails come in several standard finishes; custom finishes and widths can be quoted on request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:

• All Door Rails supplied with standard Kwik-Adjust™ Pivot Alignment System; closer arms and floor or overhead pivots sold separately.
• Models
