CRL Polished SS Low-Profile Square Rail 3/8in Glass 35-3/4in No Lock

• 35-3/4" (908 mm) Length for 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available Without Locks Only
• Matching Sidelite Rails Available

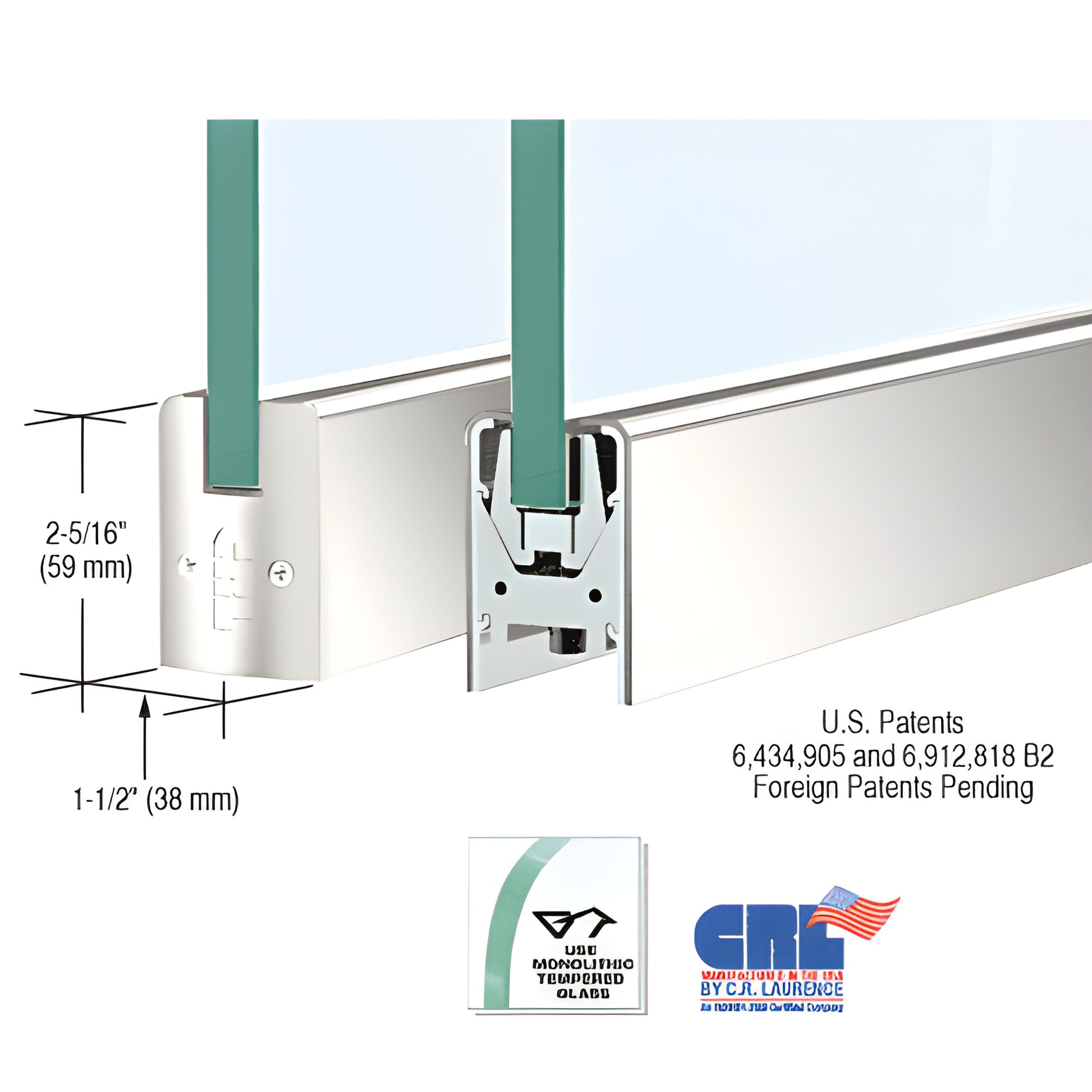

Our CRL Low Profile Door Rail (SKU: DR2SPS38S) measures just 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Low profile door rail assemblies come complete with End Caps, installation instructions, and adjustment wrenches for fast, ready-to-install performance.

NOTE: Actual Product Height: 2-5/16" (59 mm)

The Wedge-Lock® system secures 3/8" to 3/4" (10–19 mm) glass with a single rigid housing that resists shifting or loss of adjustment over time. Designed for the fastest installation of any door rail system in the industry, experienced installers can prepare a door in under ten minutes. Internal components remain in place during installation and the glass securing pads are engineered for long life in extreme environments.

CRL rails ship completely fabricated with End Caps installed. The only task after rail installation is attaching the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The Adjustable Door Alignment System allows ±1/8" (±3 mm) adjustment toward or away from the jamb without removing the door, standard on both top and bottom rails. The low-profile adjustable slide and slotted pivot grooves permit fabrication for vertically out-of-square openings and non-standard setback locations.

Other product features:

• Accepts 3/8" to 3/4" (10–19 mm) glass
• Rigid, single-component housing — not two-piece
• Internal components do not require removal before installation
• Glass securing pads designed for longevity in extreme environments
• Built-in Jamb Alignment Block (arms and pivots ordered separately)

CRL Wedge-Lock® Door Rails are available in several standard architectural finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales — e-mail.

ORDERING INFORMATION:

• All door rails include the Kwik-Adjust
