CRL 35-3/4" Satin Anodized 1/2" Glass Low-Profile Door Rail No Lock

• 35-3/4" (908 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1)
• Low profile rails: 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

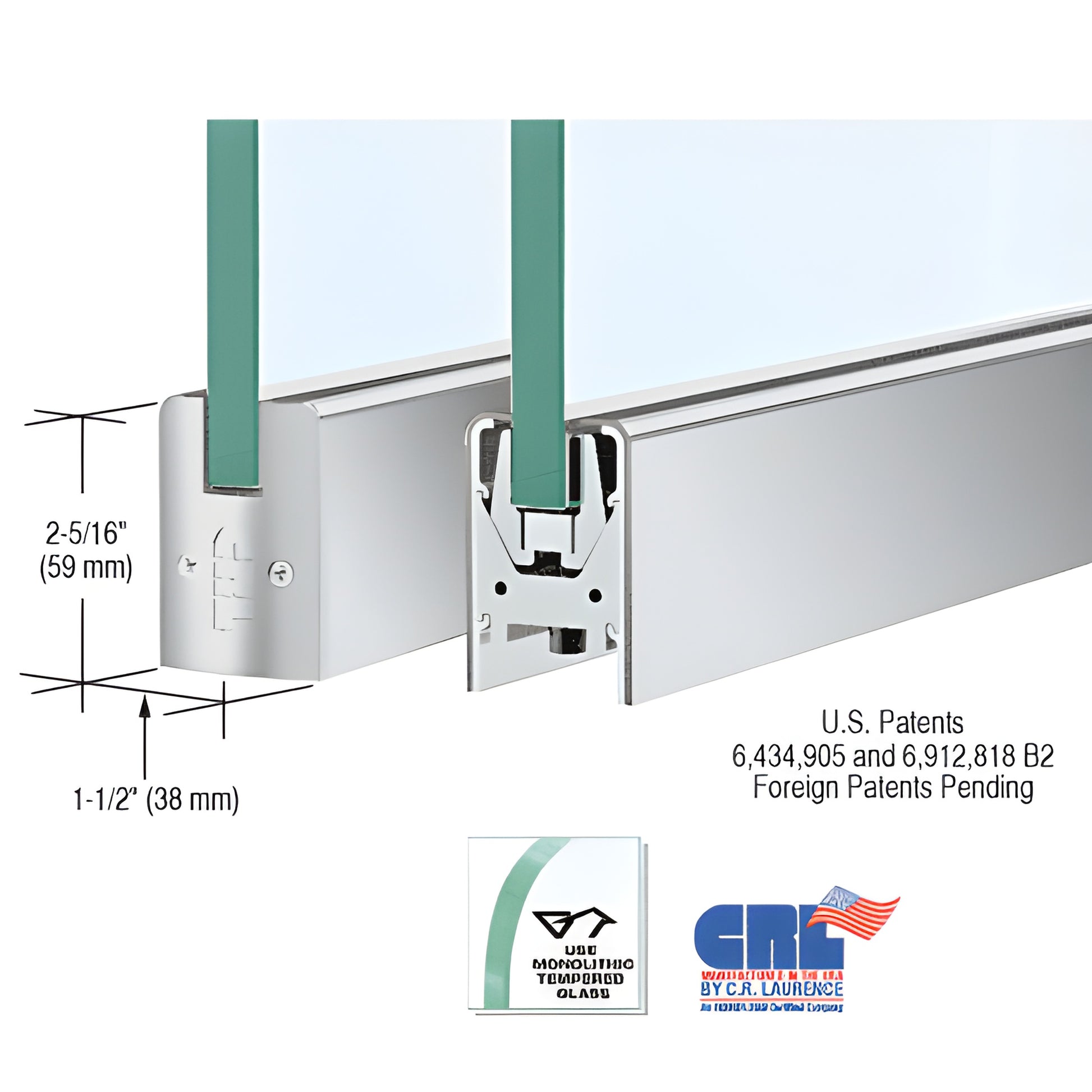

CRL Low Profile Door Rail (SKU: DR2SSA12S) measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and includes our patented Wedge-Lock® Glass Securing System. Rails come complete with end caps, installation instructions, and adjustment wrenches for fast, ready-to-install commercial door assemblies.

Key differentiators

• Fast installation: experienced installers can prepare a door in under ten minutes using the Wedge-Lock® system
• Integral, rigid single-component housing—won’t shift or fall out of adjustment over time
• Adjustable Door Alignment System standard on both top and bottom rails—adjust door 1/8" (3 mm) toward or away from the jamb without removing the door
• Internal components remain in place during installation; glass pads designed for longevity in extreme environments
• Can be fabricated for vertically out-of-square openings thanks to low-profile adjustable slide

Operation & installation notes

Rails ship fabricated with end caps installed. After installation, remove the end cap to access three socket head cap bolts: center bolt secures the adjustable slide; the two outer bolts adjust the slide 1/8" (3 mm) in or out. Arms and pivots must be ordered separately to meet job requirements.

Glass & hardware compatibility

• Designed for 1/2" (12 mm) monolithic tempered glass (listed rail length matches this glass thickness)
• Other Wedge-Lock® models accept 3/8" to 3/4" (10 to 19 mm) glass
• Pivot inserts (1NT701, 1NT703, 1NT704), closer arms, floor or overhead pivots, keyed cylinders, and thumbturns are sold separately

Finishes & custom options

Available in several standard finishes; custom finishes and custom widths can be quoted on request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via
