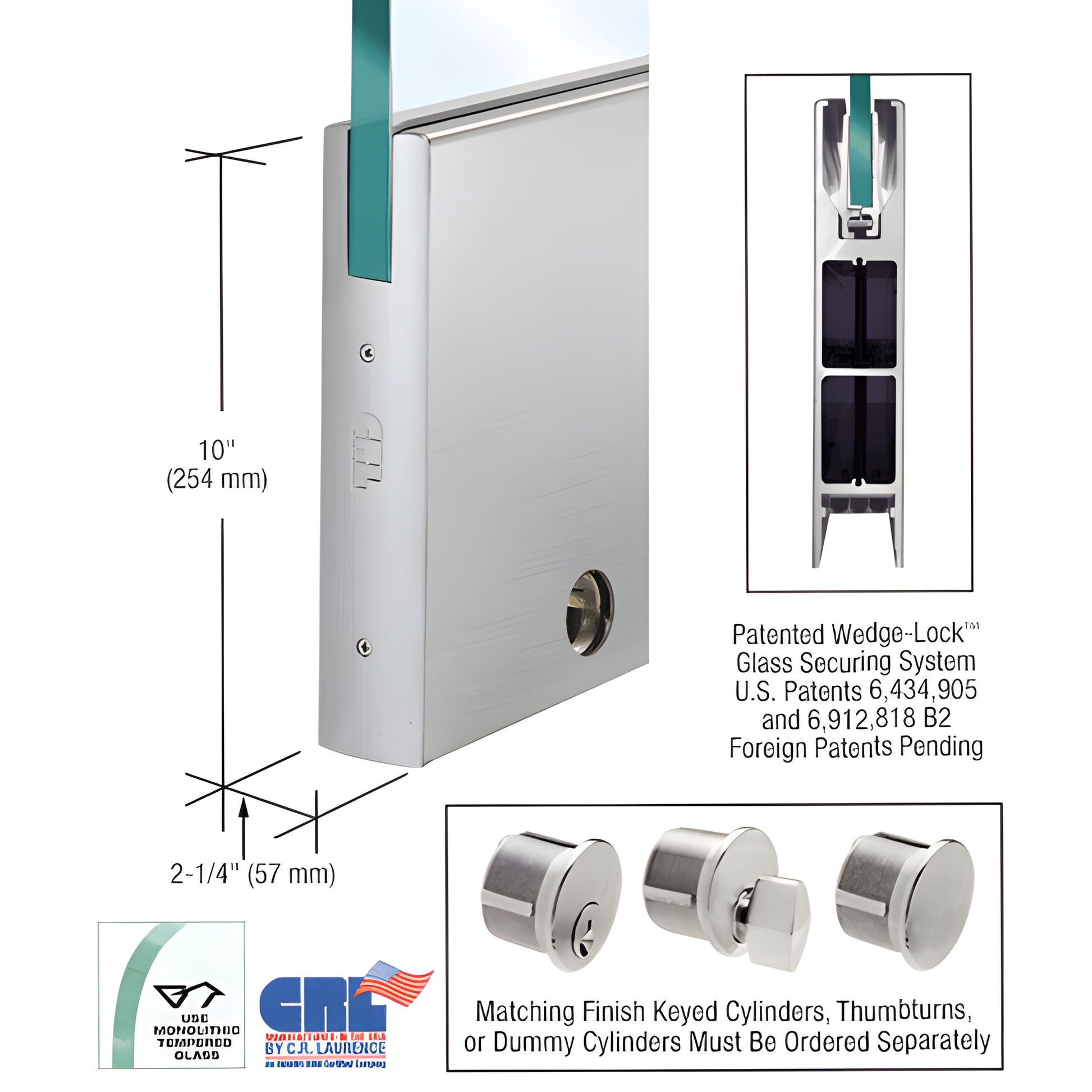

CRL Brushed Stainless 5/8in Glass Door Rail 10in Sq 35-3/4in w/ Lock

• 35-3/4" (908 mm) length for 5/8" (16 mm) monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1)
• Models to fit 1/2" to 3/4" (12 to 19 mm) glass; some models accept 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes and widths available
• Available with and without locks; matching sidelite rails available

SKU: DR10SBS58SL

Our CRL Wedge-Lock® Door Rail System is an innovative glass entrance door rail engineered for secure, long-lasting attachment to monolithic tempered glass. The patented Wedge-Lock® system secures the glass using two glass-retaining aluminum extrusions compressed by a flat stainless steel bar and socket head cap bolts. The angled extrusions engage the rail’s wedge groove to produce very high clamping force (over 900 lbs. in the 9" corner rail), delivering exceptional holding power across the full 35-3/4" rail length.

The Wedge-Lock® door rail provides fast installation and reliable field adjustment: rails ship fully fabricated with end caps installed and an assembled adjustable door alignment slide. Experienced installers can prepare a door in under ten minutes. The adjustable alignment system allows 1/8" (3 mm) in/out door adjustment on both top and bottom rails without removing the door; adjustment is made via three socket head cap bolts revealed after removing the end cap.

Key benefits and differentiators:

• High clamping force design for secure glass retention in commercial glass doors
• Rigid single-piece housing that resists shift and loss of adjustment over time
• Internal components remain in place during installation—no disassembly required
• Durable glass securing pads designed for longevity in extreme environments
• Built-in jamb alignment block for precise installation (arms and pivots ordered separately)
• Standard Kwik-Adjust™ Pivot Alignment System included; closer arms and floor/overhead pivots sold separately

Product notes: Actual product height: 10" (254 mm). Models with locks include the lock mechanism installed; keyed cylinders or thumbturns must be ordered separately. End caps included for stock lengths—specify door rail length (including end caps) when ordering custom rails.

CRL Wedge-Lock® Door Rails are available in standard architectural finishes and can be quoted in custom finishes. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail.

Stainless Steel Advisory: Stainless steel is corrosion-resistant but not impervious to staining or rust. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for
