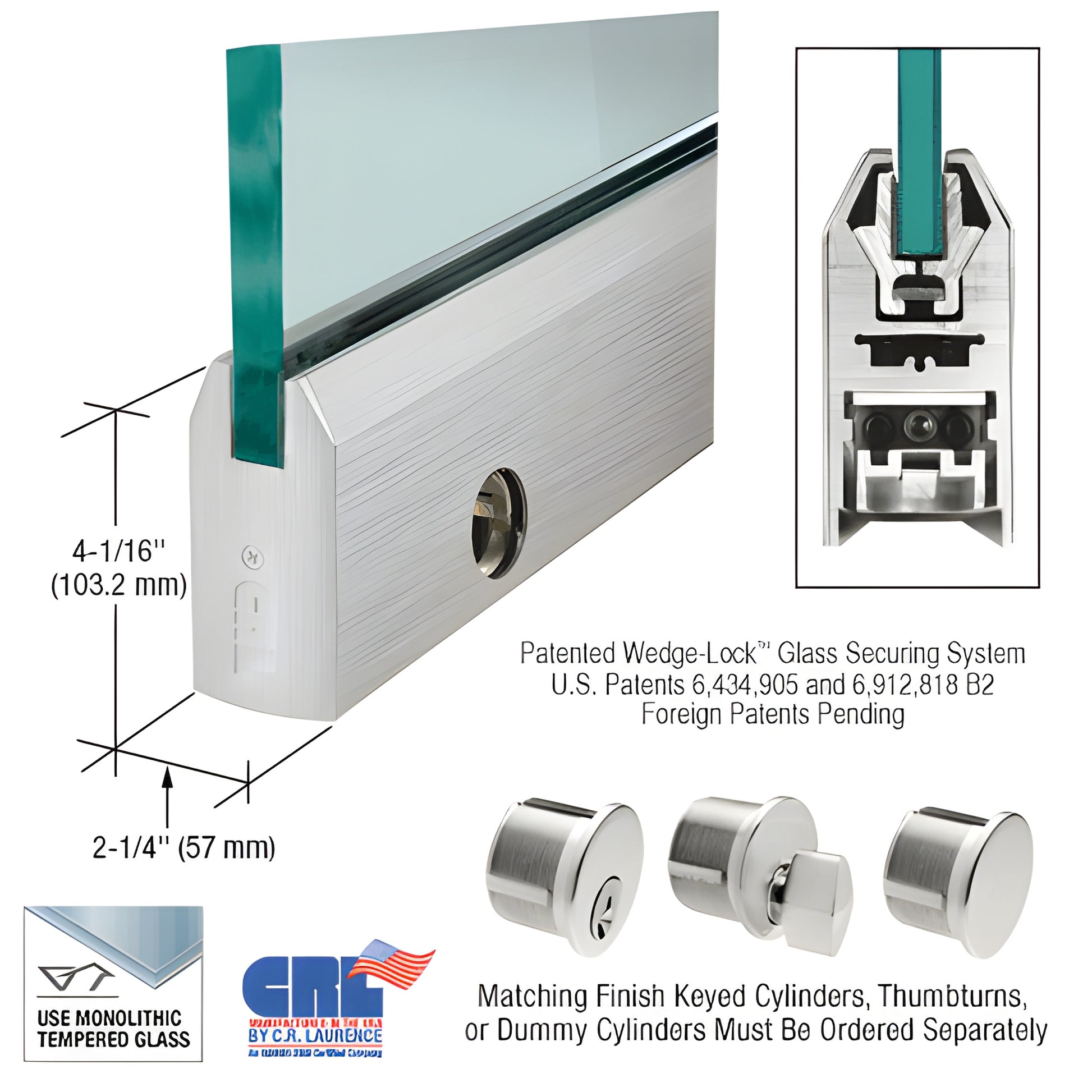

CRL 35-3/4" Brushed Stainless 5/8" Glass Tapered Door Rail w/ Lock

• 35-3/4" (908 mm) length for 5/8" (16 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (exclusive CRL design)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance product, the CRL Wedge-Lock® Door Rail System (SKU: DR4TBS58SL), features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, European Patent EP 1 404 939 B1). This wedge-style door rail secures glass by applying downward pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar—producing substantial holding force (over 900 lbs. in the 9" corner rail) and reliable long-term performance in full-length 35-3/4" rails.

NOTE: Actual product height: 4-1/16" (103 mm)

The Wedge-Lock® glass securing system delivers fast installation and reduced labor—the fastest door rail install time in its class. Rails come fully fabricated and ready-to-install with end caps installed. After mounting the rail, attach the door arm or pivot (not included) to the pre-assembled adjustable door alignment slide. The adjustable alignment slide (standard on both top and bottom rails) permits 1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door.

Access to adjustments is simple: remove the end cap to reveal three socket head cap bolts—center bolt locks the slide; two outer bolts adjust +/-1/8" (3.2 mm). The low-profile slide and slotted pivot grooves allow non-standard setback positions and fabrication for vertically out-of-square openings.

Key differentiators:

• Wedge-Lock® secures glass from the bottom for exceptional holding force and durability
• Rigid, single-component housing that resists shifting or loss of adjustment over time
• No internal component removal required before installation—reduces on-site labor
• Glass securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms and pivots must be ordered separately.

Finish and ordering: CRL Wedge-Lock® Door Rails are available in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail.
