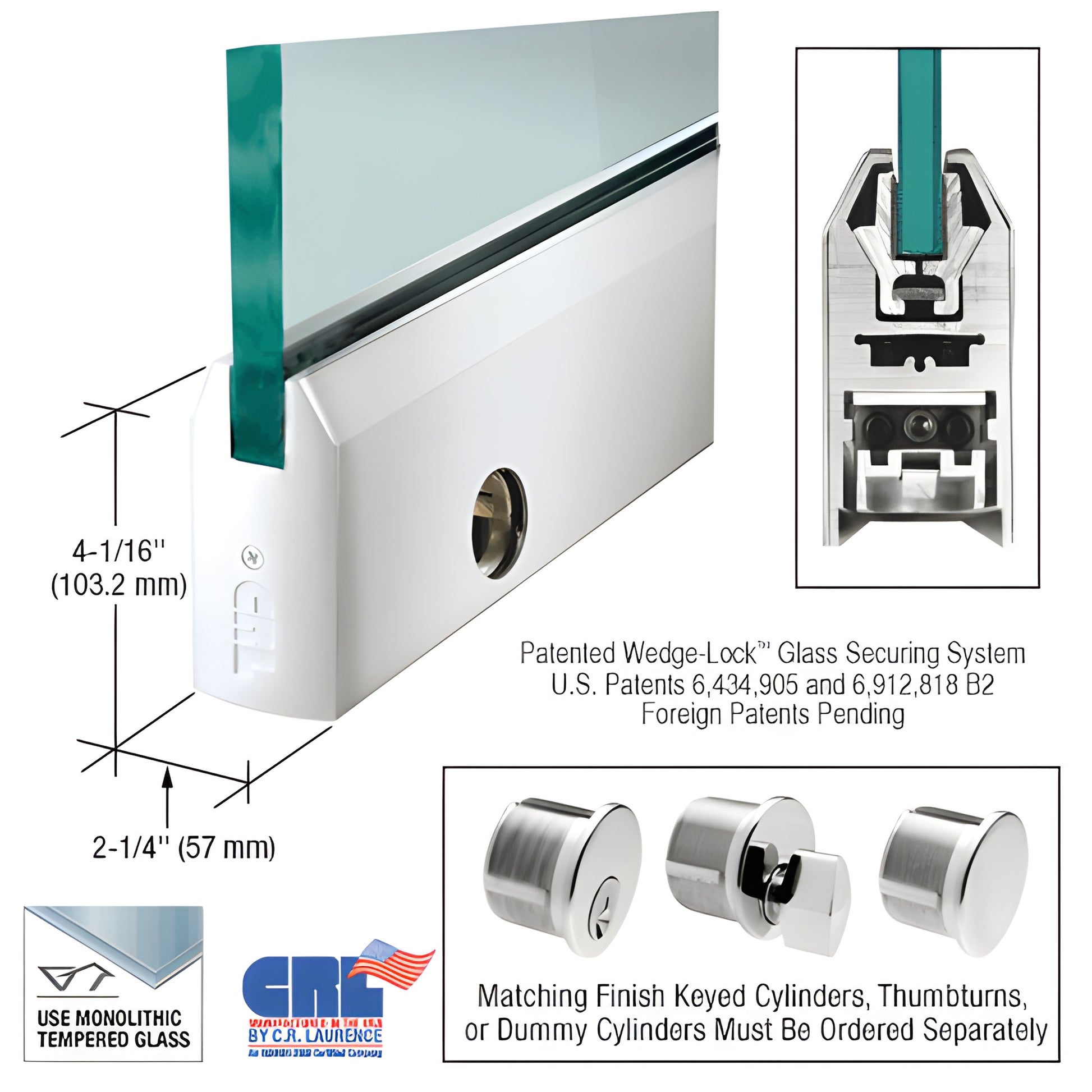

CRL Polished Stainless 5/8in Tapered Glass Door Rail w/ Lock 35.75in

• 35-3/4" (908 mm) Length for 5/8" (16 mm) Tempered Monolithic Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (U.S., Canadian & European patents)
• Models to Fit 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4TPS58SL) features the exclusive Wedge-Lock® Securing System. This patented, high-force glass securing method applies controlled pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar, producing exceptional retention in our rails (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). The design secures 5/8" tempered glass in a full-length 35-3/4" rail and delivers industry-leading holding force from the angled wedge action combined with a durable door retaining gasket.

NOTE: Actual Product Height: 4-1/16" (103 mm)

The Wedge-Lock® Glass Securing System is designed for fast installation and reliable performance. Experienced installers can prepare a door for installation in under ten minutes. CRL Wedge-Lock® Door Rails ship completely fabricated and ready-to-install with End Caps installed. After mounting the rail, attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide.

The standard Adjustable Door Alignment System (top and bottom rails) allows up to 1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door. To access adjustments, remove the End Cap to reveal three socket head cap bolts: the center bolt secures the slide; the outer bolts provide the 1/8" in/out adjustment. The low-profile slide and slotted pivot grooves permit positioning offset from the American Standard setback for vertically out-of-square openings.

Other benefits of Wedge-Lock® Door Rails include:

• Models to accept 3/8" to 3/4" (10–19 mm) glass
• Rigid single-component housing that resists shift and long-term adjustment loss
• Internal components remain assembled for quick installation
• Durable glass securing pads engineered for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in Jamb Alignment Block. Arms and pivots must be ordered separately to meet job requirements.
<
