CRL Polished Stainless Glass Door Rail 5/8in 4in 35-3/4in No Lock

• 35-3/4" (908 mm) Length for 5/8" Glass (16 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

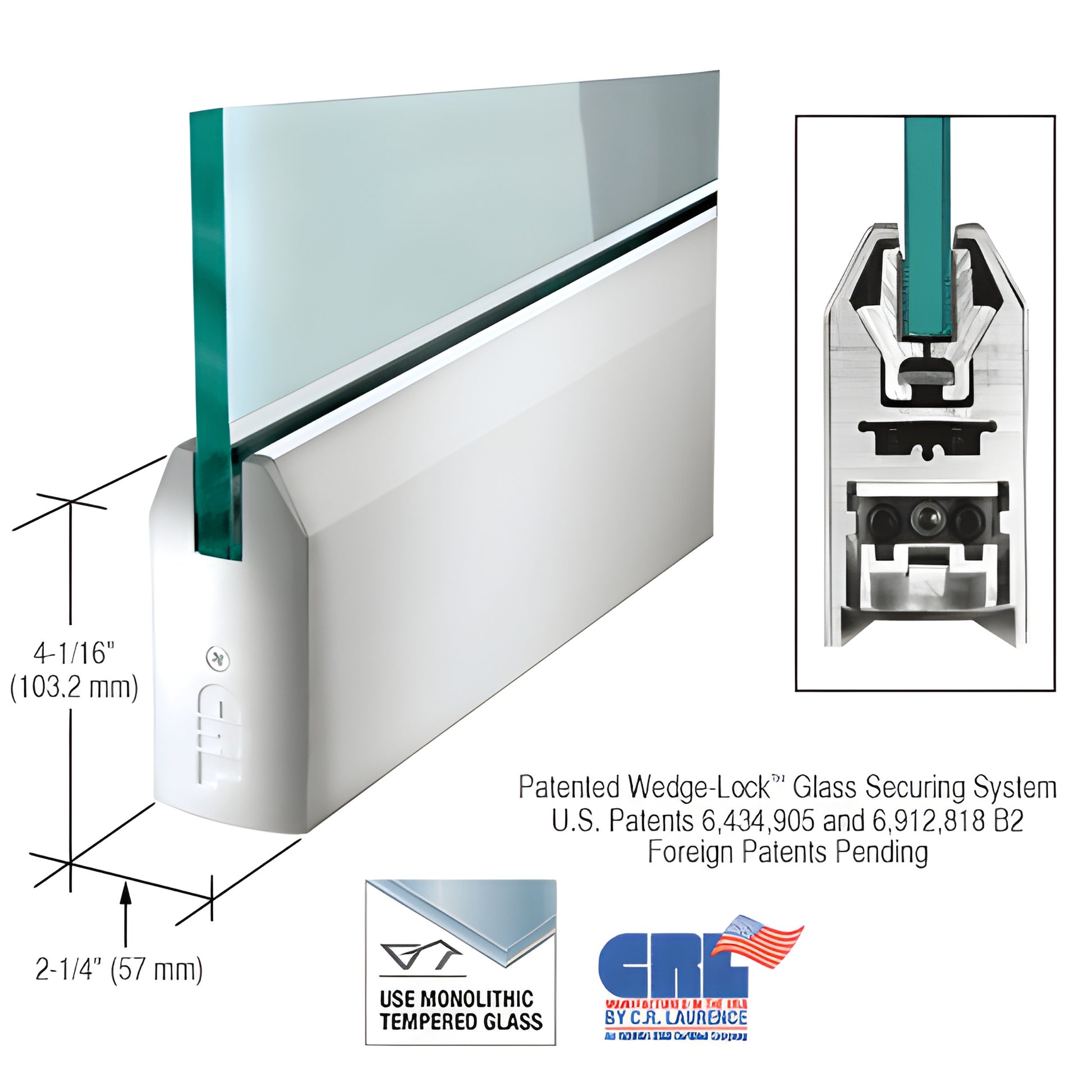

Our glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4TPS58S), uses the exclusive patented Wedge-Lock® Securing System (U.S. Patents 6,434,905; 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for tempered glass doors, this wedge-action system secures glass by applying downward pressure via two aluminum glass-retaining extrusions and a stainless steel flat bar tightened with socket head cap bolts. The angled extrusions seat into an angled groove in the rail, creating high clamping force (over 900 lbs. in the 9" corner rail) for exceptional hold along the full 35-3/4" (908 mm) rail.

NOTE: Actual Product Height: 4-1/16" (103 mm)

The Wedge-Lock® system delivers fast, reliable installation for commercial tempered glass door rails. Fully fabricated and shipped ready-to-install with end caps installed, rails require only attachment of the door arm or pivot (not included) to the preassembled adjustable door alignment slide. The Adjustable Door Alignment System provides ±1/8" (3.2 mm) adjustment toward or away from the jamb on both top and bottom rails—no door removal required.

Access to adjustments is simple: remove the end cap to reveal three socket head cap bolts. The center bolt secures the slide; the two outer bolts adjust the slide 1/8" (3.2 mm) in or out. The low-profile slide allows pivots with slotted grooves to be positioned away from the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Key differentiators and long-tail features:

• High-clamp Wedge-Lock® design for secure attachment of 3/8"–3/4" glass in tempered glass doors
• Rigid single-component rail housing—won't shift or fall out of adjustment over time
• Internal components remain installed during shipping and installation—faster field fit-up
• Durable glass-securing pads for longevity in extreme environments
• Standard Kwik-Adjust™ Pivot Alignment System; arms, pivots, closer arms, and keyed cylinders sold separately
• Available in several architectural finishes; custom finishes and widths quoted on request
