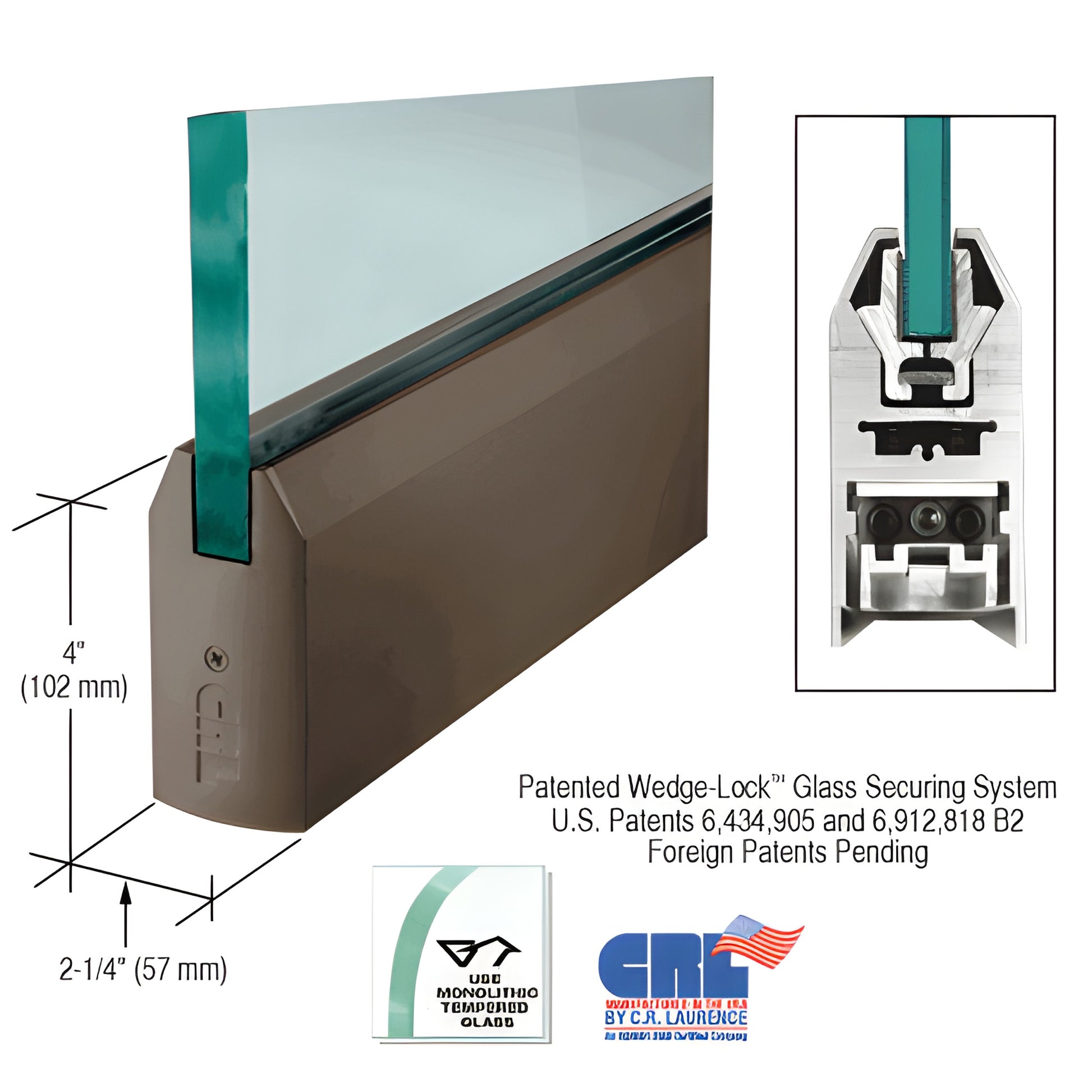

CRL Black Bronze 4in Tapered Door Rail 35-3/4in for 5/8in Glass - No Lock

• 35-3/4" (908 mm) length for 5/8" (16 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System (U.S., Canadian & European patents)
• Models accept 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

SKU: DR4TDU58S

Our CRL Wedge-Lock® Door Rail System features the exclusive patented Wedge-Lock® securing method—a commercial glass door rail system that secures glass from the bottom using two aluminum glass-retaining extrusions and a flat stainless steel bar. Tightening socket-head cap bolts pulls the bar down; angled extrusions engage an angled groove in the rail to create strong clamping force (over 900 lbs. in the 9" corner rail), providing superior hold in full-length 35-3/4" rails.

Note: Actual product height: 4-1/16" (103 mm)

Designed for rapid installation, the Wedge-Lock® system delivers the fastest install time of any door rail on the market—experienced installers can prepare a door in under ten minutes. Rails ship fully fabricated and ready-to-install with end caps pre-installed. After mounting, attach the door arm or pivot (not included) to the adjustable door alignment slide already installed in the rail.

The standard adjustable door alignment system (top and bottom rails) allows ±1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door. To access adjustments, remove the end cap to reveal three socket-head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide in or out.

Key differentiators:

• Patented Wedge-Lock® glass securing—single-component, rigid housing that resists shifting over time
• Fast installation and minimal on-site component removal
• Durable glass securing pads for extreme environments
• Adjustable slide and low-profile pivots allow non-standard setbacks and vertical out-of-square fabrication
• Models to accept a wide range of glass thicknesses (3/8"–3/4") for commercial storefronts and interior glass doors

Note: All Wedge-Lock® Door Rails include a built-in jamb alignment block; arms, pivots, closer arms, and keyed cylinders or thumbturns must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are available in several standard finishes and can be quoted in custom finishes
