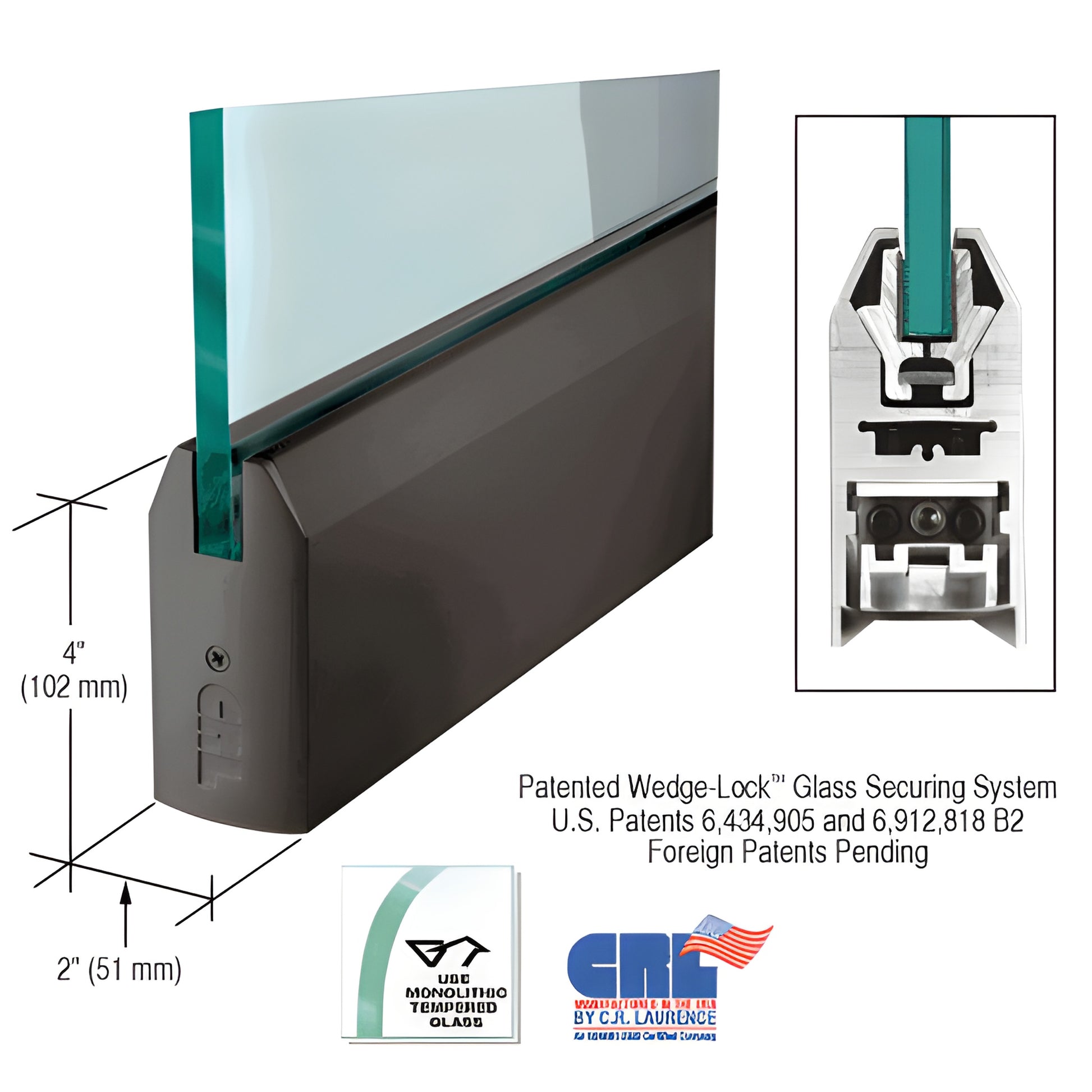

CRL 35-3/4" Tapered Door Rail for 3/8" Glass, 4" Black Bronze w/o Lock

• 35-3/4" (908 mm) Length for 3/8" Glass (10 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Product: CRL Wedge-Lock® Door Rail System (SKU: DR4TDU38S)

Overview: The CRL Wedge-Lock® Door Rail is an innovative glass door rail system designed for monolithic tempered glass doors. The patented Wedge-Lock® Securing System (U.S. Patents 6,434,905; 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) secures the glass by applying downward pressure through two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled wedges pull the extrusions together, producing exceptional clamping force (over 900 lbs. in the 9" corner rail), and providing a highly secure tempered glass door mounting for commercial entrances.

Key Differentiators:

• High clamping force via patented Wedge-Lock® geometry for secure tempered glass installation
• Fastest installation time among commercial door rails — experienced installers can prepare a door in under 10 minutes
• Completely fabricated and ready-to-install with End Caps preinstalled
• Adjustable Door Alignment Slide standard on top and bottom rails — allows 1/8" (3.2 mm) in-or-out adjustment without removing the door
• Rigid single-component housing that resists shifting and maintains alignment over time
• Internal components remain in place during installation; glass securing pads designed for long life in extreme environments

Dimensions & Notes:

• Actual Product Height: 4-1/16" (103 mm)
• Rail length shown: 35-3/4" (908 mm) for 3/8" glass
• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass

Installation Highlights:

• Rails ship with End Caps installed; after rail installation, attach door arm or pivot to the adjustable alignment slide (arms/pivots not included)
• To adjust the door after installation, remove the End Cap to access three socket head cap bolts: center bolt locks the slide; outer bolts adjust the slide 1/
