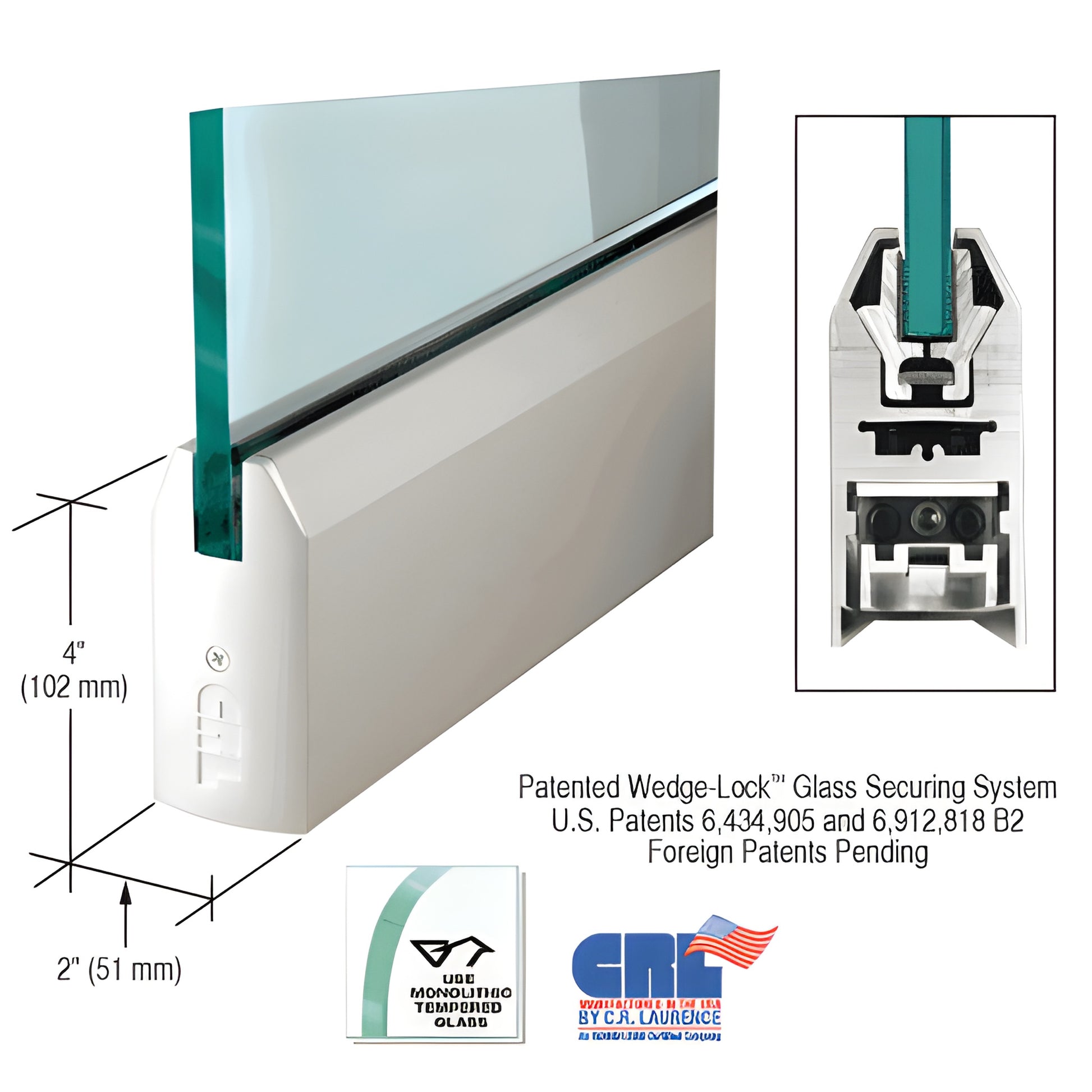

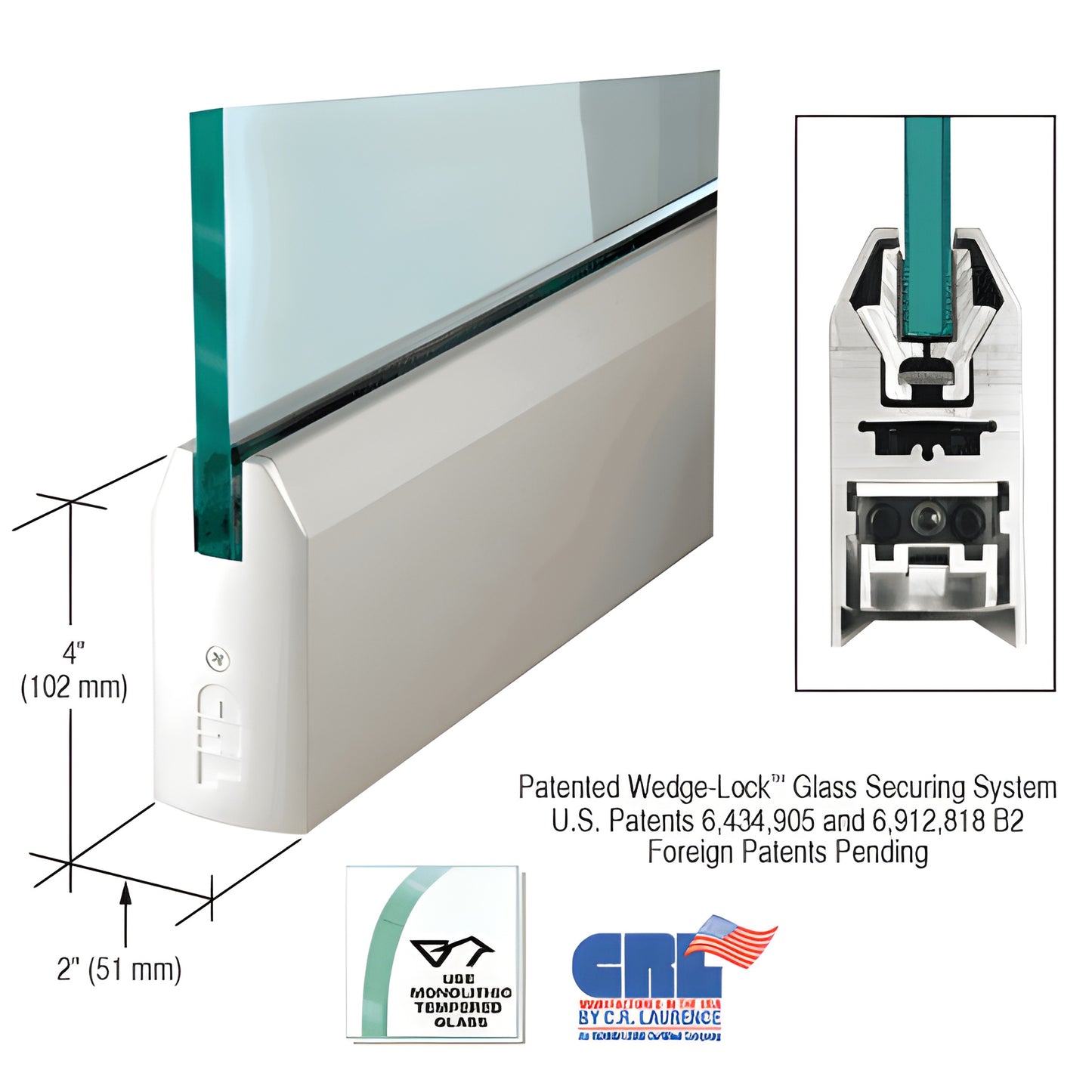

CRL 35-3/4" Satin Anodized 4" Tapered Rail for 3/8" Glass - No Lock

• 35-3/4" (908 mm) length for 3/8" glass (10 mm)
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

CRL Wedge-Lock® Door Rail System (SKU: DR4TSA38S) is an innovative glass door rail engineered for secure, fast installation in commercial and architectural glass entrances. The exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) clamps the glass by applying downward pressure via two retaining aluminum extrusions and a flat stainless steel bar, producing high holding force (over 900 lbs. in the 9" corner rail).

Actual product height: 4-1/16" (103 mm).

Key benefits and differentiators:

• Fastest installation of any door rail system — experienced installers can prepare a door in under 10 minutes.
• Completely fabricated and ready-to-install out of the carton with end caps installed.
• Adjustable Door Alignment System (standard top and bottom) allows ±1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door.
• Low-profile adjustable slide supports pivots in non-standard setbacks for vertically out-of-square openings.
• Rigid single-component housing resists shifting and stays in adjustment over time (not two-piece construction).
• Internal components do not require removal before installation; glass securing pads are designed for longevity in extreme environments.
• Built-in jamb alignment block included; arms, pivots, closer arms and keyed cylinders/thumbturns are ordered separately to meet job requirements.

Ordering and finishes: available in several standard architectural finishes with custom finishes and widths quoted upon request. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail.

Ordering notes:

• All door rails supplied with standard Kwik-Adjust™ pivot alignment system; closer arms and floor or overhead pivots must be ordered separately.
• Models with locks are supplied with the lock mechanism installed;
