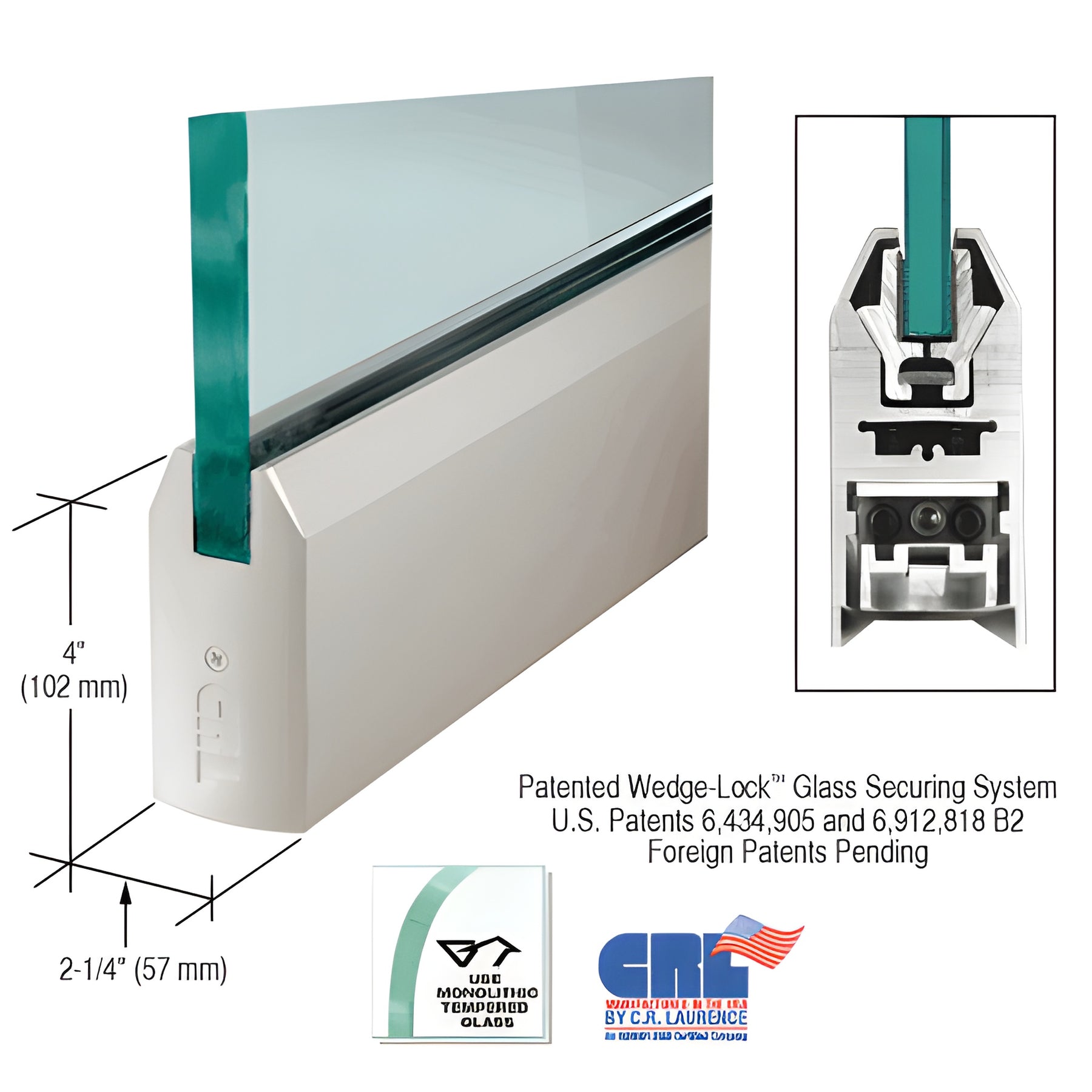

CRL Satin Anodized 5/8" Glass Tapered Door Rail 4" x 35-3/4" No Lock

• 35-3/4" (908 mm) length for 5/8" (16 mm) tempered glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian & European patents)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, is a high-performance door rail designed for commercial glass doors and storefronts. The exclusive Wedge-Lock® Securing System uses two glass-retaining aluminum extrusions and a flat stainless steel bar tightened with socket head cap bolts. As the bar is pulled down, angled wedges draw the extrusions together and compress the door-retaining gasket, producing extremely high clamping force (over 900 lbs. in the 9" corner rail) for secure, long-lasting attachment in full-length 35-3/4" rails.

NOTE: Actual product height: 4-1/16" (103 mm)

Key benefits and differentiators:

• Fast installation: experienced installers can prepare a door in under ten minutes — the fastest door-rail installation method available.
• Comes factory-fabricated and ready-to-install with end caps installed.
• Adjustable Door Alignment System (standard on top and bottom rails) — adjust door 1/8" (3.2 mm) toward or away from jamb without removing the door.
• Low-profile adjustable slide allows pivot placement off the American Standard setback (useful for vertically out-of-square openings).
• Rigid single-component housing resists shifting or loss of adjustment over time (not two-piece construction).
• Internal components stay in place during installation; glass-securing pads are designed for longevity in extreme environments.

After rail installation, attach the door arm or pivot (not included) to the preassembled adjustable alignment slide. To fine-tune door alignment after hanging, remove the end cap to access three socket head cap bolts: center bolt secures the adjustable slide, outer bolts adjust ±1/8" (3.2 mm). All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms and pivots must be ordered separately.

CRL Wedge-Lock® Door Rails are offered in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:
• All door rails include the standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead
