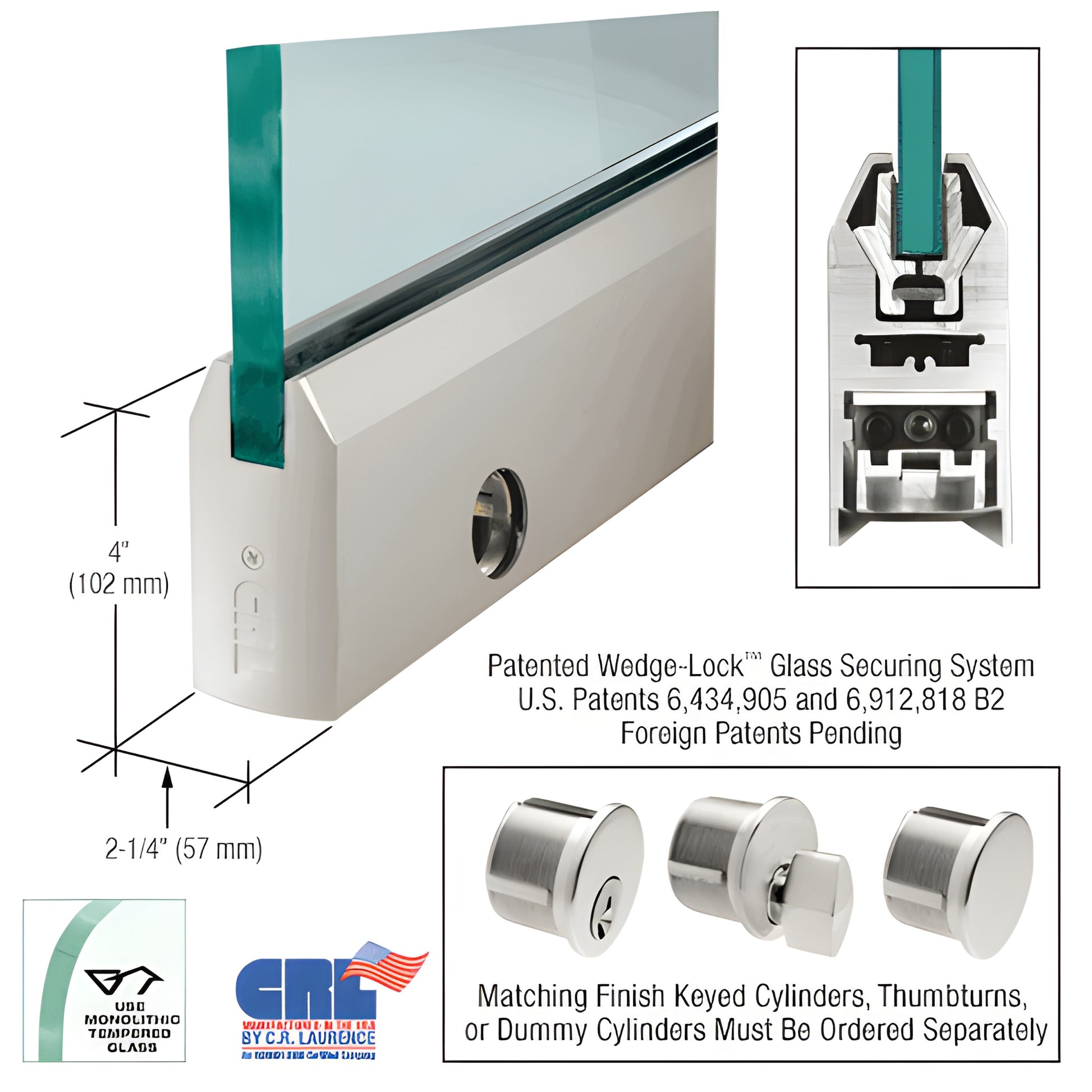

CRL Satin Anodized 5/8" Glass Tapered Door Rail with Lock, 35-3/4"

• 35-3/4" (908 mm) Length for 5/8" Glass (16 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance system, the CRL Wedge-Lock® Door Rail System (SKU: DR4TSA58SL), features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1). Designed for commercial and architectural glass doors, this door rail provides a secure, high-strength glass mounting solution for 5/8" tempered glass and other monolithic tempered glass applications.

The Wedge-Lock® system secures the glass by applying downward pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar tightened with socket head cap bolts. The angled extrusions engage an internal wedge groove in the rail so the assembly pulls the extrusions together, generating exceptionally high clamping force (more than 900 lbs. in our 9" corner rail). That translate to reliable, durable performance across the full 35-3/4" (908 mm) rail length.

NOTE: Actual product height: 4-1/16" (103 mm).

Key benefits and differentiators:

• Fastest installation time among commercial door rails — experienced installers can prepare a door in under 10 minutes
• Comes fully fabricated and ready-to-install with end caps installed
• Adjustable Door Alignment System (standard top and bottom) provides ±1/8" (3.2 mm) adjustment toward/away from the jamb without removing the door
• Low-profile adjustable slide allows pivot placement other than the American Standard setback for out-of-square openings
• Rigid single-component housing resists shift and long-term adjustment drift (not two-piece construction)
• Internal components do not require removal prior to installation
• Durable glass-securing pads designed for longevity in extreme environments

After installation, remove the end cap to access three socket head cap bolts: center bolt secures the adjustable slide; outer bolts provide the 1/8" adjustment in or out. All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are offered in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.
