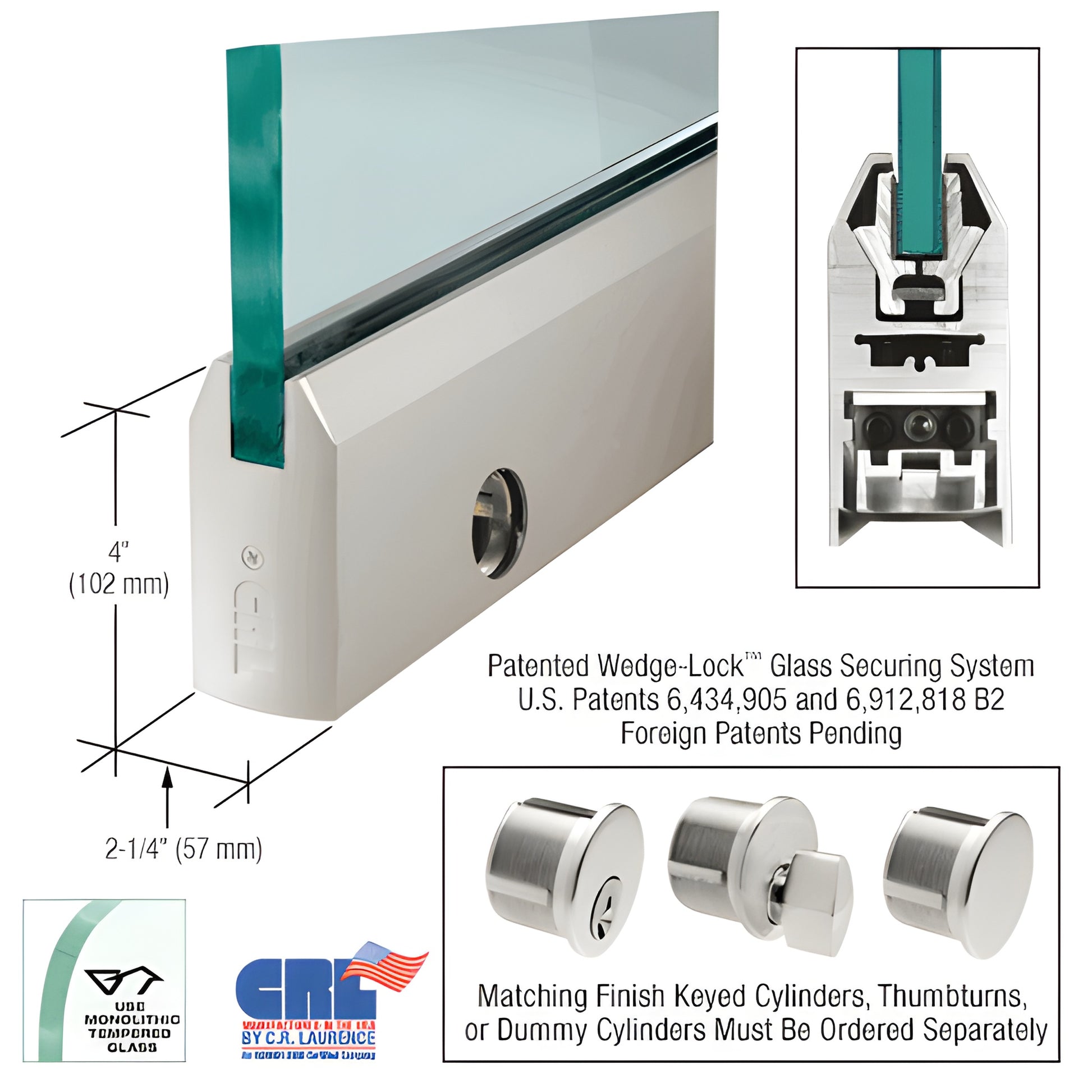

CRL Satin Anodized Aluminum 3/4" Glass Door Rail 35-3/4" w/ Lock

• 35-3/4" (908 mm) length for 3/4" (19 mm) glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (high-retention, single‑component housing)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, uses the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). The Wedge-Lock® design secures glass by applying downward pressure with two glass-retaining aluminum extrusions and a flat stainless steel bar tightened with socket head cap bolts. Angled extrusions seat into a matching angled groove in the rail so the wedge action pulls the retaining pieces together, producing exceptionally high holding force (over 900 lbs. in the 9" corner rail). This same wedge principle scales across the full 35-3/4" (908 mm) door rail for dependable, long-lasting retention.

NOTE: Actual product height: 4-1/16" (103 mm)

Key benefits and differentiators:

• Fastest installation time among competitive door rail systems — experienced installers can prepare a door in under ten minutes
• Comes completely fabricated and ready-to-install with end caps installed
• Adjustable Door Alignment System standard top and bottom — allows ±1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door
• Low-profile adjustable slide enables non-standard pivot setback positions and fabrication for vertically out-of-square openings
• Rigid single-component housing resists shift and loss of adjustment over time (not made of two halves)
• Internal components remain installed during rail installation; glass securing pads designed for longevity in extreme environments
• Built-in jamb alignment block standard; arms and pivots must be ordered separately

After installation, remove the end cap to access three socket head cap bolts: center bolt secures the adjustable slide; outer bolts provide 1/8" (3.2 mm) in/out adjustment.

CRL Wedge-Lock® Door Rails are offered in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

Ordering information:

• All door rails include the standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead pivots must be ordered separately.
• Models with
