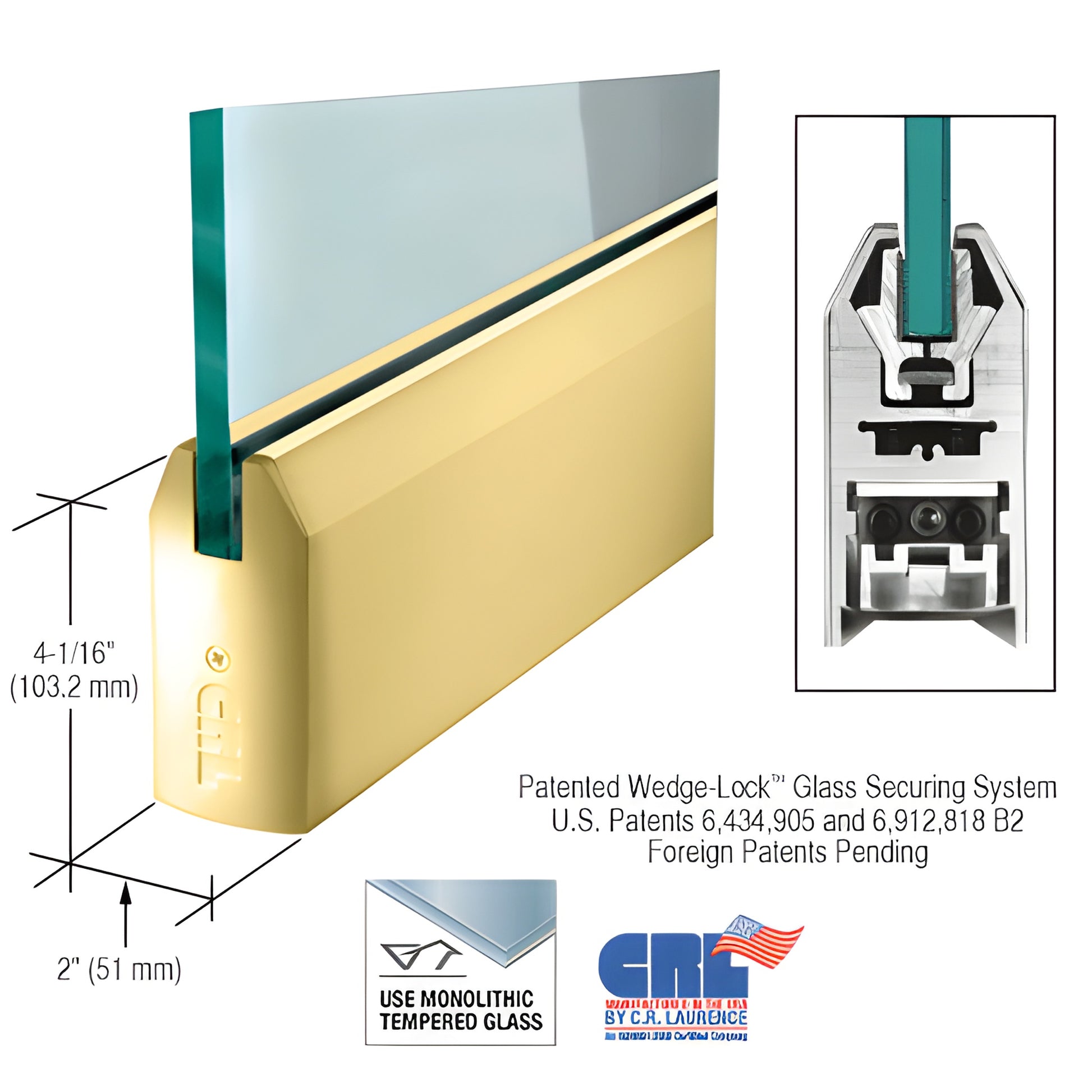

CRL Polished Brass 35-3/4" Tapered Frameless Glass Door Rail (No Lock)

• 35-3/4" (908 mm) length for 3/8" glass (10 mm)
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian, European patents)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4TPB38S) features the exclusive CRL Wedge-Lock® Securing System. This patented door rail for tempered glass applies downward wedge pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar, creating exceptional clamping force (over 900 lbs. in the 9" corner rail). The same wedge action is used across the full-length 35-3/4" (908 mm) rails for secure, durable glass retention in commercial glass doors.


NOTE: Actual product height: 4-1/16" (103 mm)

The Wedge-Lock® Glass Securing System delivers fast installation and reliable performance. Experienced installers can prepare a door in under ten minutes. CRL Wedge-Lock® Door Rails ship completely fabricated and ready-to-install with end caps installed. After setting the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The integrated Adjustable Door Alignment System lets you fine-tune the door 1/8" (3.2 mm) toward or away from the jamb without removing the door. This feature is standard on both top and bottom rails. To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt secures the adjustable slide, and the outer bolts adjust it 1/8" (3.2 mm) in or out. The low-profile slide allows pivot placement other than the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Other reasons to choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10–19 mm) glass
• One-piece rigid housing that resists shift and loss of adjustment over time
• Internal components remain in place during installation — no pre-removal required
• Durable glass securing pads for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are available in multiple standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.<
