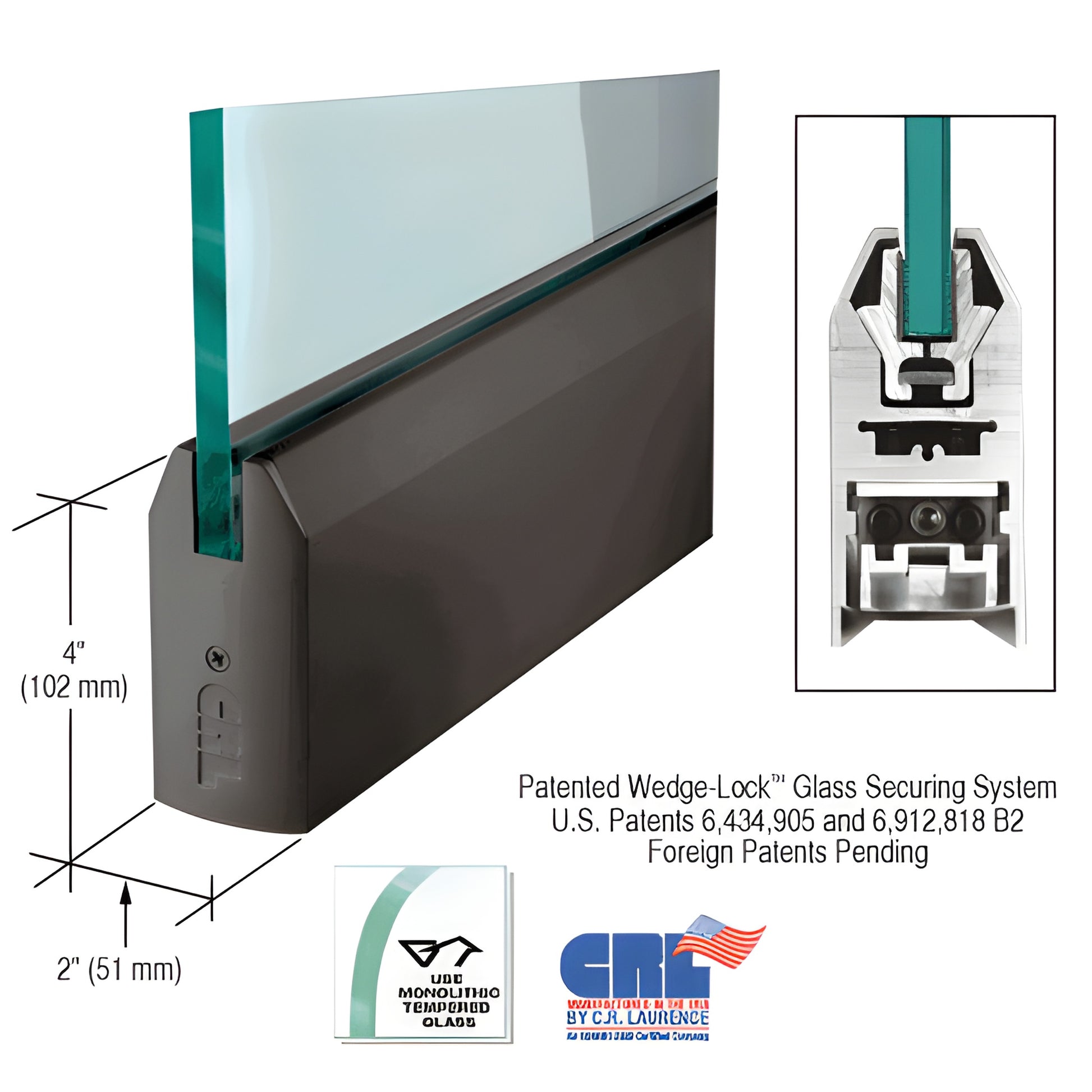

CRL Black Bronze Tapered Door Rail 1/2" Glass 35-3/4" No Lock

• 35-3/4" (908 mm) length for 1/2" (12 mm) monolithic tempered glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (CRL Patents)
• Models to fit from 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance product, the CRL Wedge-Lock® Door Rail System (SKU: DR4TDU12S) uses the exclusive Wedge-Lock® Securing System to clamp glass securely from the bottom of the rail. The assembly employs two glass-retaining aluminum extrusions compressed by a flat stainless steel bar and socket head cap bolts. The angled extrusions seat in an angled groove in the door rail so the wedge action pulls the extrusions together, producing very high retention force — more than 900 lbs. in our 9" (228.6 mm) corner rail and proportionally greater force in the full 35-3/4" (908 mm) rail. This makes the system an industry-leading solution for secure glass door rails and heavy-duty glass entry systems.

NOTE: Actual product height: 4-1/16" (103 mm)

The Wedge-Lock® system delivers fast, reliable installation for commercial glass doors. Experienced installers can prepare a door for installation in under ten minutes. CRL Wedge-Lock® Door Rails arrive fully fabricated and ready-to-install with end caps installed. After rail installation, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

Key features:

• Adjustable Door Alignment System — +/- 1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door; standard on top and bottom rails
• Low-profile adjustable slide allows pivots to be moved off standard American setback (2-3/4" / 69.8 mm) for out-of-square openings
• Rigid single-component housing — resists shifting or loss of adjustment over time
• Internal components remain in place during installation — no component removal required
• Durable glass securing pads designed for longevity in extreme environments
• Models accept 3/8" to 3/4" (10–19 mm) glass
• Built-in Jamb Alignment Block — arms and pivots ordered separately

To adjust the door after installation, remove the end cap to access three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide 1/8" (3.2 mm) in or out.
