CRL Polished Stainless Tapered Door Rail 1/2" Glass 35-3/4" No Lock

• 35-3/4" (908 mm) length for 1/2" (12 mm) monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System (fast installation, high retention)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks; matching sidelite rails available

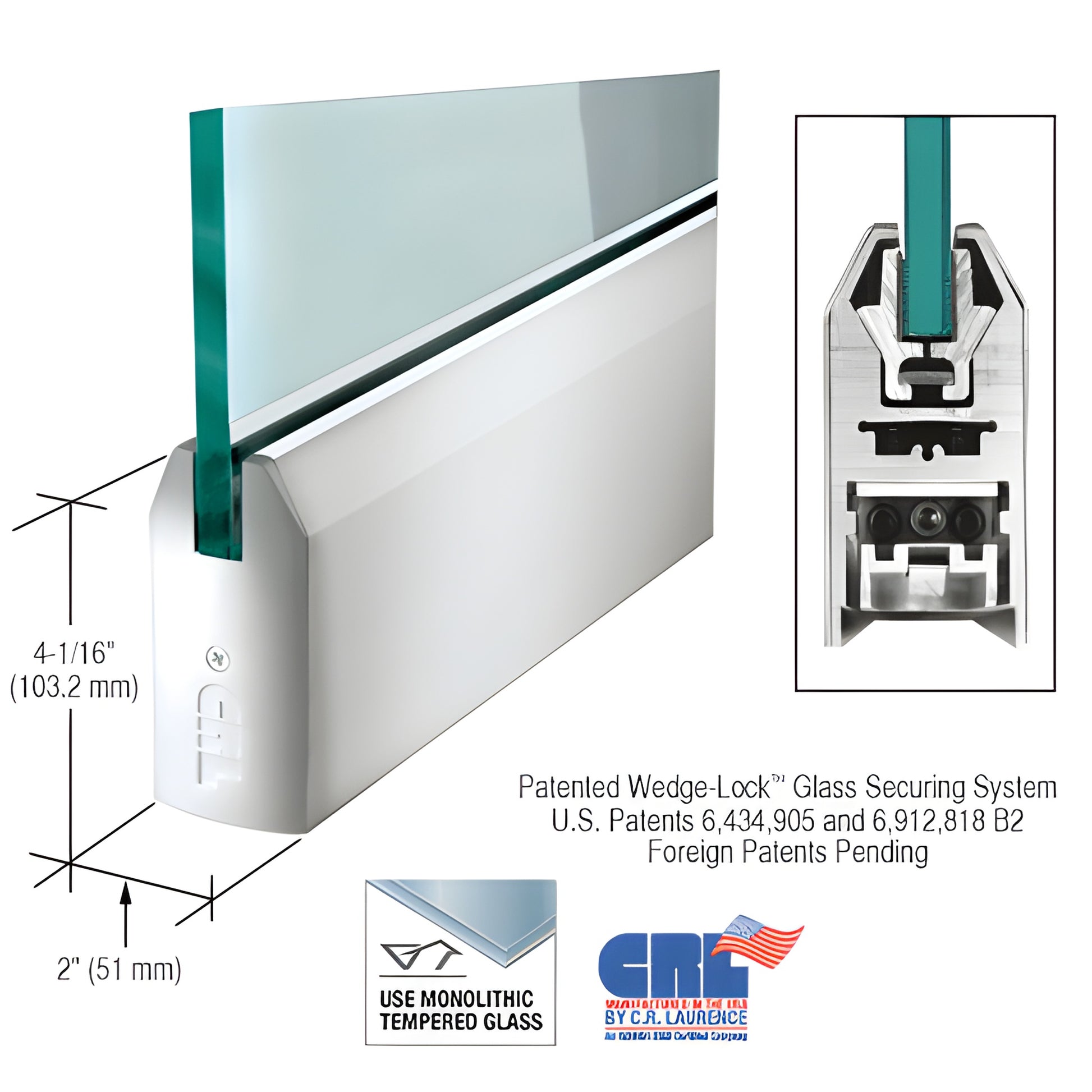

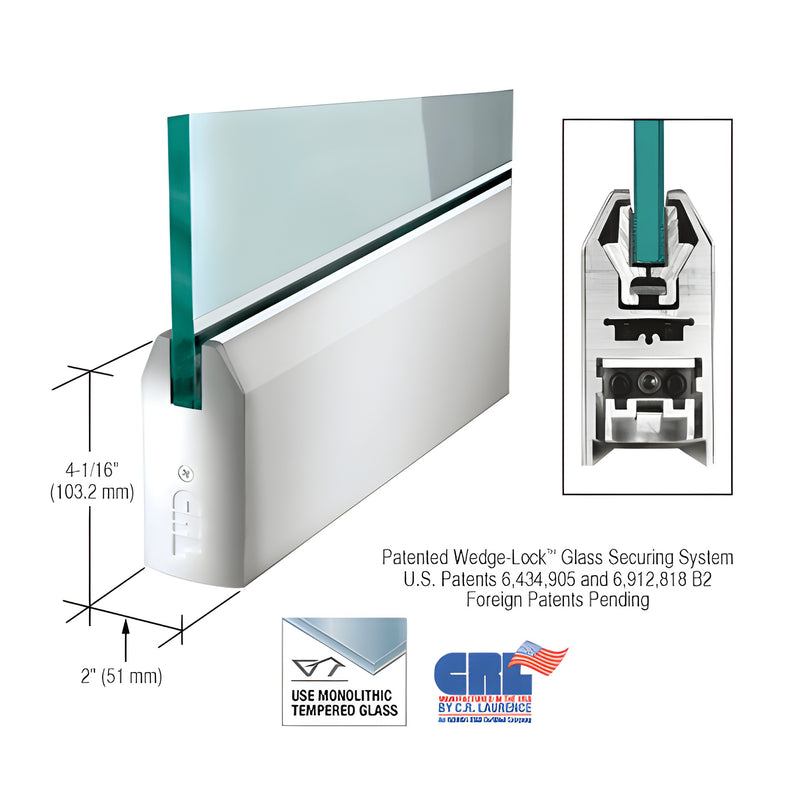

Our CRL Wedge-Lock® Door Rail System (SKU: DR4TPS12S) is a glass door rail engineered for secure, fast installation on 1/2" tempered glass. The patented Wedge-Lock® Securing System uses two glass-retaining aluminum extrusions and a flat stainless steel bar to apply downward wedge pressure into an angled groove, producing very high retention force (over 900 lbs. in the 9" corner rail). This design creates a rigid, single-component housing that resists shifting and stays in adjustment over time.

Key benefits:

• Fast install: experienced installers can prepare a door in under ten minutes — ideal for commercial glass door installations
• Adjustable Door Alignment System: +/-1/8" (3.2 mm) adjustment on both top and bottom rails with no door removal
• Ready-to-install: rails come fabricated with end caps installed; adjustable slide and Kwik-Adjust™ pivot alignment are assembled
• Internal components remain in place during installation; glass securing pads designed for long service life in extreme environments

Notes & ordering:

• Actual product height: 4-1/16" (103 mm)
• All rails include the built-in jamb alignment block; arms, pivots, closer arms, and keyed cylinders/thumbturns must be ordered separately
• Models with locks include the lock mechanism only; matching finish cylinders or thumbturns sold separately
• Custom lengths and finishes available — specify rail length including end caps when ordering
• Rail specifications, templates and hardware packages available from CRL Technical Sales via e-mail

Product warning:
Comes standard with jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.

Stainless Steel Advisory:
