CRL Matte Black 35-3/4" Tapered Door Rail 1/2" Glass No Lock

• Custom Length for 3/8" Glass (10 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4TMBL12S) is engineered for tempered glass doors and features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1). The wedge-lock design secures glass using two aluminum retaining extrusions compressed by a flat stainless steel bar. As the bar is tensioned with socket head cap bolts, angled extrusions engage an angled groove in the rail, producing very high clamping force (more than 900 lbs. in our 9" Corner Rail) for reliable glass retention in 3/8" to 3/4" glass entrance doors.

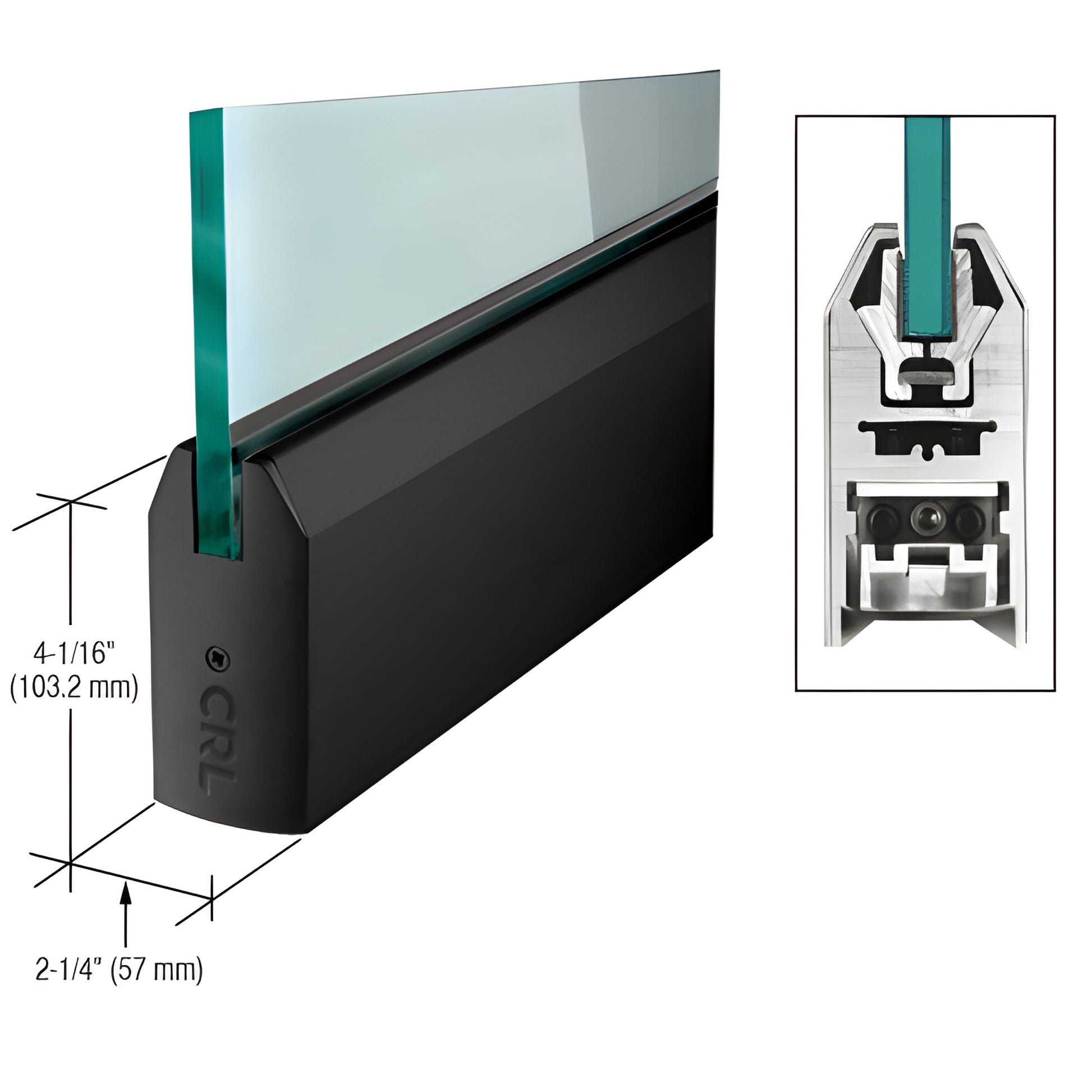

NOTE: Actual Product Height: 4-1/16” (103 mm)

Key differentiators:

• Fast installation for commercial glass doors—experienced installers can prepare a door in under ten minutes.
• Comes fully fabricated with End Caps installed; ready-to-install door rails reduce on-site labor.
• Adjustable Door Alignment Slide (standard top and bottom) provides ±1/8" (3.2 mm) adjustment without removing the door—ideal for out-of-square openings.
• Rigid single-component housing resists shifting or loss of adjustment over time (not two-piece construction).
• Internal components remain installed during installation; glass securing pads are designed for longevity in extreme environments.

After installation, remove the End Cap to access three socket head cap bolts: the center bolt locks the adjustable slide; the outer bolts provide the 1/8" (3.2 mm) in/out adjustment. The low-profile slide allows pivots with slotted grooves to be positioned other than the American Standard Setback (2-3/4" / 69.8 mm).

NOTE: All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block; arms and pivots must be ordered separately to meet job requirements.

Finishes, specifications and templates: CRL Wedge-Lock® Door Rails are available in several standard architectural finishes and can be quoted in custom finishes and widths. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail.
