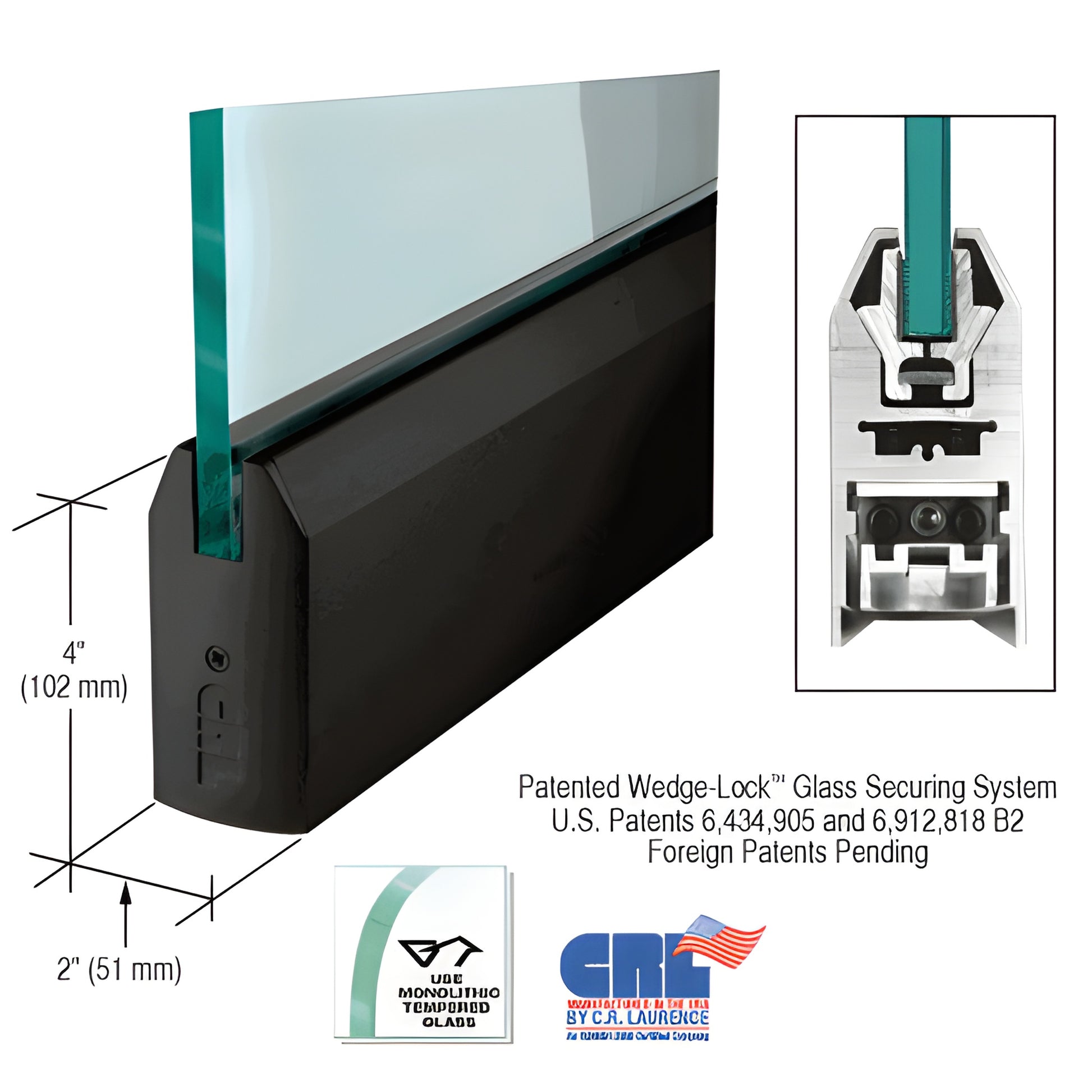

CRL Black Powder-Coat 4" Tapered Door Rail 1/2" Glass 35-3/4" No Lock

• 35-3/4" (908 mm) length for 1/2" (12 mm) monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian & European patents)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks; matching sidelite rails available

Our innovative glass entrance component, the CRL Wedge-Lock® Door Rail System, uses the patented Wedge-Lock® Securing System to clamp glass securely via two aluminum glass-retaining extrusions and a stainless steel pressure bar. As the bar is tightened with socket head cap bolts, angled extrusions engage an angled groove in the rail to generate extremely high clamping force (over 900 lb. in our 9" corner rail), producing exceptional hold along the full 35-3/4" (908 mm) door rail. SKU: DR4TBL12S.

Product height: 4-1/16" (103 mm).

Key benefits and differentiators:

• Fast installation — experienced installers can prepare a door in under 10 minutes
• Comes fully fabricated and ready-to-install with end caps installed
• Adjustable Door Alignment System (standard top & bottom): +/- 1/8" (3.2 mm) without removing the door
• Low-profile adjustable slide allows non‑standard pivot setbacks and vertical out‑of‑square adjustments
• Rigid single-component housing that resists shifting or loss of adjustment over time
• Internal components remain in place during installation; durable glass-securing pads for extreme environments
• Built-in jamb alignment block (arms/pivots ordered separately)

Installation & adjustment notes: After installing the rail, attach the door arm or pivot (not included) to the pre-assembled adjustable alignment slide. Remove the end cap to access three socket head cap bolts: center bolt secures the slide; outer bolts adjust the slide 1/8" (3.2 mm) in or out.

Ordering information:

• All door rails supplied with standard Kwik-Adjust™ Pivot Alignment System; closer arms and floor/overhead pivots are ordered separately
• Models with locks include the lock mechanism; matching finish keyed cylinders or thumbturns are ordered separately
• End caps included in stock door rail lengths; specify full door rail length (including end caps) for custom lengths

Finishes, specs and technical resources: CRL Wedge-Lock® Door Rails come in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates and hardware packages are available from CRL Technical Sales via
