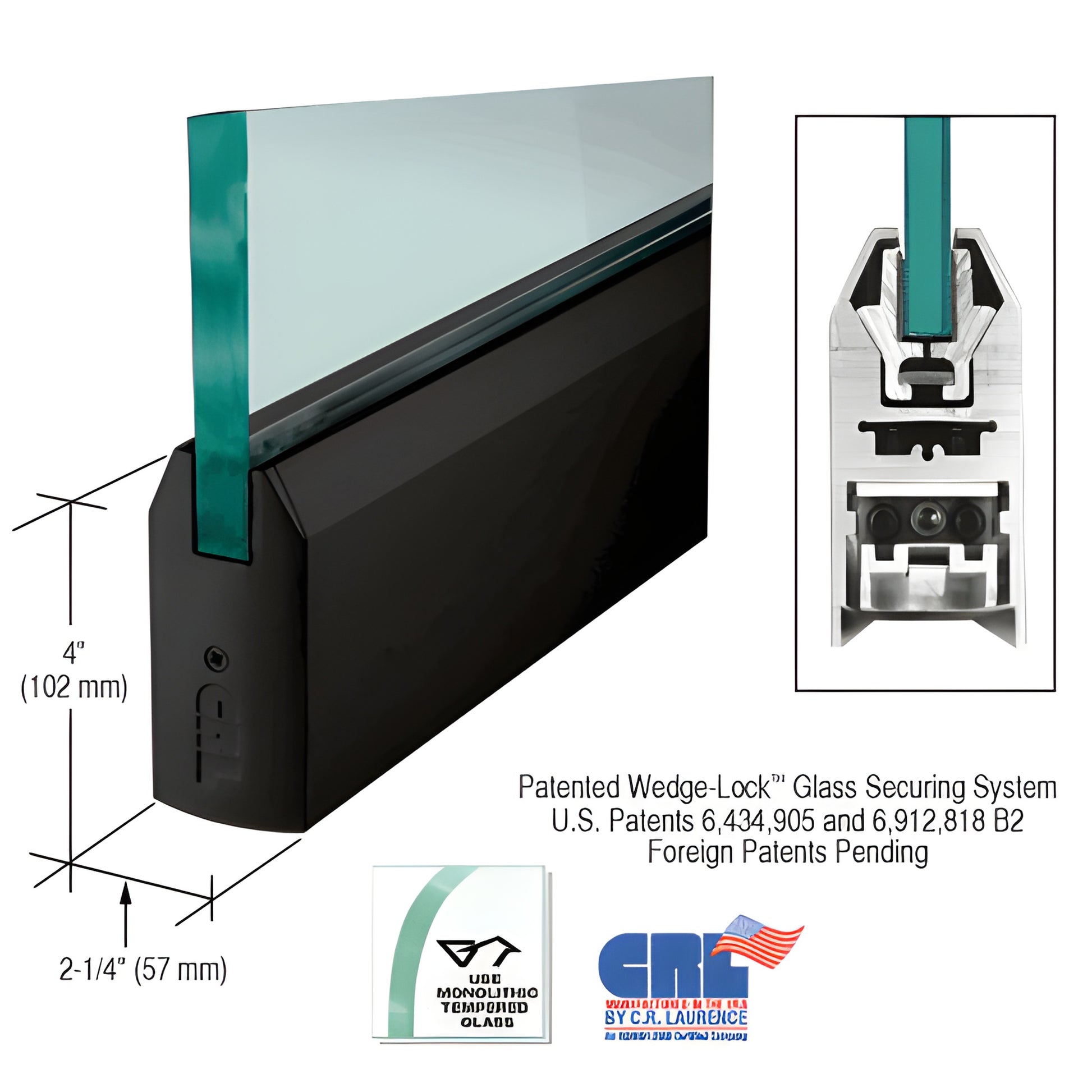

CRL Black Powder-Coated 3/4" Glass 4" Tapered Door Rail, 35-3/4" No Lock

• 35-3/4" (908 mm) Length for 3/4" Glass (19 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4TBL34S), is a high-performance glass door rail system engineered for commercial and architectural glass doors. The exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) applies downward pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled extrusions wedge together in the rail groove and, along with a specially designed door-retaining gasket, generate very high clamping force (more than 900 lbs. in the 9" corner rail). This design secures monolithic tempered glass and delivers exceptional long-term stability for full-length 35-3/4" door rails.

NOTE: Actual Product Height: 4-1/16" (103 mm)

The Wedge-Lock® system is optimized for fast installation and reliable performance. Rails come fully fabricated, with End Caps installed and the Adjustable Door Alignment Slide pre-assembled. Installers can prepare a door for hanging in minutes. The Adjustable Door Alignment System (standard on top and bottom rails) allows up to 1/8" (3.2 mm) in/out adjustment without removing the door; adjustments are made by removing the End Cap to access three socket head cap bolts (center bolt secures the slide; outer bolts adjust position).

Key differentiators:

• Fastest installation among door rail systems—fully fabricated, ready-to-install rails
• Adjustable Door Alignment System for on-the-door fine tuning (1/8" / 3.2 mm)
• Single-component rigid housing that resists shifting—no two-piece rail to fall out of adjustment
• Internal components remain installed during shipping and installation
• Glass securing pads designed for longevity in extreme environments

Other product notes: Models accept 3/8" to 3/4" (10–19 mm) glass. Built-in Jamb Alignment Block is standard; arms, pivots, closer arms and keyed cylinders/thumbturns are ordered separately. Rail finishes available in several standard architectural options; custom finishes and widths quoted on request.

ORDERING INFORMATION:

• All Door Rails include the Kwik-Adjust™ Pivot Alignment System;
