CRL Brushed SS 3/8" Glass Low-Profile Door Rail w/ Lock 35-3/4"

• 35-3/4" (908 mm) length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

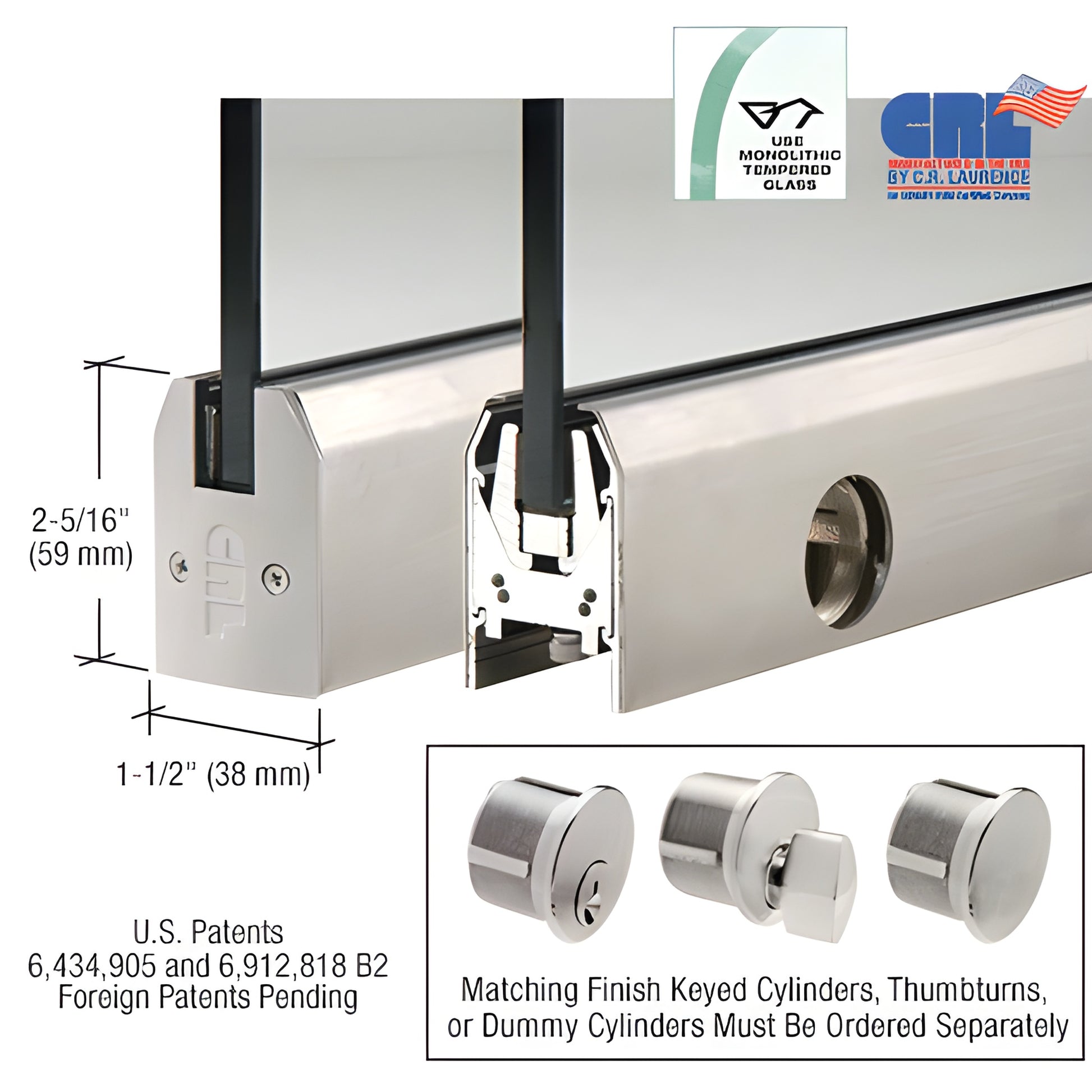

Our CRL Low Profile Door Rail (SKU: DR2TBS38SL) measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). These low profile door rails ship complete with end caps, installation instructions, and adjustment wrenches for fast, ready-to-install operation.

NOTE: Actual product height: 2-5/16" (59 mm).

The Wedge-Lock® system provides a secure attachment and the fastest installation time among door rail systems. Experienced installers can prepare a door in under ten minutes. Rails arrive fully fabricated with end caps installed; after mounting, simply attach the door arm or pivot (not included) to the adjustable door alignment slide preassembled in the rail.

The Adjustable Door Alignment System allows on-site vertical adjustment of the door 1/8" (3 mm) toward or away from the jamb without removing the door. This feature is standard on both top and bottom rails. To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide; the outer bolts provide the 1/8" (3 mm) adjustment in or out. The low profile slide permits pivot placement other than the American Standard setback of 2-3/4" (69.8 mm), enabling fabrication for vertically out-of-square openings.

Additional benefits of Wedge-Lock® Door Rails:

• Models accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid, single-component housing that resists shifting or loss of adjustment over time
• Internal components do not require removal before installation
• Durable glass securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.

Finish and ordering details: rails are available in several standard finishes and can be quoted in custom finishes and widths upon request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via
