CRL Brushed SS 1/2in Low-Profile Tapered Door Rail w/Lock 35-3/4in

• 35-3/4" (908 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (fastest installation)
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks; matching sidelite rails available

SKU: DR2TBS12SL

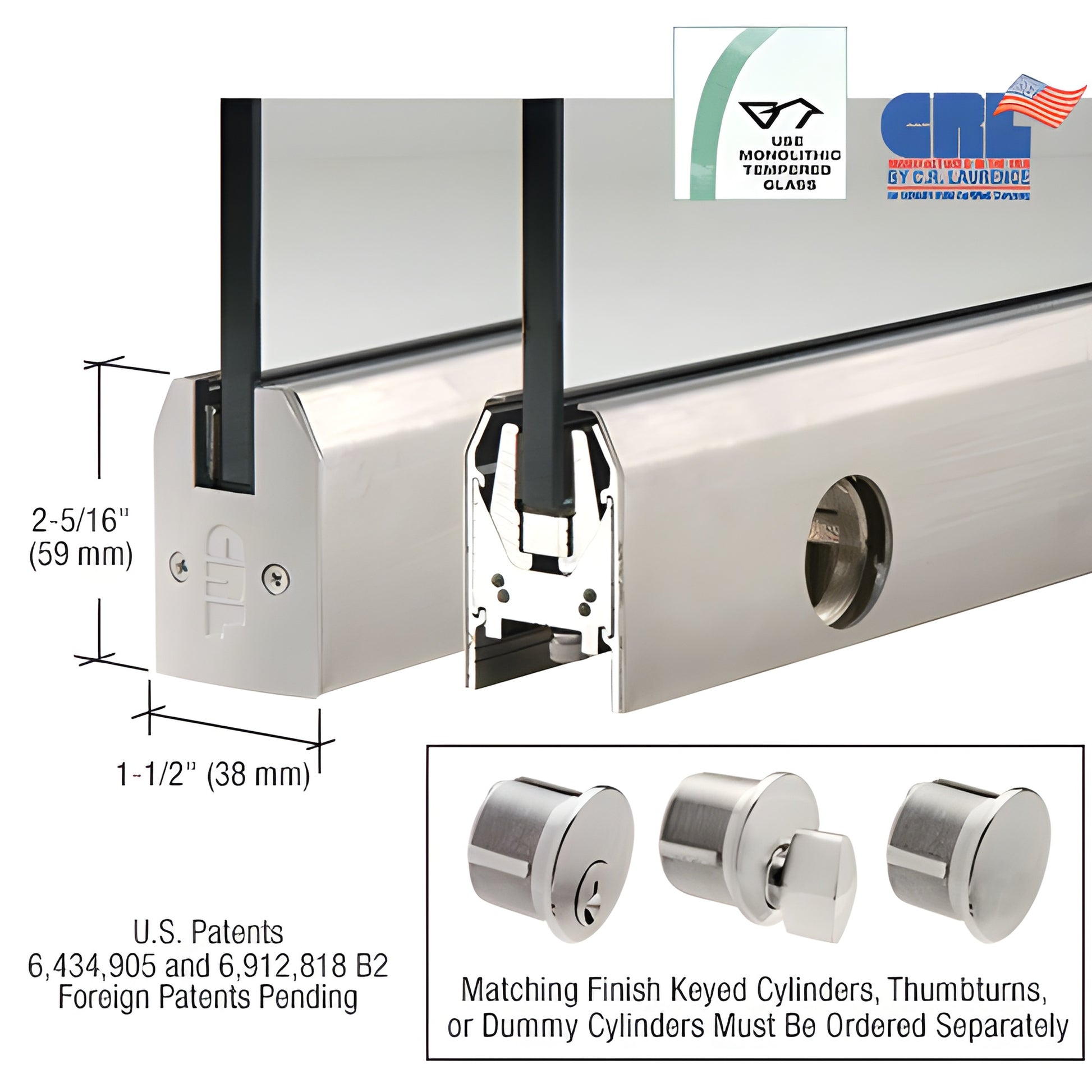

CRL Low Profile Door Rail is a compact, ready-to-install door rail designed for commercial glass doors that use 1/2" (12 mm) monolithic tempered glass. Measuring only 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide, the rail includes End Caps, installation instructions, and adjustment wrenches. It features CRL’s patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1), engineered for secure, long-lasting glass retention and the industry’s fastest installation times—experienced installers can prepare a door in under ten minutes.

Key differentiators:

• Patented Wedge-Lock® System — one-piece rigid housing that won’t shift or fall out of adjustment over time
• Preassembled adjustable door alignment slide — allows ±1/8" (3 mm) adjustment toward/away from jamb without removing the door (standard on top and bottom rails)
• Low-profile adjustable slide — enables non‑standard pivot setback and installation in vertically out-of-square openings
• Durable glass securing pads designed for extreme environments; internal components do not require removal before installation

After installation, access three socket head cap bolts behind the End Cap to lock the slide and fine-tune the door position. Arms and pivots must be ordered separately; the rail includes the built-in jamb alignment block. Models are available to accept 3/8" to 3/4" (10–19 mm) glass. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

Ordering information:

• All door rails supplied with Kwik-Adjust™ pivot alignment system; closer arms and floor or overhead pivots ordered separately
• Models with locks include the lock mechanism; matching finish keyed cylinders or thumbturns ordered separately
• End Caps included in stock lengths; specify total rail length (including End Caps) for custom lengths
• Pivot inserts (1NT701, 1
