CRL Black Bronze Anodized Tapered 1/2in Glass Door Rail Lock 35.75in

• 35-3/4" (908 mm) length for 1/2" (12 mm) tempered monolithic glass
• Patented Wedge-Lock® glass securing system (quick, secure installation)
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

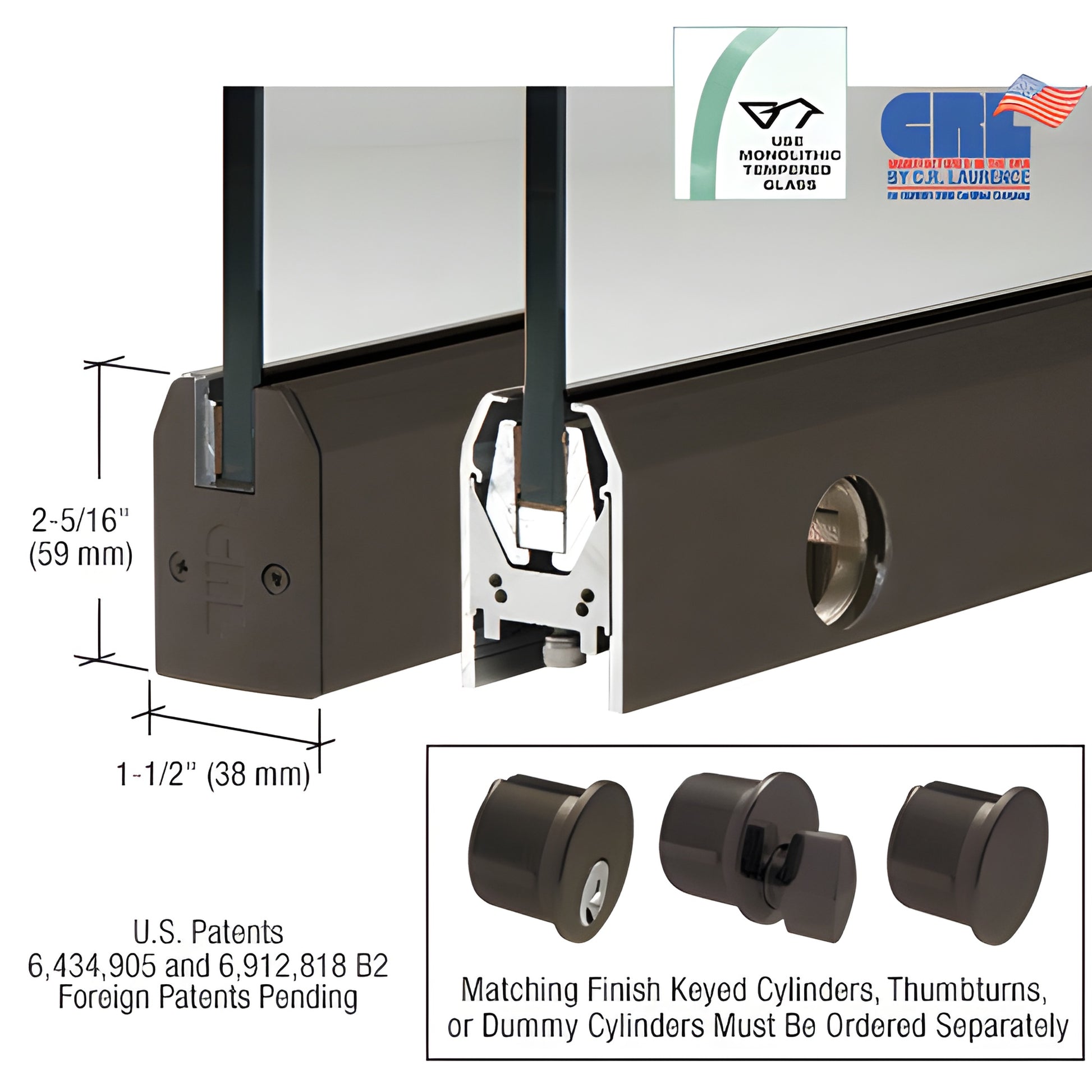

Our CRL Low Profile Door Rail (SKU: DR2TDU12SL) is a compact, ready-to-install low profile door rail measuring 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide. It features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1), integral End Caps, installation instructions, and adjustment wrenches.

NOTE: Actual product height: 2-5/16" (59 mm).

Why choose Wedge-Lock® Low Profile Door Rails?

• Fastest installation of any door rail system — experienced installers can prepare a door in under ten minutes
• Rigid single-component housing resists shifting and long-term misalignment
• Internal components remain assembled during installation for speed and reliability
• Glass securing pads designed for longevity in extreme environments
• Adjustable Door Alignment System (standard on top and bottom rails) allows ±1/8" (3 mm) in/out adjustment without removing the door

After installation, remove the End Cap to access three socket head cap bolts: the center bolt secures the slide; the two outer bolts provide the 1/8" (3 mm) adjustment. The low-profile adjustable slide allows pivots with slotted grooves to be positioned other than the American Standard Setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Other capabilities: models available to accept 3/8" to 3/4" (10 to 19 mm) glass. All rails include the built-in jamb alignment block; arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are offered in several standard finishes and can be quoted for custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:
• All Door Rails include the standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor
