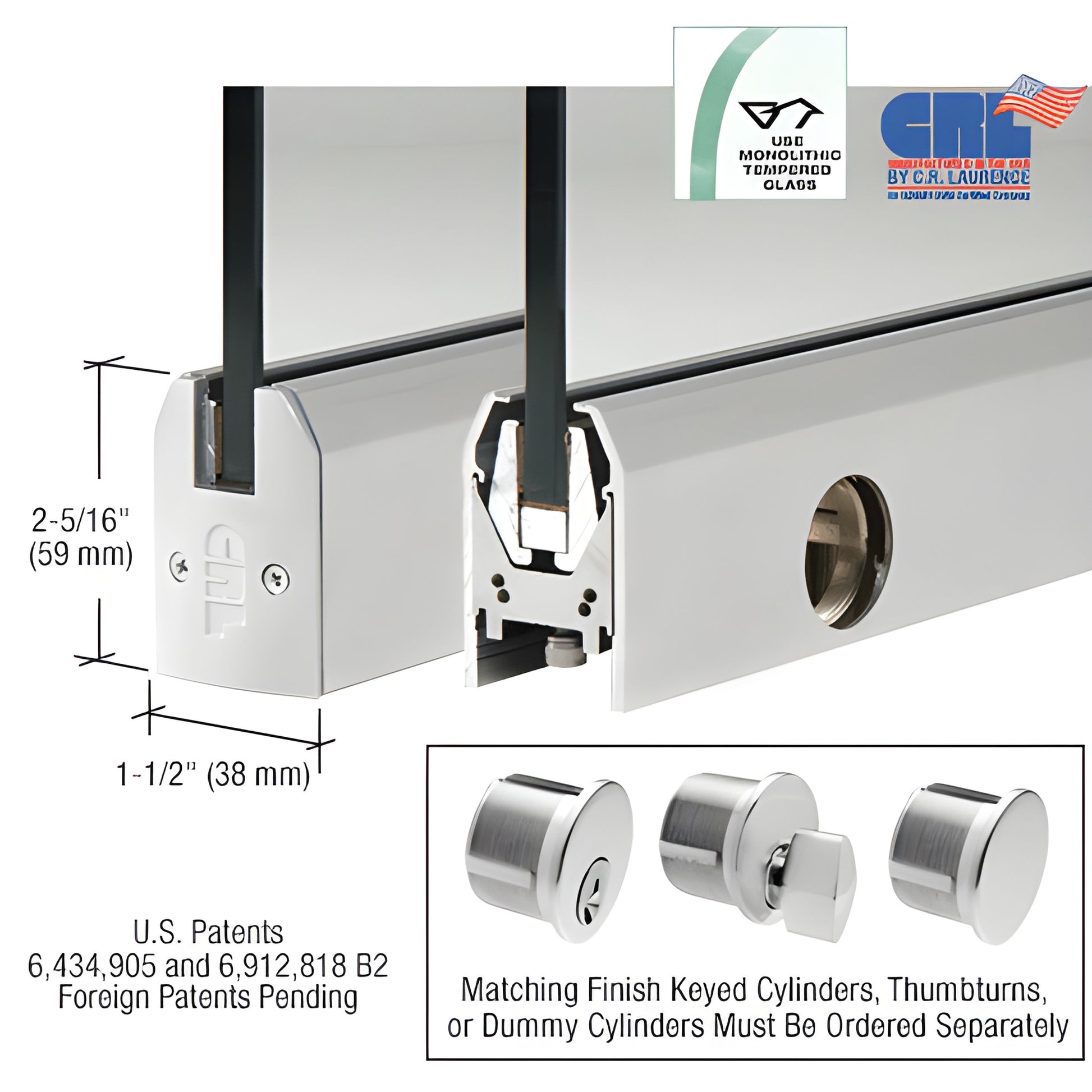

CRL Satin Anodized Low-Profile Glass Door Rail w/ Lock 3/8in 35-3/4in

• 35-3/4" (908 mm) length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System (U.S., Canadian & European patents)
• Low profile rails only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks; matching sidelite rails available

Our CRL Low Profile Door Rail (SKU: DR2TSA38SL) measures 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails come complete with end caps, installation instructions, and adjustment wrenches for fast, ready-to-install performance.

Key benefits & differentiators
• Fastest installation time among door rail systems—experienced installers can prepare a door in under ten minutes.
• Built-in adjustable door alignment slide (top and bottom rails) allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door.
• Single-component rigid housing resists shifting and long-term misalignment.
• Internal components do not require removal before installation; glass securing pads are designed for longevity in extreme environments.

Operation & adjustment
After installation, remove the end cap to access three socket head cap bolts. The center bolt locks the adjustable slide; the two outer bolts provide the 1/8" (3 mm) in/out adjustment. Low-profile adjustable slides permit pivot placement other than the American Standard setback, enabling fabrication for vertically out-of-square openings.

Compatibility & options
• Models accept 3/8" to 3/4" (10–19 mm) glass.
• All rails include the built-in jamb alignment block; arms and pivots are ordered separately to meet job requirements.
• Rails with locks are supplied with the latch mechanism installed; keyed cylinders or thumbturns must be ordered separately.
• Pivot inserts (1NT701, 1NT703, 1NT704) and closer arms/floor or overhead pivots sold separately.

Ordering & support
• End caps included in stock lengths; specify total door rail length (including end caps) when ordering custom lengths.
• Rails are prepped to receive Low Profile Door Rail Pivot Inserts (sold separately).
• Rail specifications, templates, and hardware packages available from CRL Technical Sales via e-mail.
• Installation instructions
