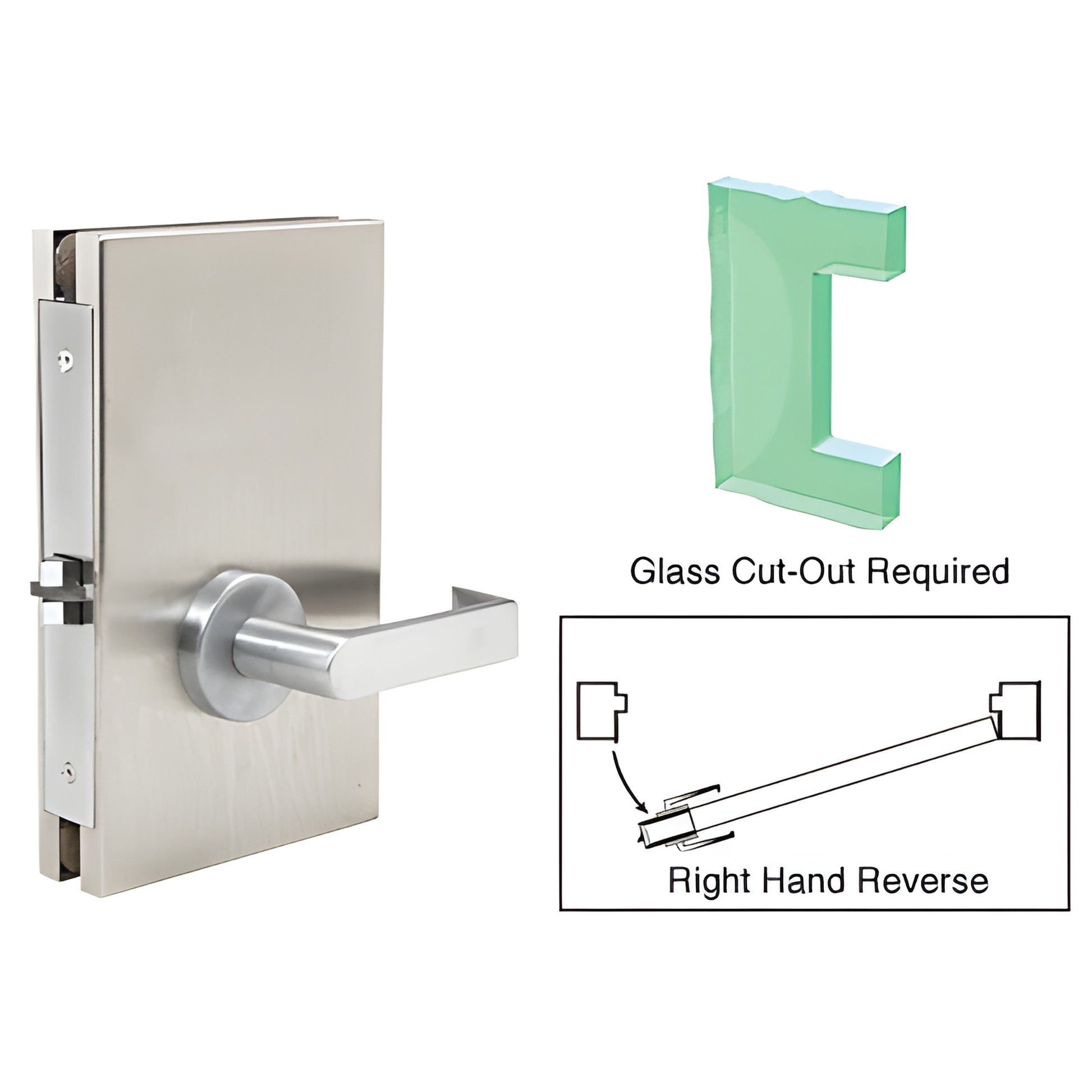

CRL 6x10 Brushed Stainless RHR Center Passage Lock with Deadlatch

• Five lock functions: Office, Entrance, Passage, Storeroom, and Classroom
• Designed for 1/2" (12 mm) tempered glass doors; custom units for other glass thicknesses available on special order
• Ships in under a week
• Available in five finishes
• Hassle-free installation—no cement or silicone required
• Jamb-mount strike plates available on special order
• Use with monolithic tempered glass

CRL 6" x 10" Center Locks with Deadlatch provide versatile, secure locking for 1/2" (12 mm) heavy glass doors. Available left- and right-handed and offered in five finishes, these center locks require only a simple cut-out in the glass and install cleanly without cement or silicone. SKU: DL611RPBS. Ideal long-tail uses: center lock for tempered glass doors, 6x10 center lock deadlatch for glass storefronts, and commercial glass door locks for offices and classrooms.

Office Lock Function: Latchbolt operated by lever on either side (outside lever can be locked by rocker in faceplate) or by key outside. Auxiliary latchbolt deadlocks the main latchbolt to resist jimmying. Inside lever always retracts the lock for egress.

Entrance Lock: Latchbolt operated by lever on either side (unless deadbolt is projected). Deadbolt operated by key outside and thumbturn inside. Turning the inside lever retracts both latch and deadbolt for quick exit.

Passage Lock: Latchbolt operated by lever on either side. Inside lever always retracts the locking mechanism for egress.

Storeroom Lock: Latchbolt operated by inside lever and by key outside; outside lever is fixed. Auxiliary latchbolt deadlocks the main latchbolt to prevent jimmying. Commonly used with electric strikes. Inside lever always allows exiting.

Classroom Lock: Latchbolt operated by lever on either side except when the outside lever is locked by key. Key operates latch and unlocks outside lever; inside lever remains operable for egress.

Stainless Steel Advisory:
