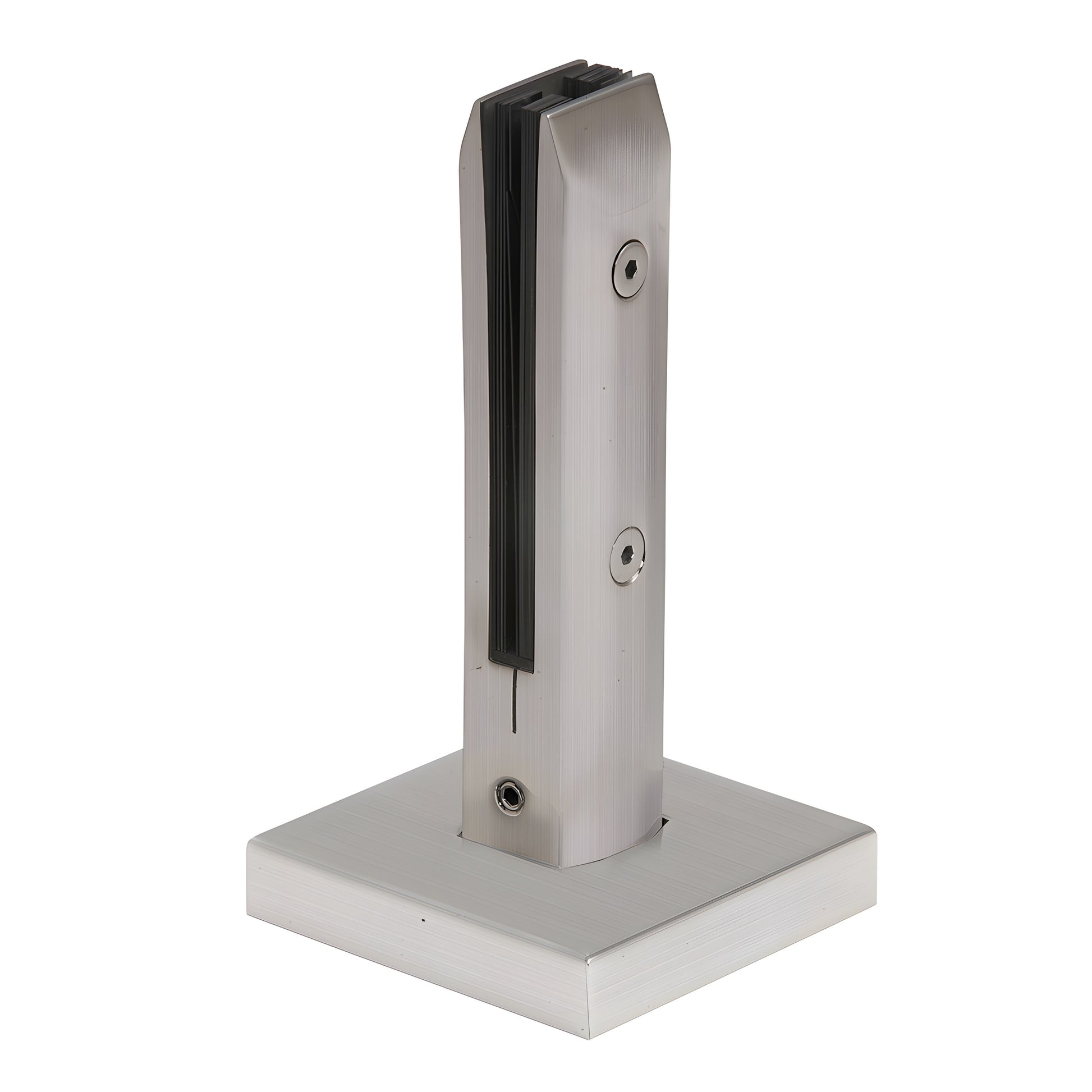

CRL Brushed Stainless Beveled Frameless Glass Clamp Surface Mount
CRL Brushed Stainless Beveled Frameless Glass Clamp Surface Mount
Regular price
$495.32 CAD
Regular price
Sale price
$495.32 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# AFWC1SBS
Shipping Weight: 4.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
316
Attachment
Surface
Base Plate Length
5-3/16 in. (132 mm)
Base Plate Width
5-3/16 in. (132 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in., 9/16 in. (10 mm, 12 mm, 14 mm)
Material
Stainless Steel
Mounting Hole Diameter
7/16 in. (11 mm)
Overview
- Designed for 3/8" or 1/2" (10 or 12 mm) tempered monolithic glass and 9/16" (13.52 mm) tempered laminated glass
- Easy-to-install surface mount design for pool decks, patios, and windscreens

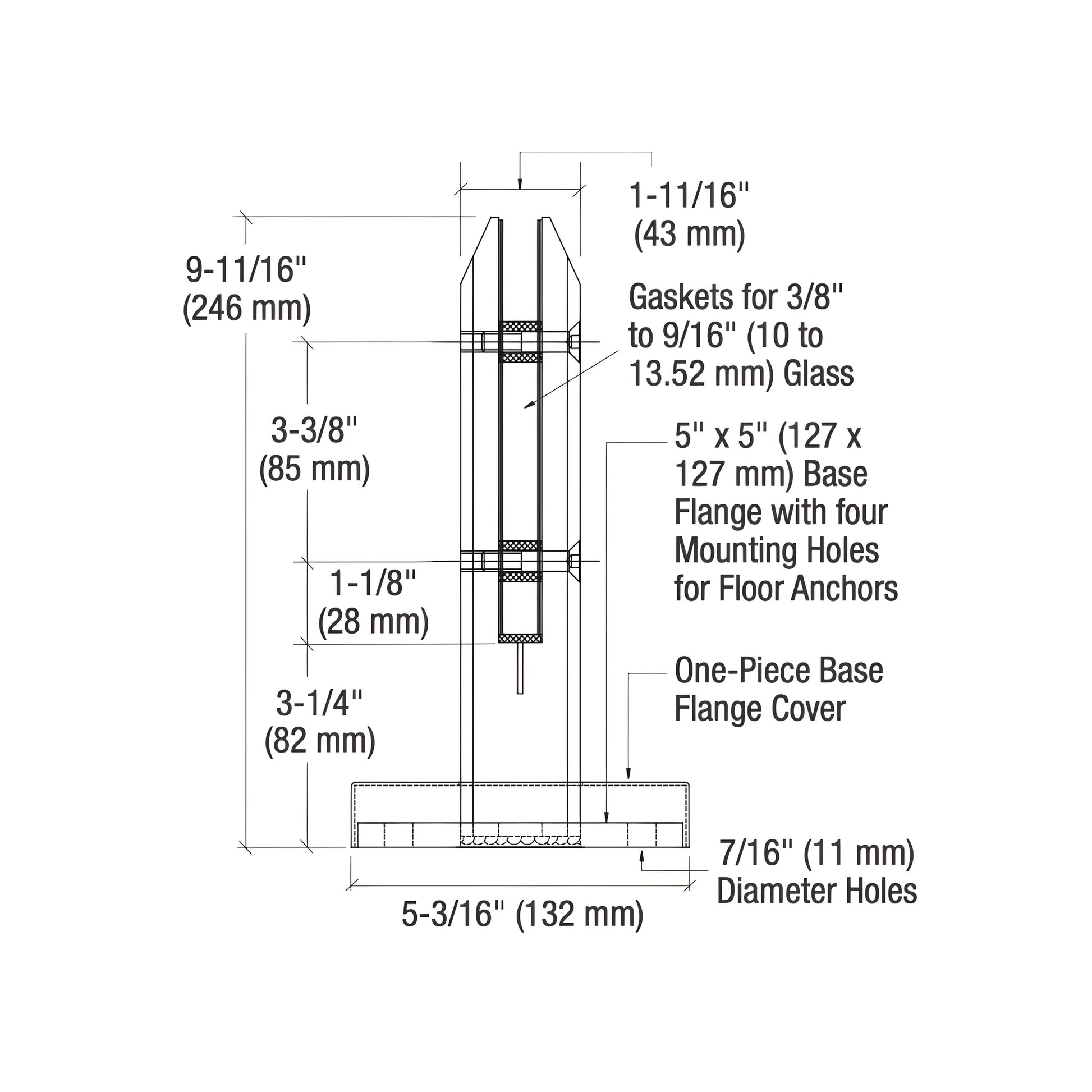

CRL One-Piece Surface Mount Clamps (SKU: AFWC1SBS) provide a durable, low-profile solution for frameless glass windscreens and pool surrounds. These surface mount glass clamps require two 3/4" (19 mm) glass fabrication holes per clamp and stand 9-11/16" (246 mm) high. They offer a clean, unobtrusive look with minimal vertical or horizontal framing distractions.
CRL frameless windscreen clamps are commonly used to create tempered glass barriers around pools, patios, and commercial terraces. Options include clamps for core-drilled decks (filled with expanding cement), face-mounted models for walls or planter boxes, and now surface-mount models for easy retrofits. Custom powder-coated finishes are available to match exterior aesthetics. Ideal long-tail use cases: "surface mount glass clamp for pool windscreen," "frameless glass windscreen clamp for patios," and "stainless steel clamp for tempered glass pool surround."
NOTE: CRL is an international supplier; verify local building codes to confirm these frameless windscreen clamps meet jurisdictional requirements.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Specifications
CAD Drawings - dwg
