• AFWC1SPS polished stainless steel one-piece surface-mount glass clamp on square base for 3/8-1/2 or 9/16 glass
  • AFWC1SPS polished stainless steel one-piece surface-mount glass clamp on square base for 3/8-1/2 or 9/16 glass
1 2

CRL

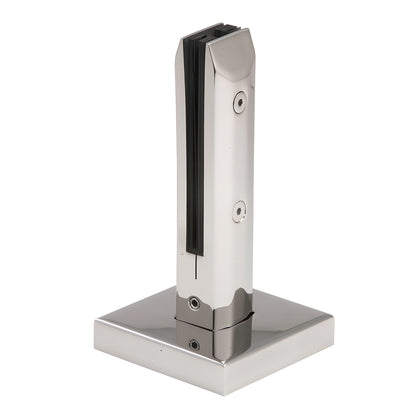

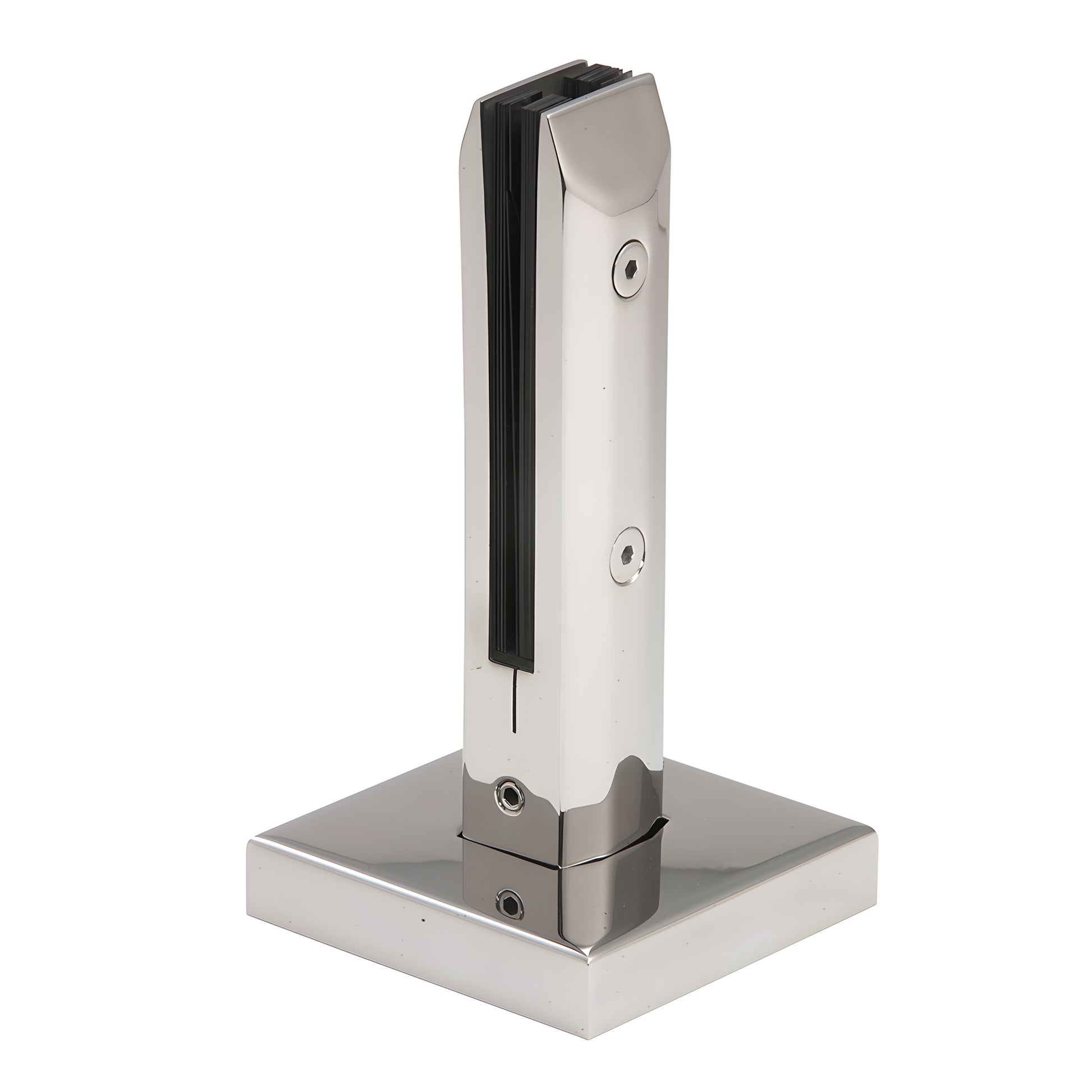

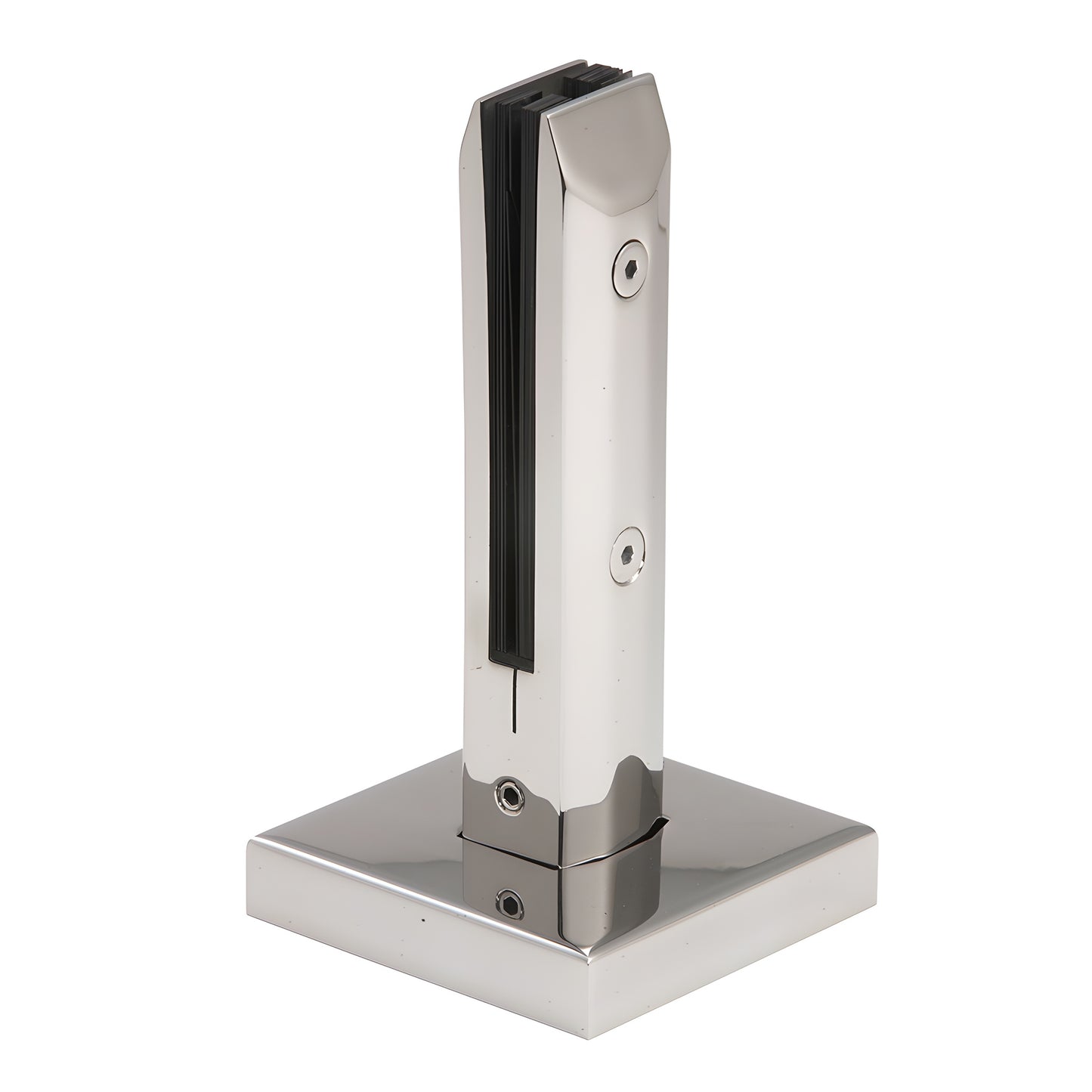

CRL Polished Stainless One-Piece Surface Mount Frameless Glass Clamp

CRL Polished Stainless One-Piece Surface Mount Frameless Glass Clamp

$520.41 CAD
$520.41 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# AFWC1SPS
Shipping Weight: 4.52 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Attachment
Surface
Base Plate Length
5-3/16 in. (132 mm)
Base Plate Width
5-3/16 in. (132 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in., 9/16 in. (10 mm, 12 mm, 14 mm)
Material
Stainless Steel
Mounting Hole Diameter
7/16 in. (11 mm)

Overview

  • Designed for 3/8" or 1/2" (10 or 12 mm) Tempered Monolithic Glass and 9/16" (13.52 mm) Tempered Laminated Glass
  • Easy-to-Install Surface Mount Design

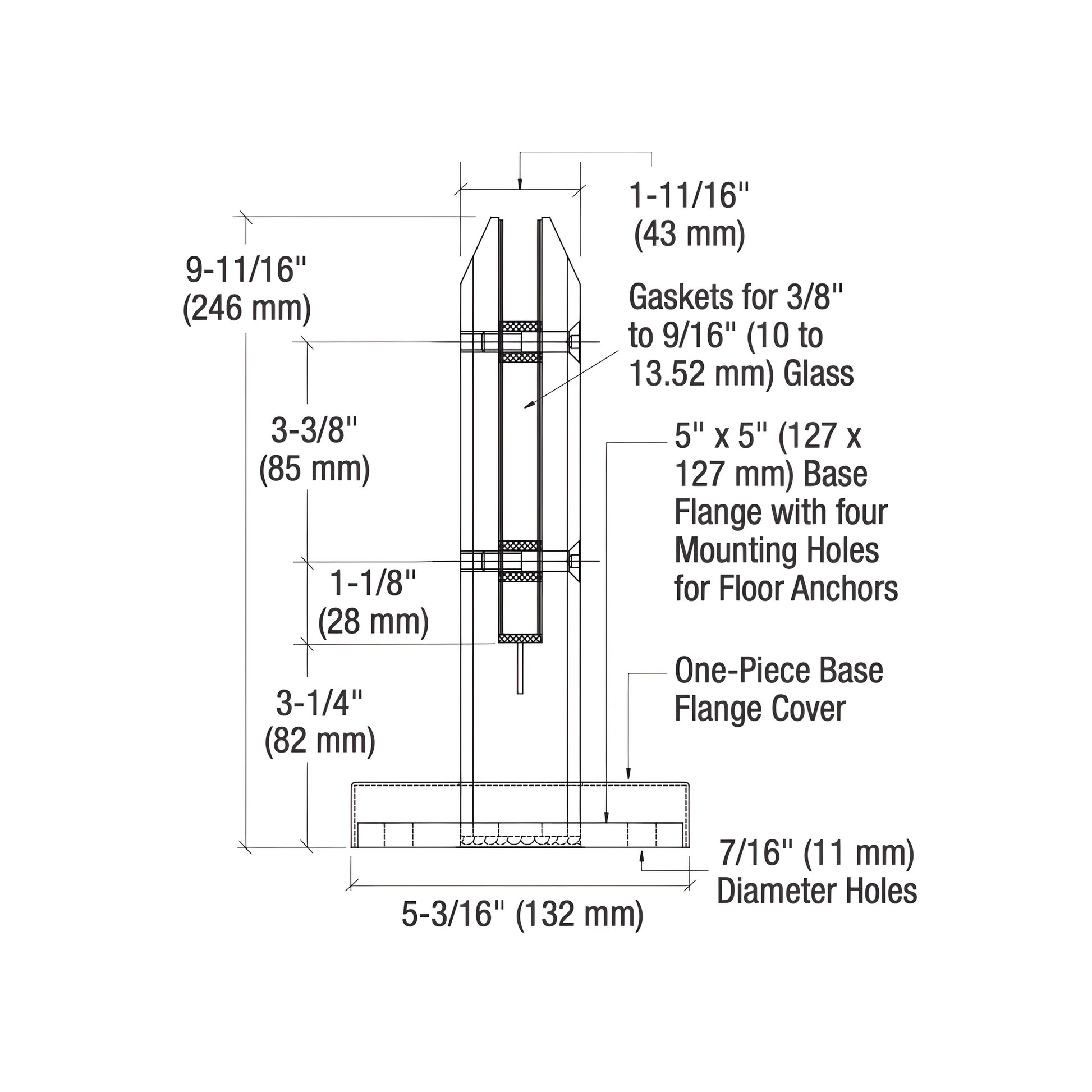

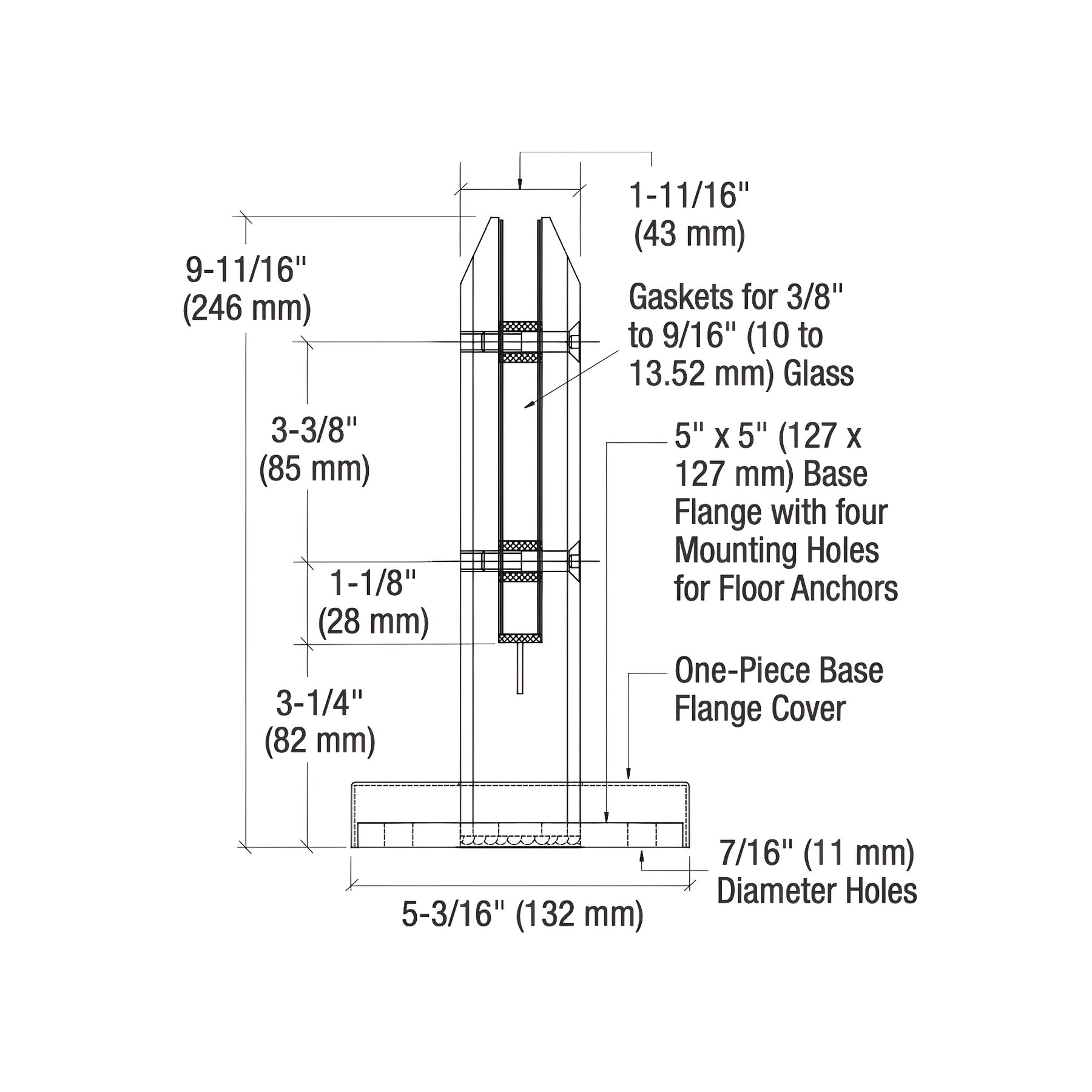

CRL One-Piece Surface Mount Clamps (SKU: AFWC1SPS) provide a durable surface mount solution for frameless glass windscreens and pool surrounds. Ideal for pool decks and patios, these stainless steel clamps accept 3/8"–1/2" tempered monolithic glass or 9/16" tempered laminated glass. Glass fabrication requires two 3/4" (19 mm) holes per clamp. Overall height: 9-11/16" (246 mm). These surface mount glass clamps reduce visual distractions from frames while delivering a clean, frameless look.

CRL frameless windscreen clamps are commonly used to create tempered glass windscreens and pool surrounds with minimal vertical or horizontal framing. Options include core-drill insertion clamps for concrete decks (filled with expanding cement), wall/planter box face-mount models, and surface mount models like this one. Custom powder-coated finishes are available to match project aesthetics. These clamps are a practical choice for installers seeking corrosion-resistant hardware for outdoor glass railing and pool barrier applications.

NOTE: CRL is an international supplier; verify local building codes to ensure these frameless windscreen clamps meet regional regulations.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before ordering, request this information from CRL Customer Service. Product images are of the actual product or a close representation; colors may vary with display settings.

Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not fully rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.


For technical questions, code confirmation, or to order AFWC1SPS, contact CRL Customer Service or your local distributor.
