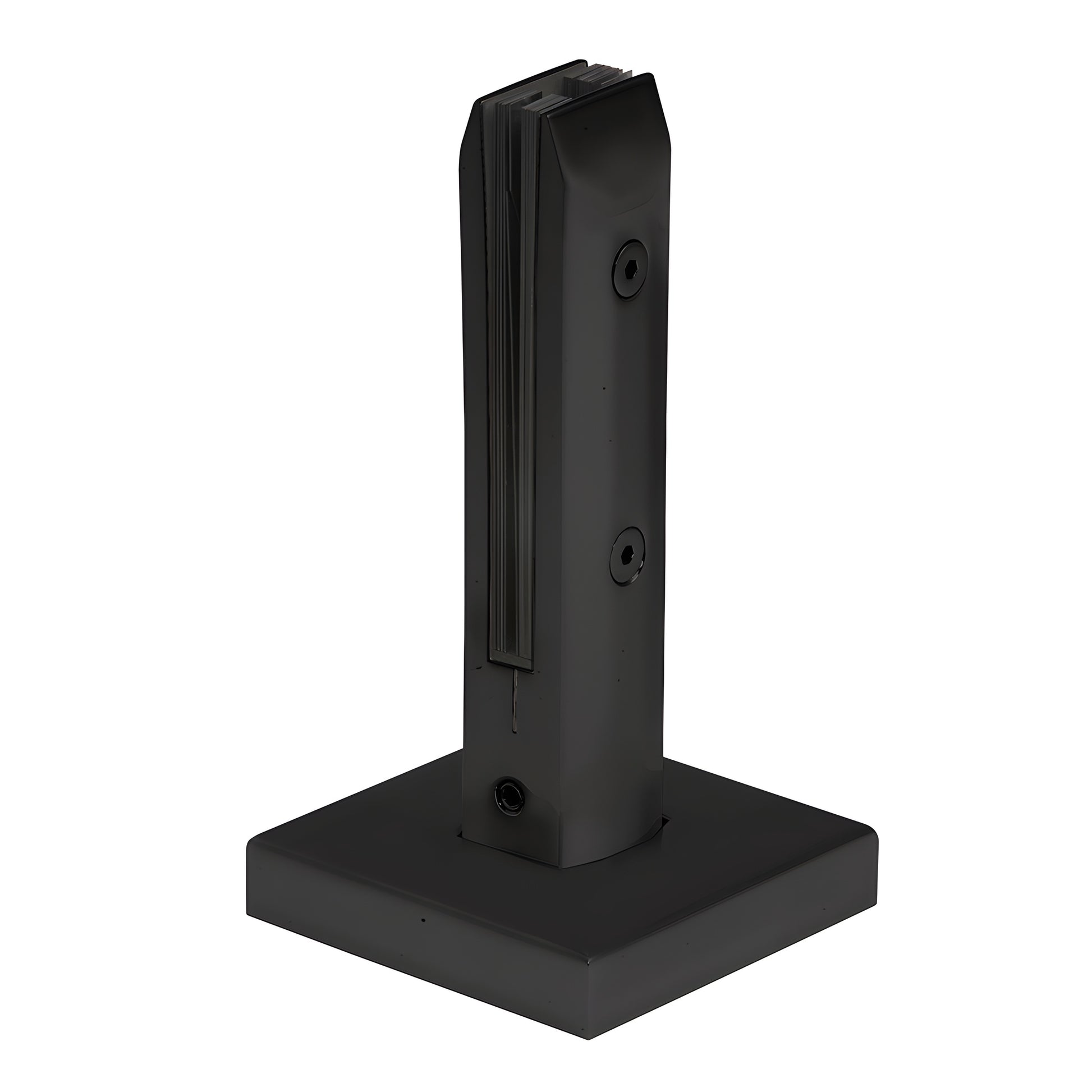

CRL Matte Black Beveled One-Piece Surface-Mount Frameless Glass Clamp
CRL Matte Black Beveled One-Piece Surface-Mount Frameless Glass Clamp
Regular price
$509.85 CAD
Regular price
Sale price
$509.85 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# AFWC1SMBL
Shipping Weight: 4.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
316
Attachment
Surface
Base Plate Length
5-3/16 in. (132 mm)
Base Plate Width
5-3/16 in. (132 mm)
Finish/Color
Matte Black
Glazing Thickness
3/8 in., 1/2 in., 9/16 in. (10 mm, 12 mm, 14 mm)
Material
Stainless Steel
Mounting Hole Diameter
7/16 in. (11 mm)
Overview
- Designed for 3/8" or 1/2" (10 or 12 mm) tempered monolithic glass and 9/16" (13.52 mm) tempered laminated glass
- Easy-to-install surface mount design — ideal for pool decks, patios, and frameless glass windscreens

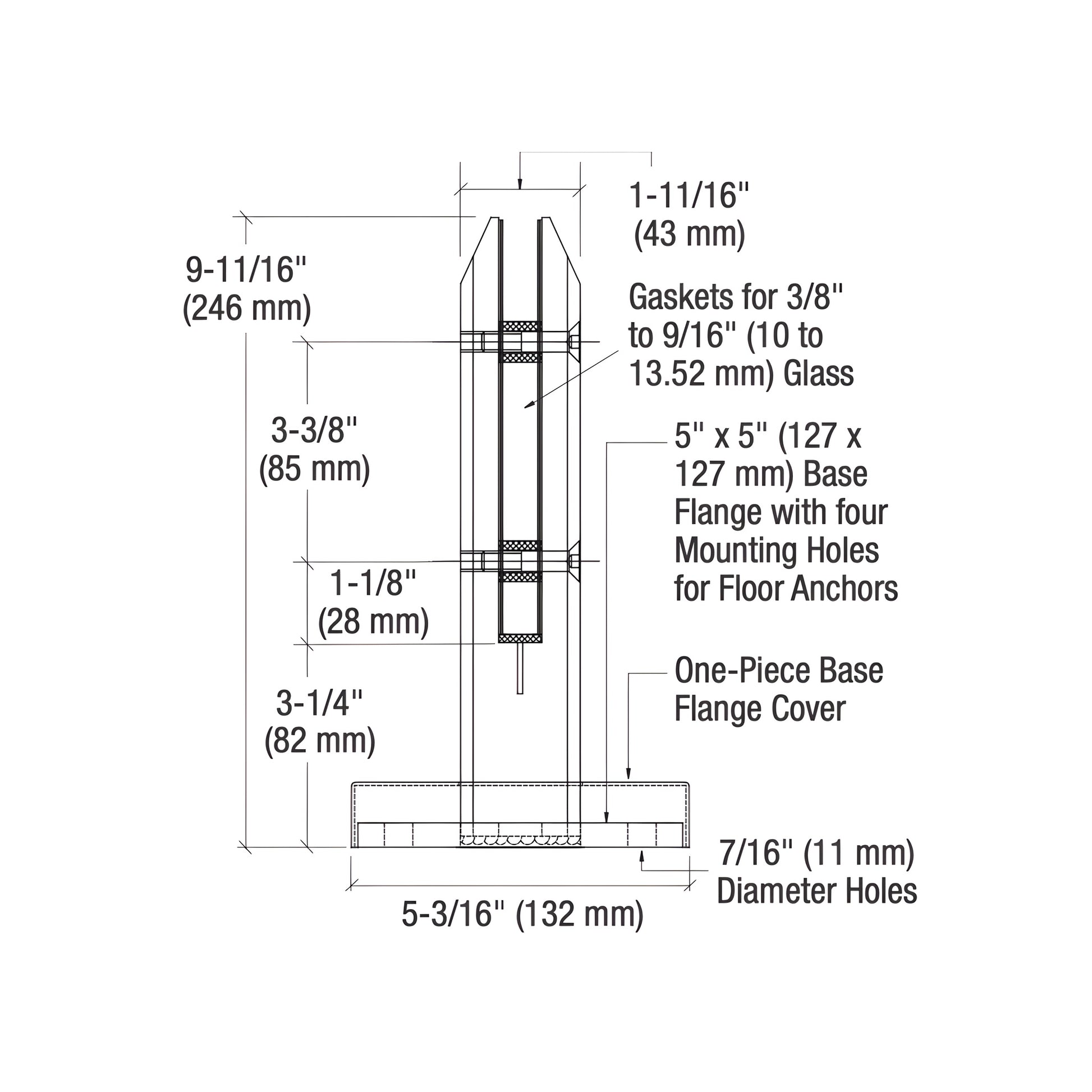

CRL One-Piece Surface Mount Clamps (SKU: AFWC1SMBL) provide a one-piece surface-mount solution for frameless glass windscreens and pool surrounds. Glass fabrication requires two 3/4" (19 mm) holes per clamp. Overall height: 9-11/16" (246 mm). These surface mount glass clamps minimize visible hardware for a clean, unobstructed view.
CRL frameless windscreen clamps are commonly used to create tempered glass windscreens and pool surrounds with minimal distraction from vertical or horizontal framing. Options include models for core-drilled concrete decks (filled with expanding cement), face-mounts for walls or planter boxes, and now surface-mount models. Custom powder-painted finishes are available to match outdoor architecture.
Important: CRL is an international supplier. Check local building codes to confirm these frameless windscreen clamps meet regional regulations.
Shop CRL surface mount glass clamps for durable, low-profile frameless windscreen and pool surround installations — order now or contact us for custom finishes and technical support.
Specifications
Engineering & Test Reports
