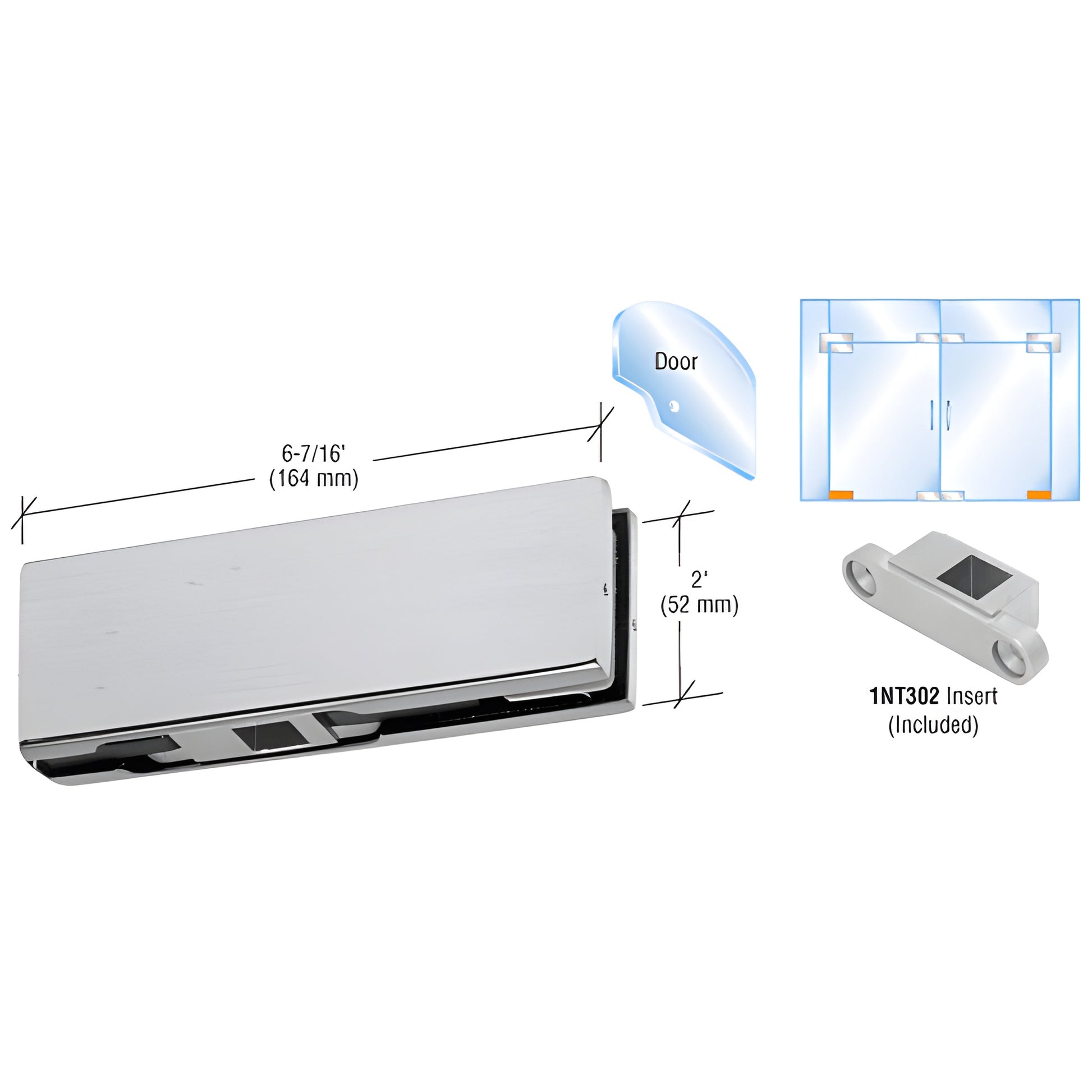

CRL Brushed Stainless Bottom Door Patch With 1NT302 Insert
Item # PH10DBS
$75.42
CAD
Finish (5)
-
Satin Anodized -
Brushed Stainless Steel -
Black Bronze Anodized -
Matte Black -
Polished Stainless Steel
Overview
| SKU | PH10DBS |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Brushed Stainless Steel |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Height | 2 in. (51 mm) |
| Insert Type | 1NT302 |
| Length | 6-7/16 in. (164 mm) |
| Pivot Setback | 2-3/4 |
| Type | Bottom |
| With Insert | Yes |
Description
- 2-3/4" (70 mm) Pivot Setback
- High Density Cast Body
- For 3/8" or 1/2" (10 or 12 mm) Glass
The CRL Bottom Door Patch Fitting includes the No. 1NT302 Insert for use with tapered square style spindle Casma Floor Closers or 1NT404 Free Swing Pivots. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.Specifications
Templates
CAD Drawings - pdf
- PDFCommercial Patch Hardware European Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware North American Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.pdf
CAD Drawings - dwg
- DocumentCommercial Patch Hardware European Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware North American Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.dwg
Cleaning & Maintenance
