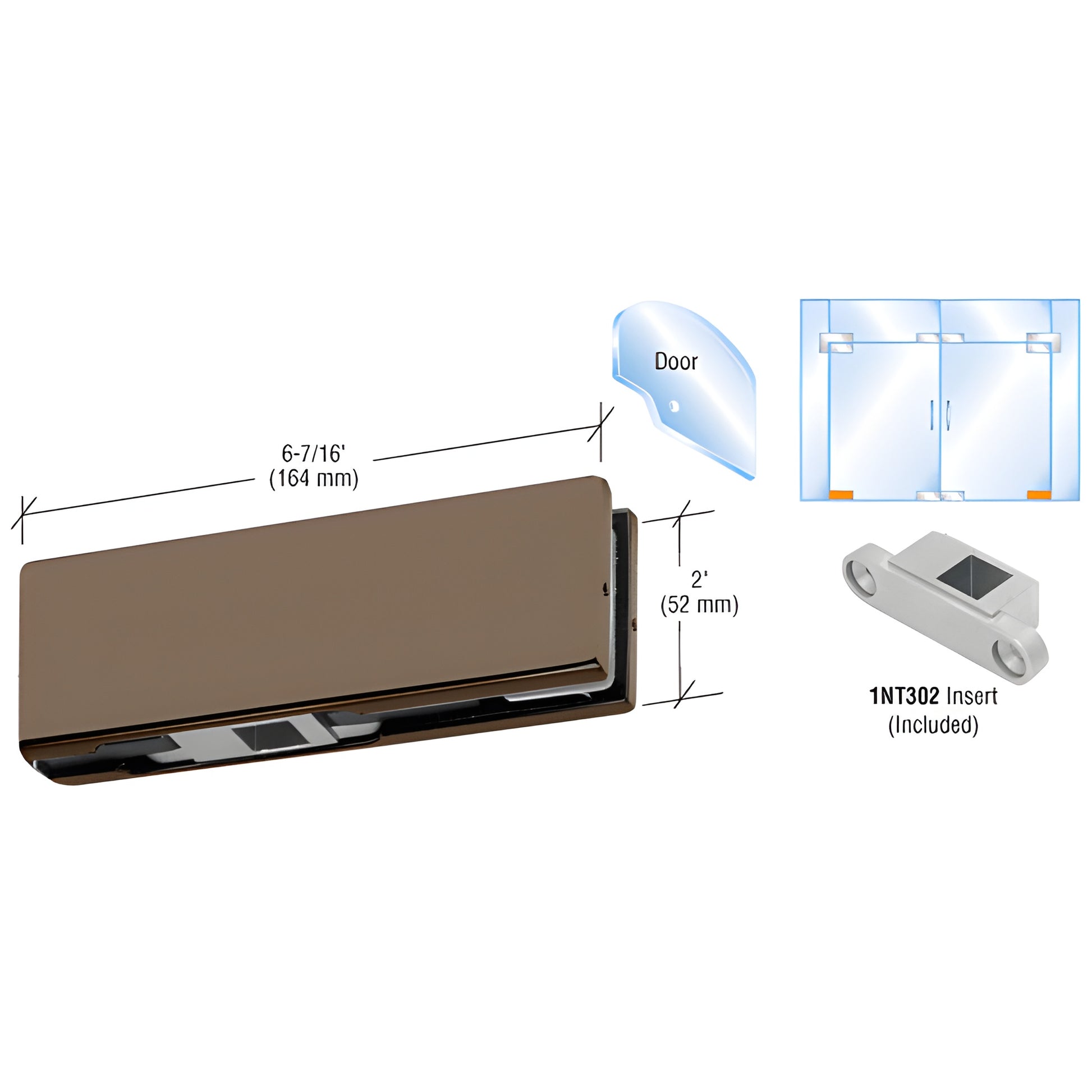

CRL Dark Bronze Glass Door Bottom Patch Fitting with 1NT302 Insert
CRL Dark Bronze Glass Door Bottom Patch Fitting with 1NT302 Insert
Regular price
$79.95 CAD
Regular price
Sale price
$79.95 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH10DDU
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Height
2 in. (51 mm)
Insert Type
1NT302
Length
6-7/16 in. (164 mm)
Pivot Setback
2-3/4
Type
Bottom
With Insert
Yes
Overview
- 2-3/4" (70 mm) Pivot Setback
- High Density Cast Body
- For 3/8" or 1/2" (10 or 12 mm) Glass
The CRL Bottom Door Patch Fitting (SKU: PH10DDU) is a heavy-duty bottom patch fitting for frameless glass doors, designed for use with tapered square spindle Casma floor closers or 1NT404 Free Swing Pivots. It includes the No. 1NT302 Insert. Finished covers are available in five standard finishes. Supplied gaskets allow use with either 3/8" or 1/2" (10 or 12 mm) glass.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter Hole and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
Use the following guidelines when installing on a 1/2" glass door:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Why choose this bottom door patch fitting: High-density cast body for durability, 2-3/4" pivot setback for precise alignment, and compatibility with 3/8" or 1/2" frameless glass—ideal for commercial and residential frameless glass door installations.
Contact CRL to order PH10DDU or request a quote today.
Specifications
CAD Drawings - dwg
