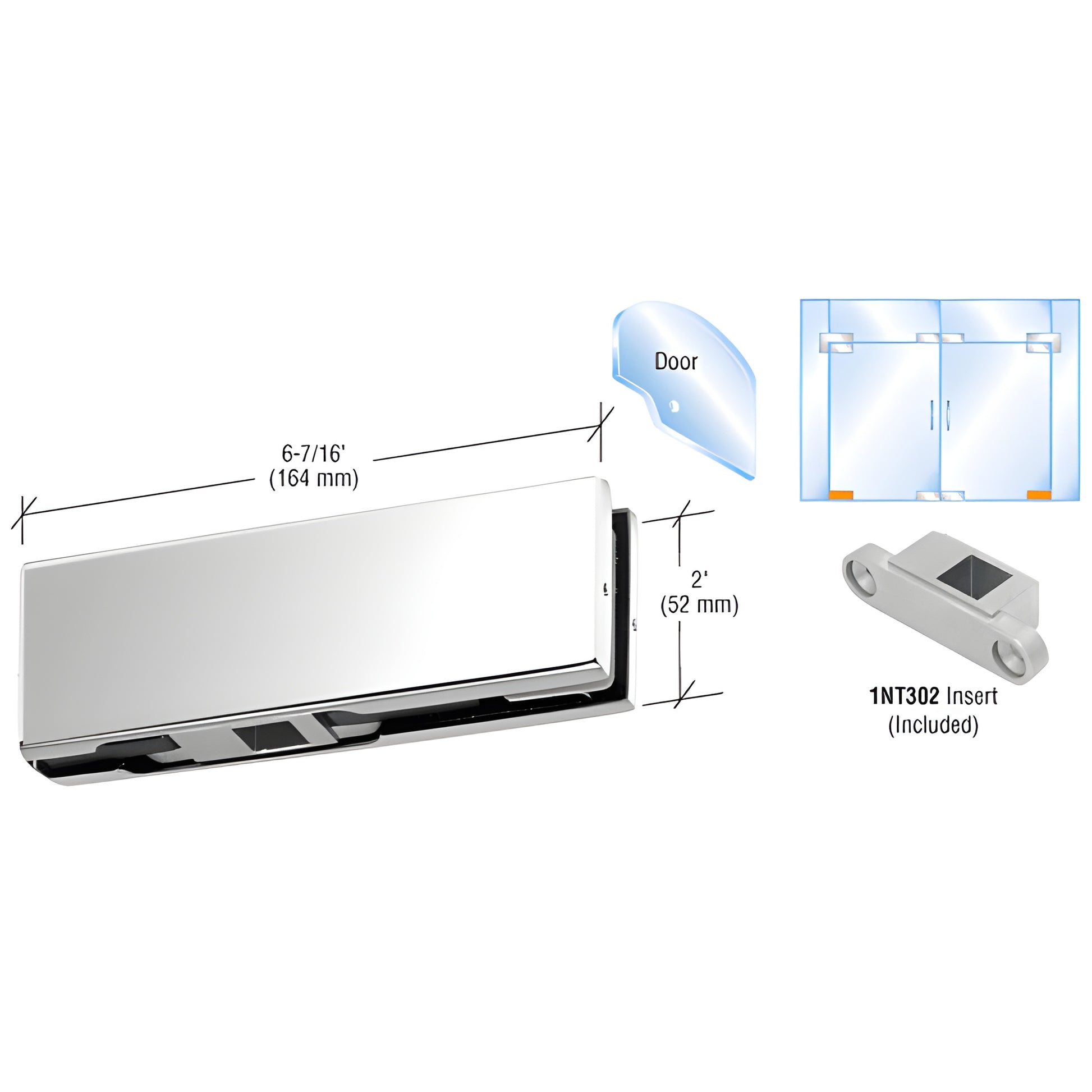

CRL Polished Stainless Bottom Door Patch With 1NT302 Insert
CRL Polished Stainless Bottom Door Patch With 1NT302 Insert
Regular price
$94.02 CAD
Regular price
Sale price
$94.02 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH10DPS
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Height 2 in. | (51 mm) |
| Insert Type | 1NT302 |
| Length 6-7/16 in. | (164 mm) |
| Pivot Setback | 2-3/4 |
| Type | Bottom |
| With | Insert Yes |
Overview
The CRL Bottom Door Patch Fitting is expertly designed with a 2-3/4" (70 mm) pivot setback and a high-density cast body, making it ideal for use with 3/8" or 1/2" (10 or 12 mm) glass.
This fitting comes with the No.
1NT302 Insert, compatible with Casma Floor Closers and 1NT404 Free Swing Pivots, and offers a selection of five standard finishes with gaskets for versatility.
Please note that these fittings are not suitable for laminated glass, and specific glass fabrication is required.
For optimal performance, ensure your glass door does not exceed the maximum dimensions of 102" in height and 42" in width, and 194 lbs in weight.
Regular maintenance is recommended for the stainless steel to preserve its original finish.
Visit our site today for more details and to contact CRL Customer Service for shipping inquiries.
This fitting comes with the No.
1NT302 Insert, compatible with Casma Floor Closers and 1NT404 Free Swing Pivots, and offers a selection of five standard finishes with gaskets for versatility.
Please note that these fittings are not suitable for laminated glass, and specific glass fabrication is required.
For optimal performance, ensure your glass door does not exceed the maximum dimensions of 102" in height and 42" in width, and 194 lbs in weight.
Regular maintenance is recommended for the stainless steel to preserve its original finish.
Visit our site today for more details and to contact CRL Customer Service for shipping inquiries.
Specifications
Templates
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
