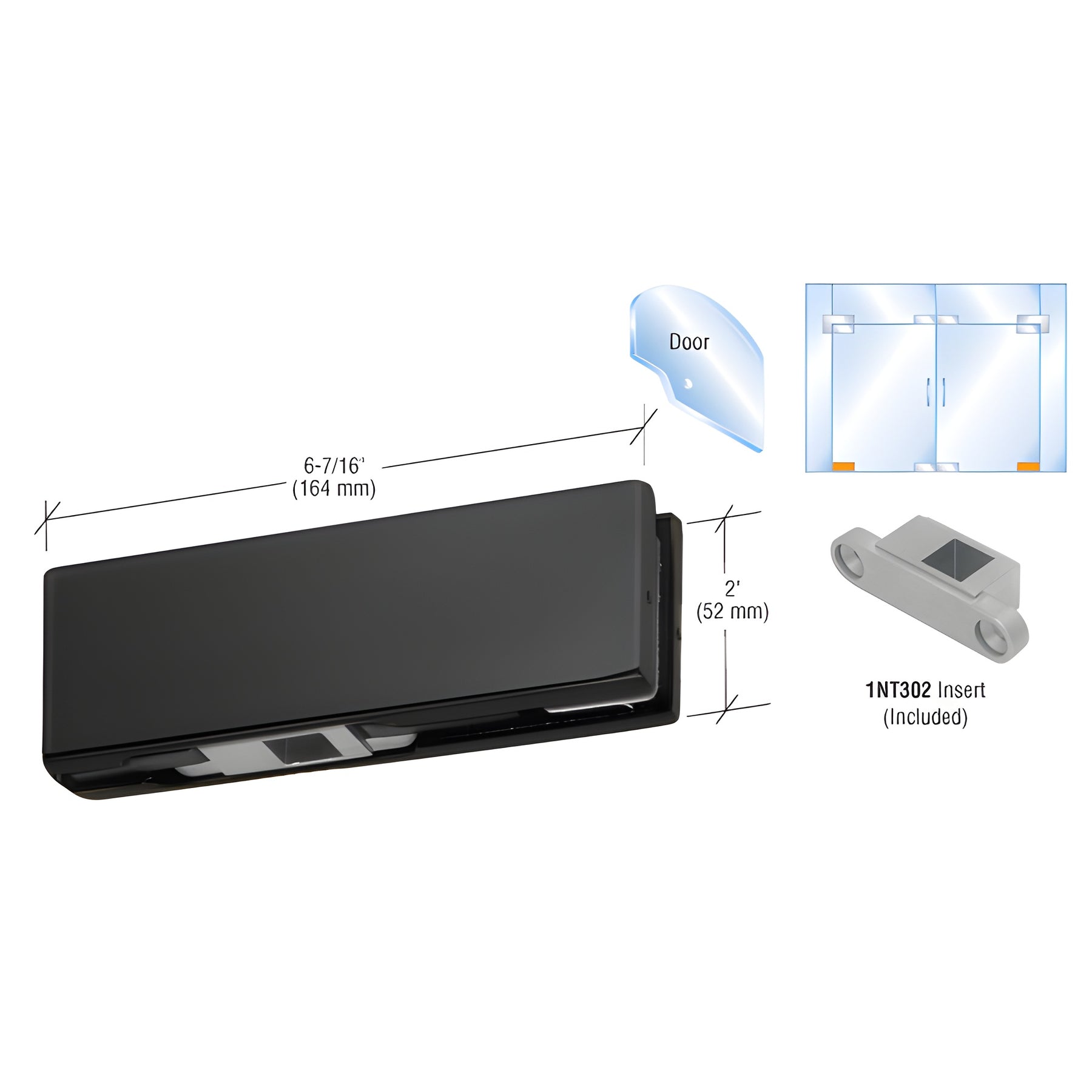

CRL Matte Black Bottom Door Patch Fitting 1NT302 Insert

CRL Matte Black Bottom Door Patch Fitting 1NT302 Insert

$84.23 CAD
$84.23 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH10DMBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Matte Black
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Height
2 in. (51 mm)
Insert Type
1NT302
Length
6-7/16 in. (164 mm)
Pivot Setback
2-3/4
Type
Bottom
With Insert
Yes

Overview

  • 2-3/4" (70 mm) pivot setback — ideal for frameless glass door alignment
  • High-density cast body for durable, long-lasting performance
  • Compatible with 3/8" or 1/2" (10 or 12 mm) glass

The CRL Bottom Door Patch Fitting (SKU: PH10DMBL) includes the No. 1NT302 insert for tapered square spindle Casma floor closers or the 1NT404 free swing pivots. Finished covers are available in five standard finishes. Supplied gaskets allow use with either 3/8" or 1/2" (10 or 12 mm) glass, making this fitting a versatile choice for frameless glass door installations.


GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch

COMES WITH:
Template and instructions

Product Warning:
These fittings are not for use with laminated glass.

When used with 1/2" glass, follow these maximums:
  • Maximum height: 102" (2.59 m)
  • Maximum weight: 194 lbs (80 kg)
  • Maximum width: 42" (1.09 m)
If the door exceeds any of these limits, use full door rails.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.


Durable high-density cast construction, pivot setback precision, and compatibility with Casma floor closers/free swing pivots make this patch fitting a top pick for frameless glass door projects. Add PH10DMBL to your cart or contact CRL for a quote.
