CRL Brushed Stainless Crescent 180° Sliding Door Hardware Kit

• System Features: One sliding door and one fixed panel
• Quality roller bearings assure quiet door movement
• Circular header and round rollers provide symmetrical, modern aesthetics
• Available finishes: Polished Stainless, Brushed Stainless, Matte Black
• Handle or knob for door glass sold separately
• Glass clamps or U-channel for fixed panel sold separately
• Accommodates 1/2" or 3/8" (12 or 10 mm) thick tempered safety glass (not included)

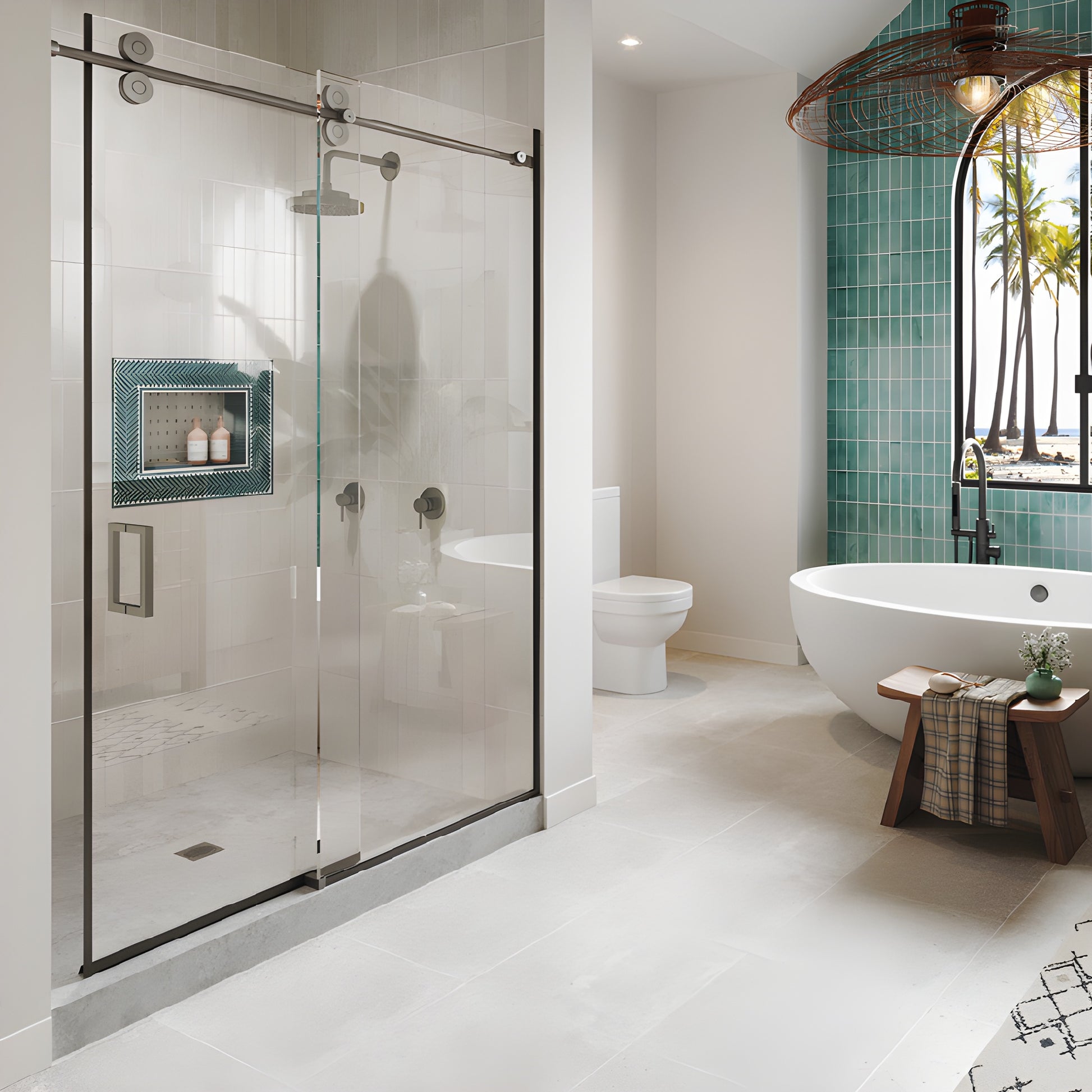

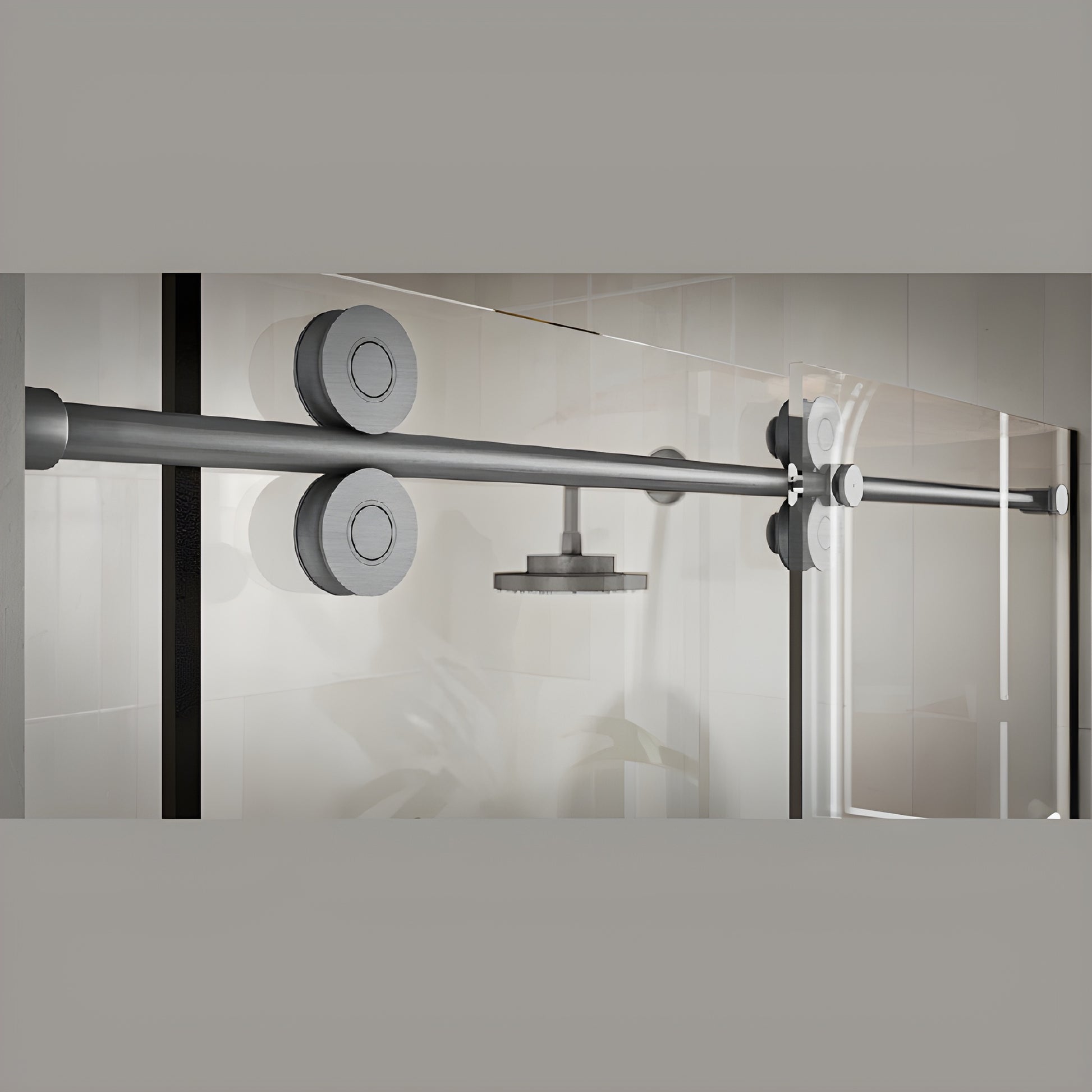

The circular header and round rollers of the Crescent Series Sliding Door System (SKU: CRE78BS) create a cohesive, soft décor ideal for modern sliding shower door hardware. Minimal visible hardware highlights more glass for a clean, contemporary look. Durable rollers ensure smooth, quiet door travel, and the system allows reversible fixed and sliding panels for flexible installation. Available in polished stainless, brushed stainless, or popular matte black finish.

Create a custom look with our black seals and black edge moldings sold separately. View Here

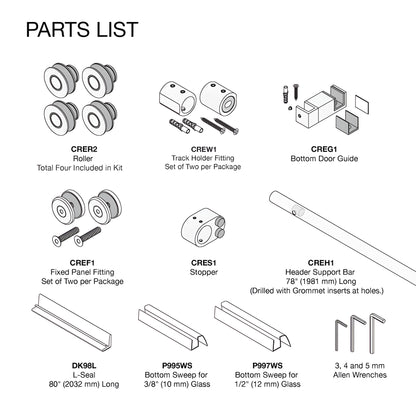

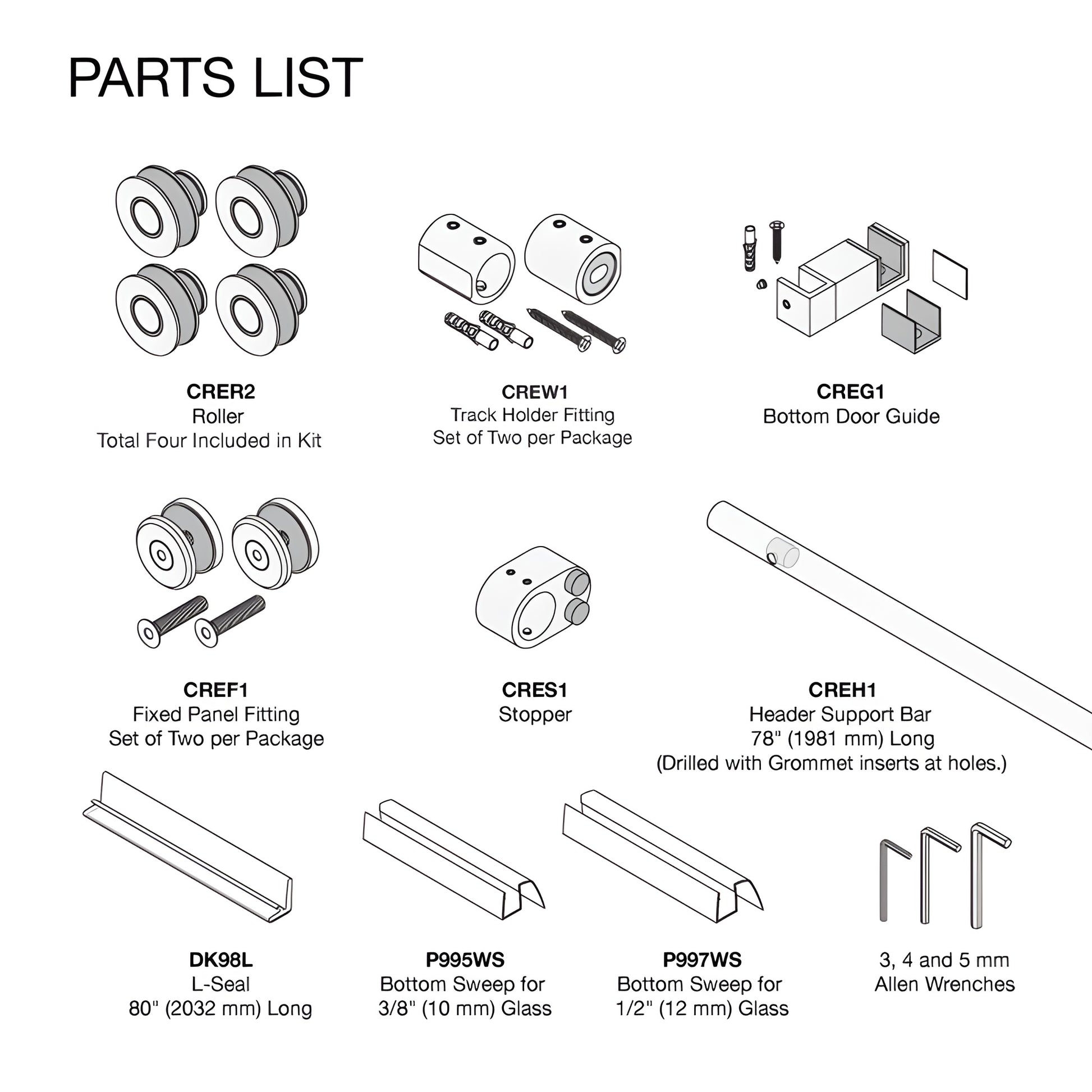

STANDARD 180 DEGREE KIT INCLUDES:

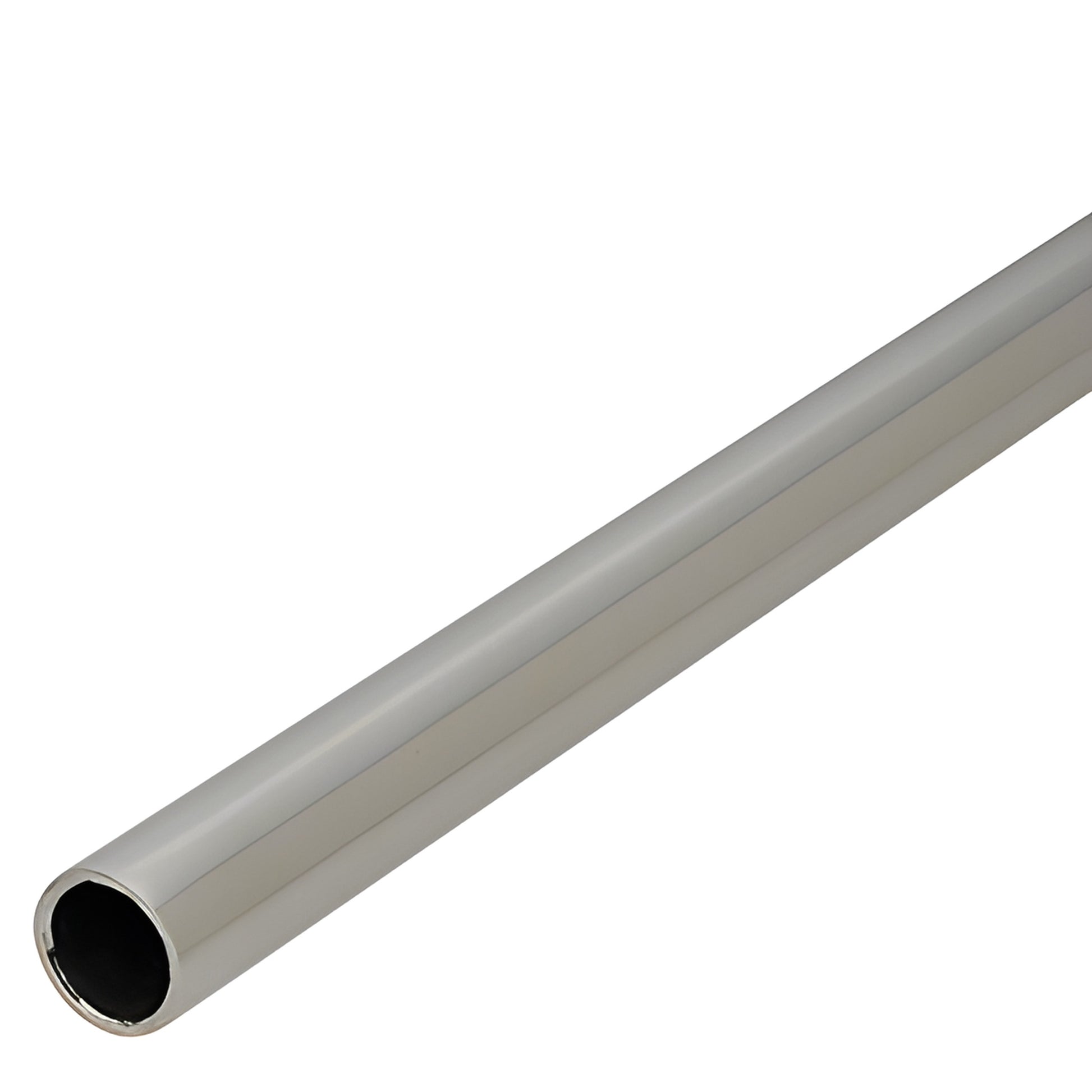

• One — 78" (1981 mm) length of header bar

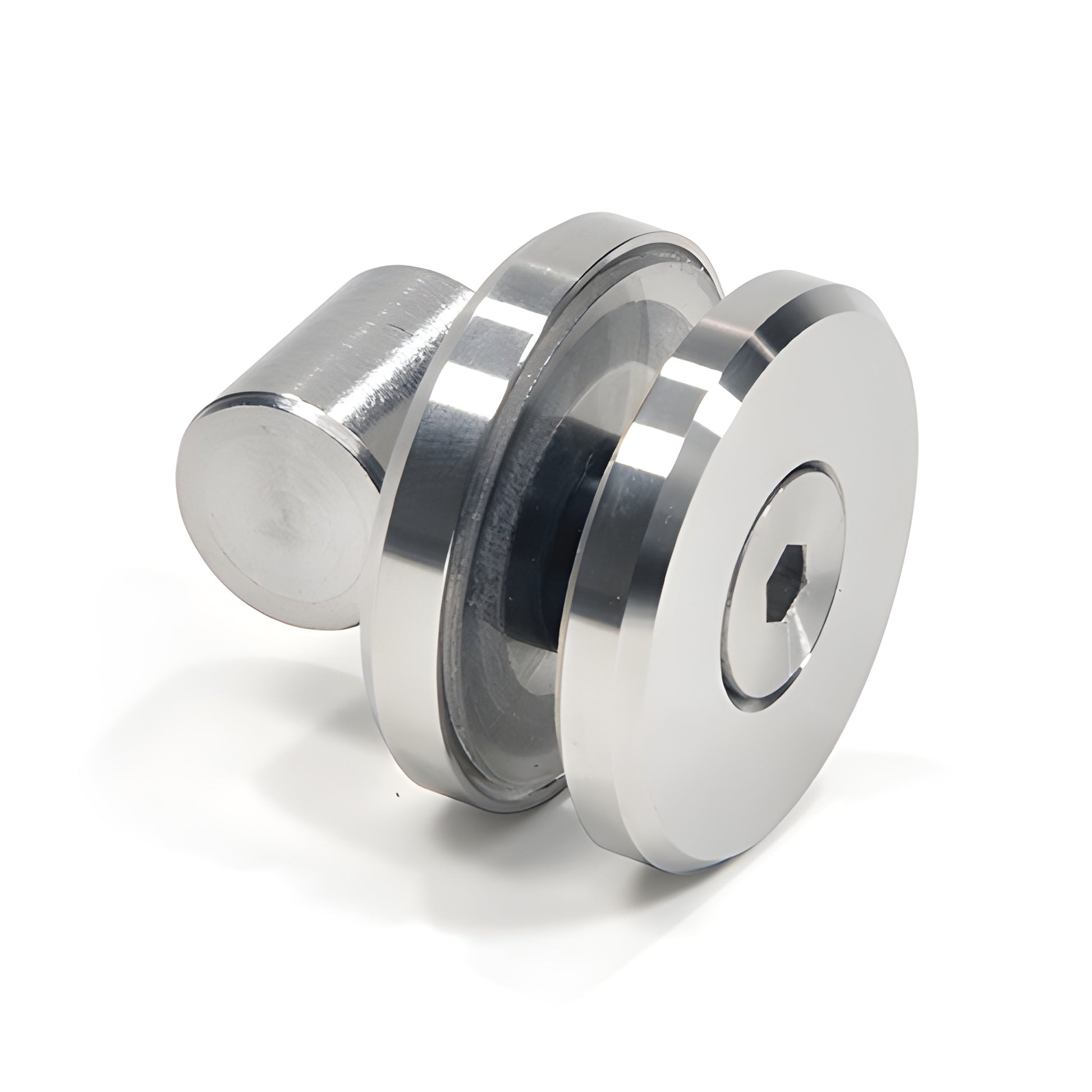

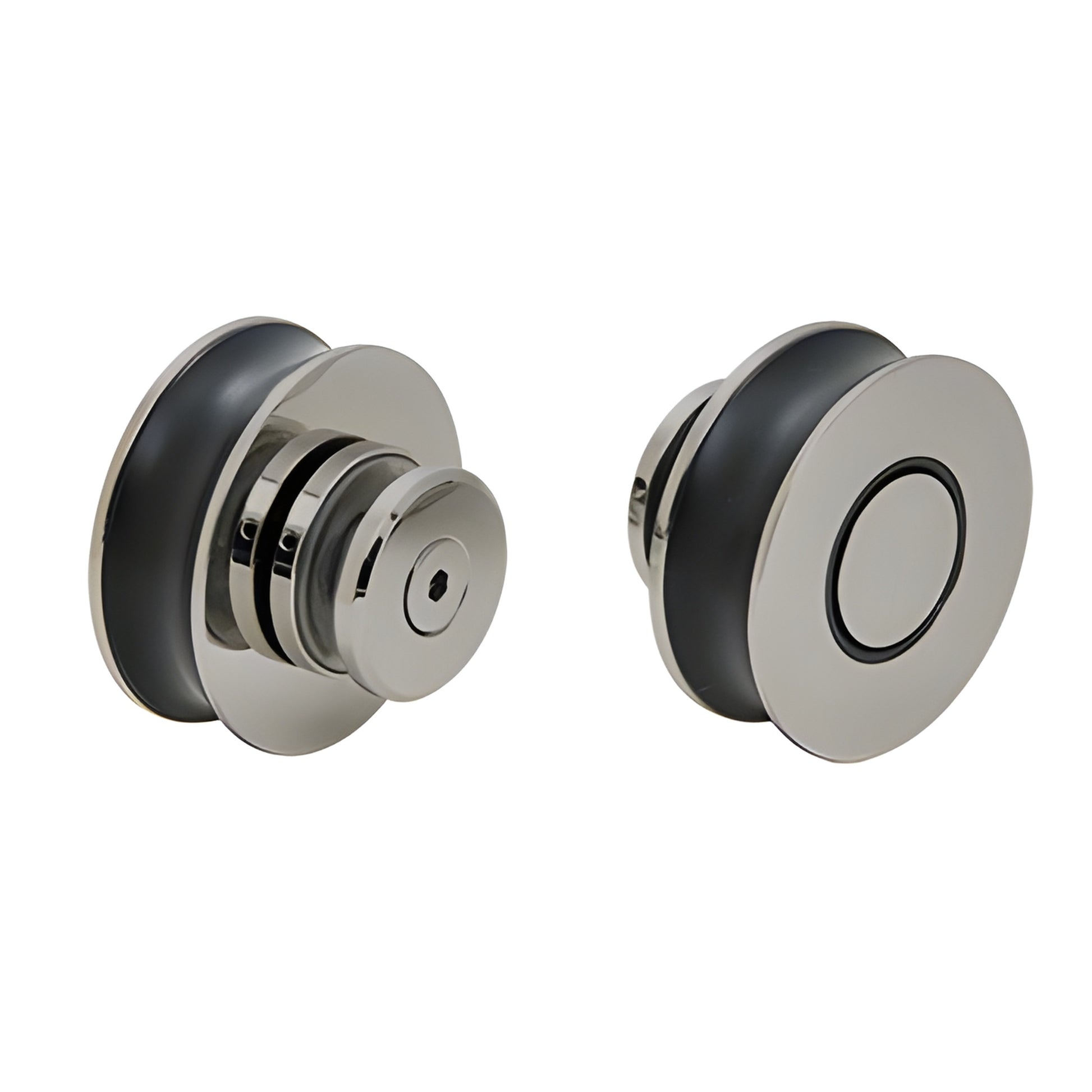

• Four — rollers

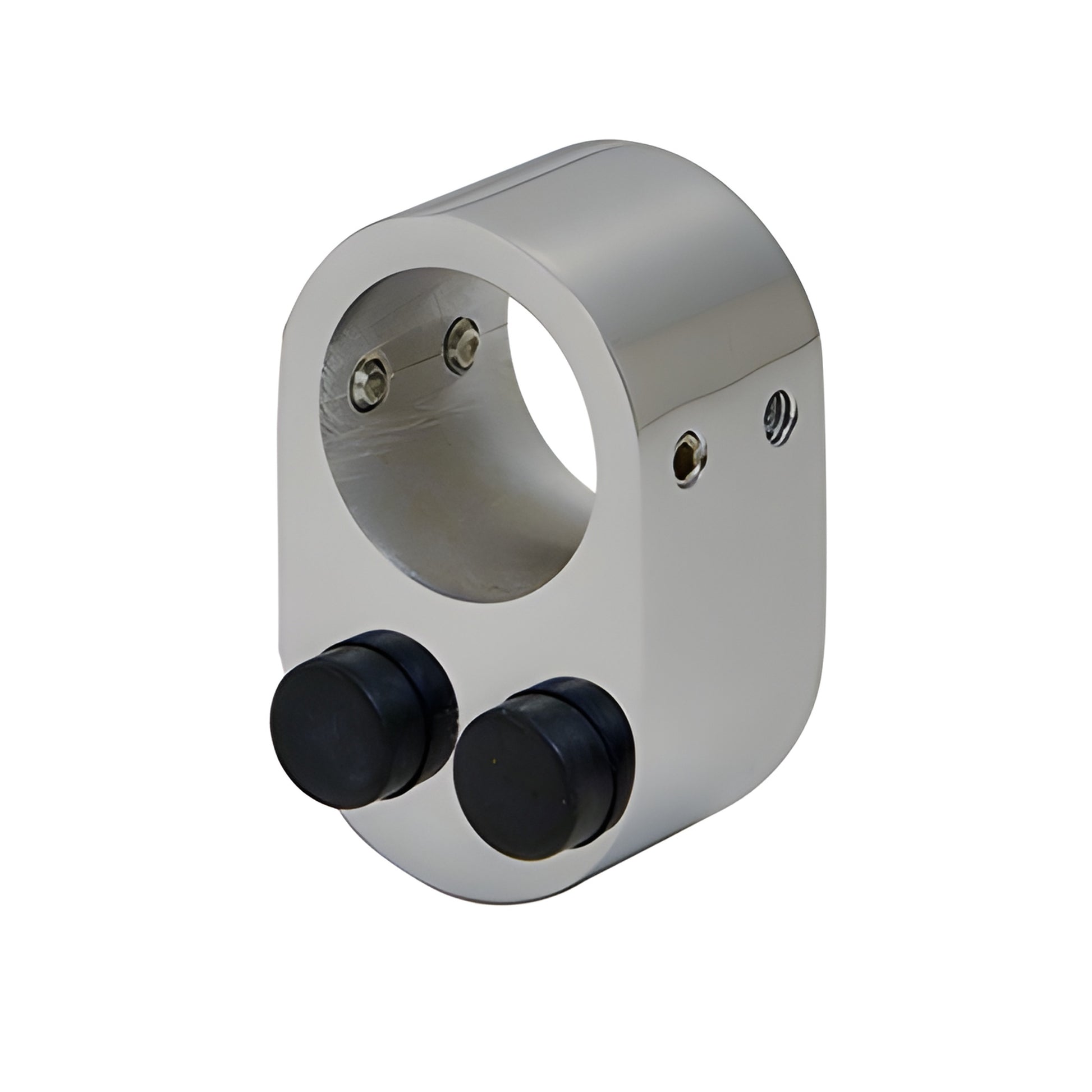

• One — stopper

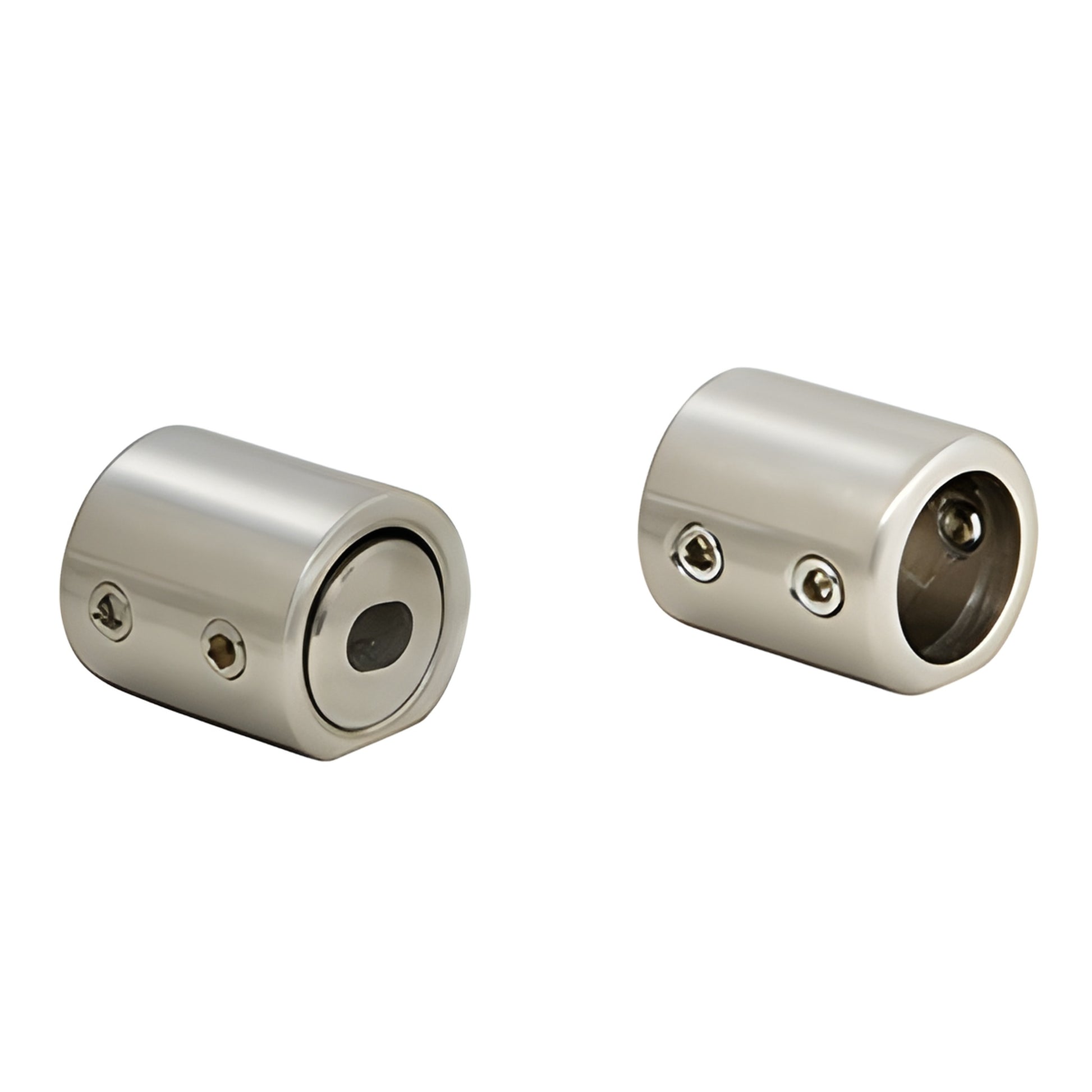

• Two — wall mount fittings
• Two — track holder fittings for fixed panel

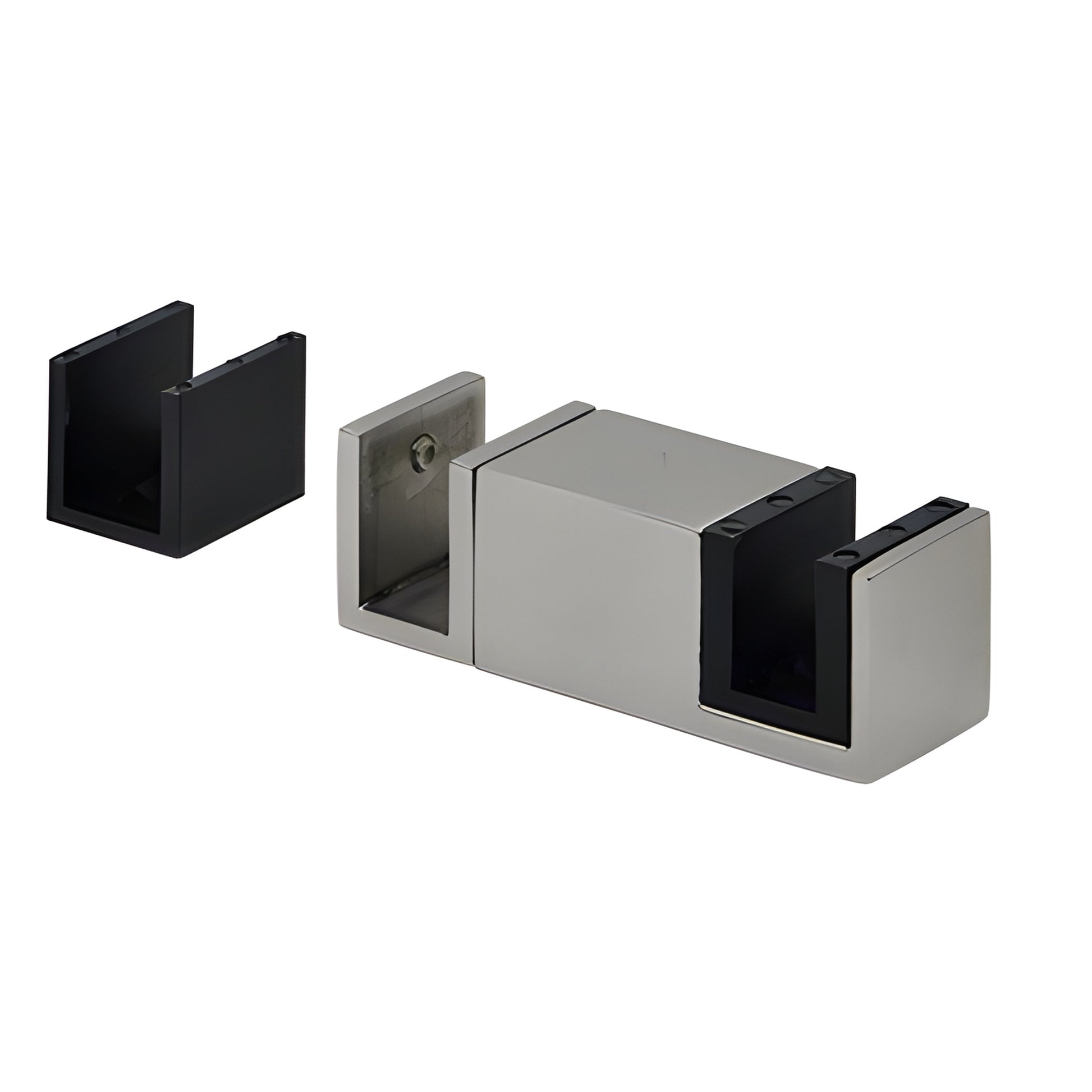

• One — bottom guide (includes inserts for both 1/2" and 3/8" (12 and 10 mm) glass)

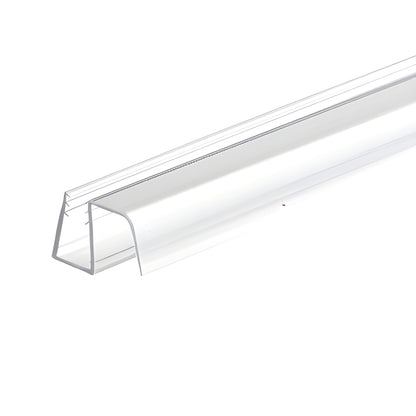

• Two — 40" (1016 mm) bottom sweeps with drip rail (one for 3/8" (10 mm) and one for 1/2" (12 mm))

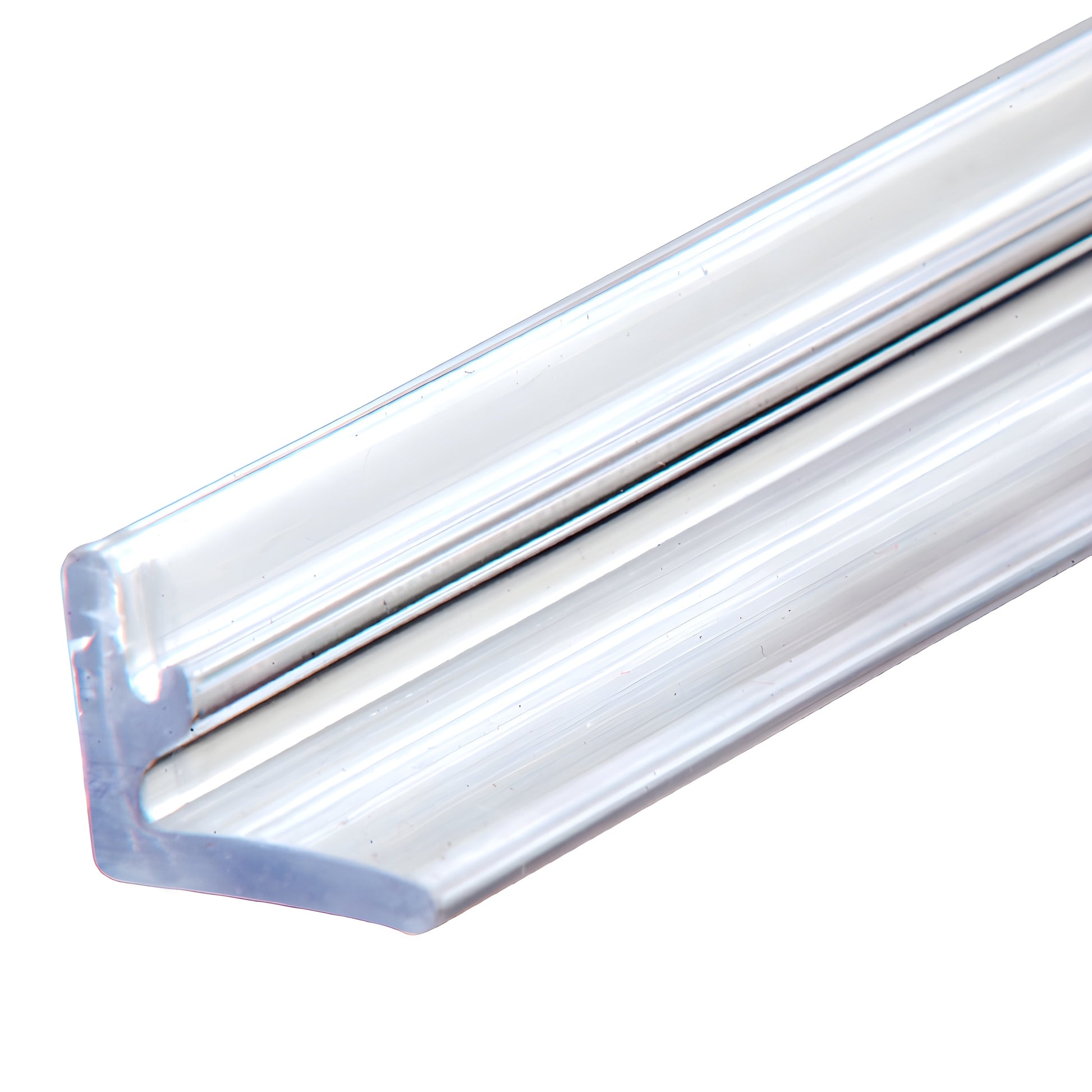

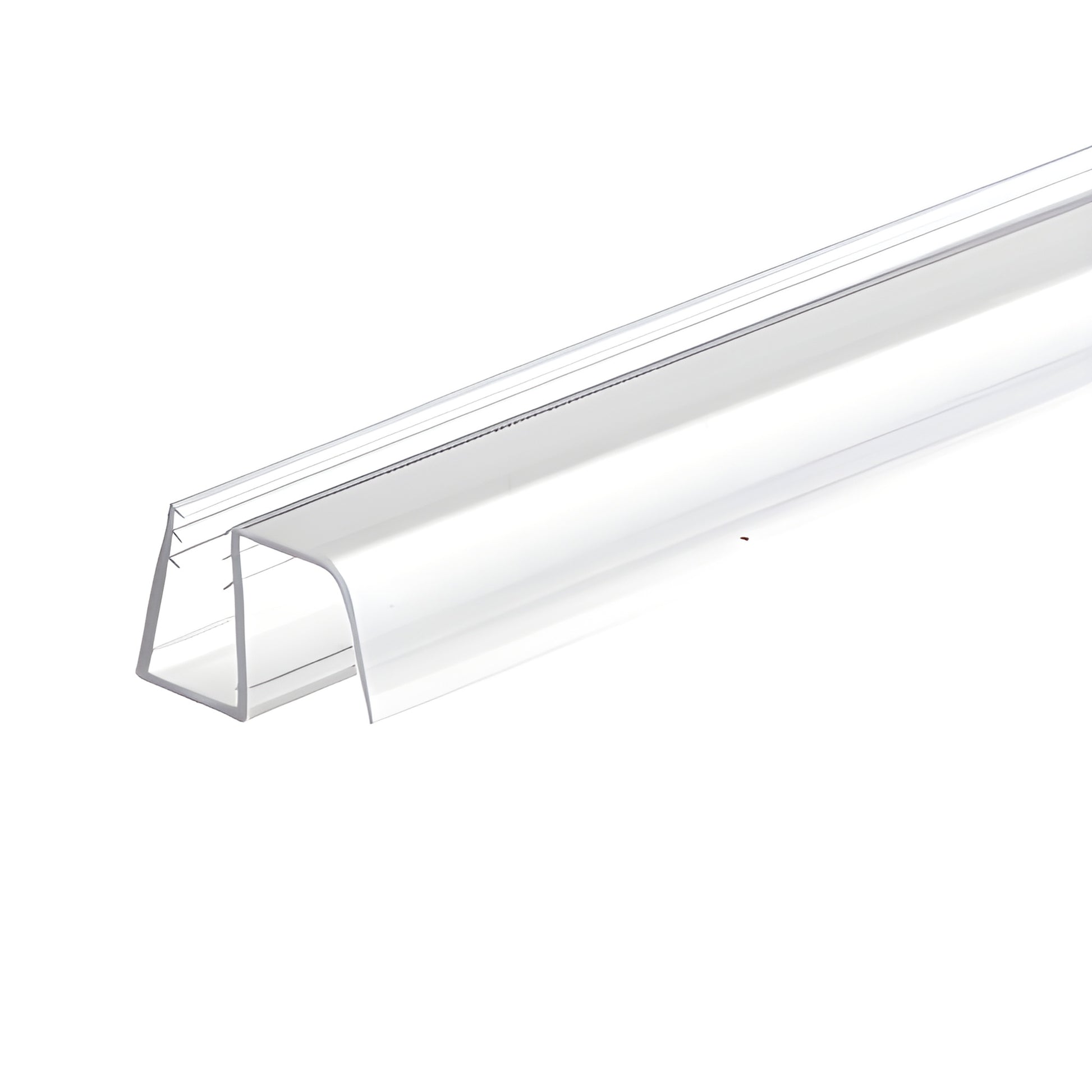

• One — 80" (2032 mm) clear L-jamb

NOTE: Customer to supply choice of handle or knob for door, and glass clamps or U-channel for fixed panel.

SPECIFICATIONS:

• Material: Stainless Steel
• Glass Thickness: 1/2" or 3/8" (12 or 10 mm) — not included
• Maximum Door Size: 36" (914 mm) wide or 100 lbs (45 kg) — do not exceed either width or weight
• Glass fabrication required for both door and fixed panel
