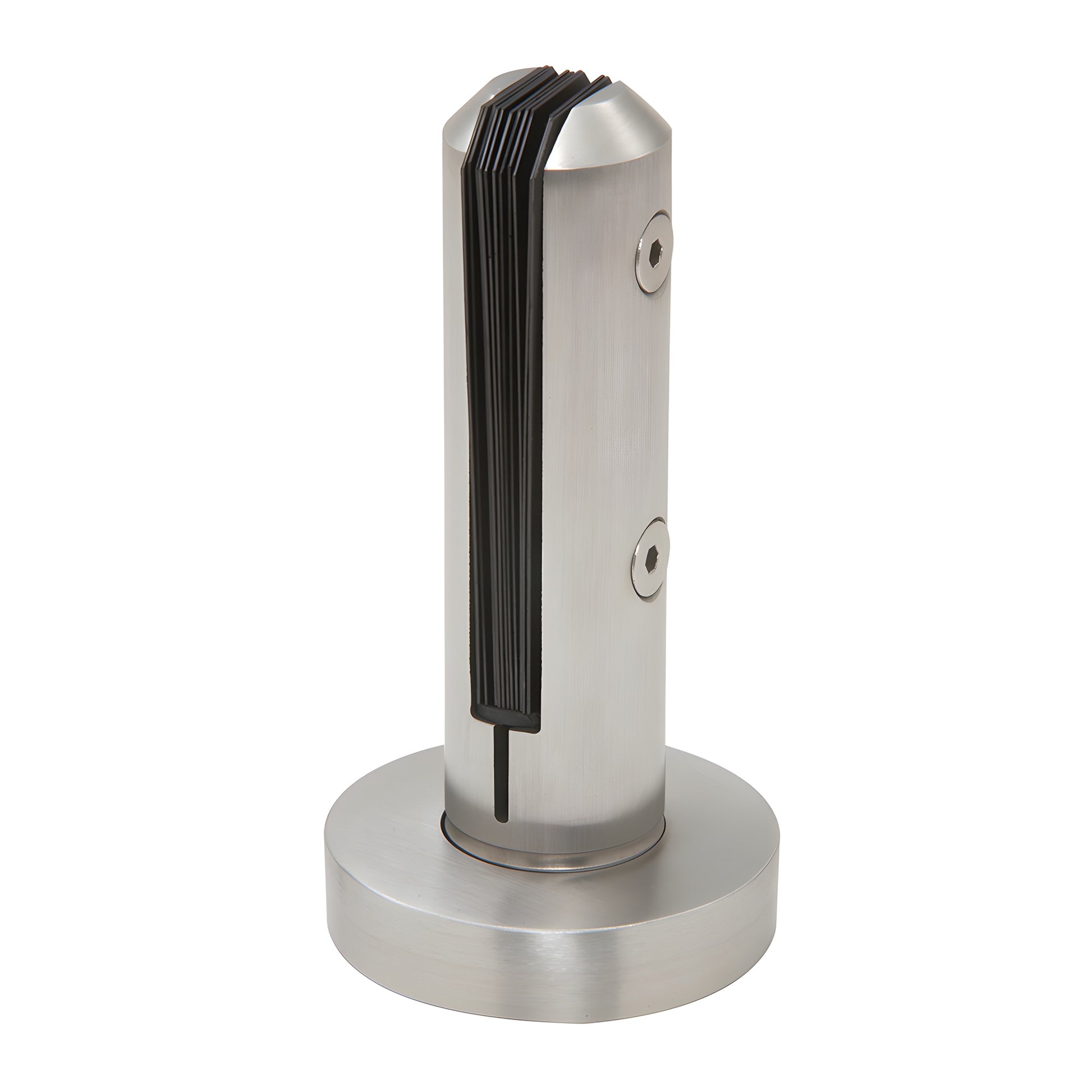

• AFWC4SBS brushed stainless steel surface-mount glass clamp for frameless windscreens/pool surrounds, 3-1/2" base
  • AFWC4SBS brushed stainless steel surface-mount glass clamp for frameless windscreens/pool surrounds, 3-1/2" base
1 2

CRL

CRL Brushed Stainless Low-Profile Surface-Mount Frameless Glass Clamp

CRL Brushed Stainless Low-Profile Surface-Mount Frameless Glass Clamp

$342.09 CAD
$342.09 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# AFWC4SBS
Shipping Weight: 2.26 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Alloy
316
Attachment
Surface
Base Plate Diameter
3-1/2 in. (89 mm)
Diameter
1-7/8in. (48 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in., 9/16 in. (10 mm, 12 mm, 14 mm)
Material
Stainless Steel
Mounting Hole Diameter
9/32 in. (7 mm)

Overview

  • Designed for 3/8" or 1/2" (10 or 12 mm) tempered monolithic glass and 9/16" (13.52 mm) tempered laminated glass
  • Easy-to-install surface mount design for pool decks, patios, and windscreens

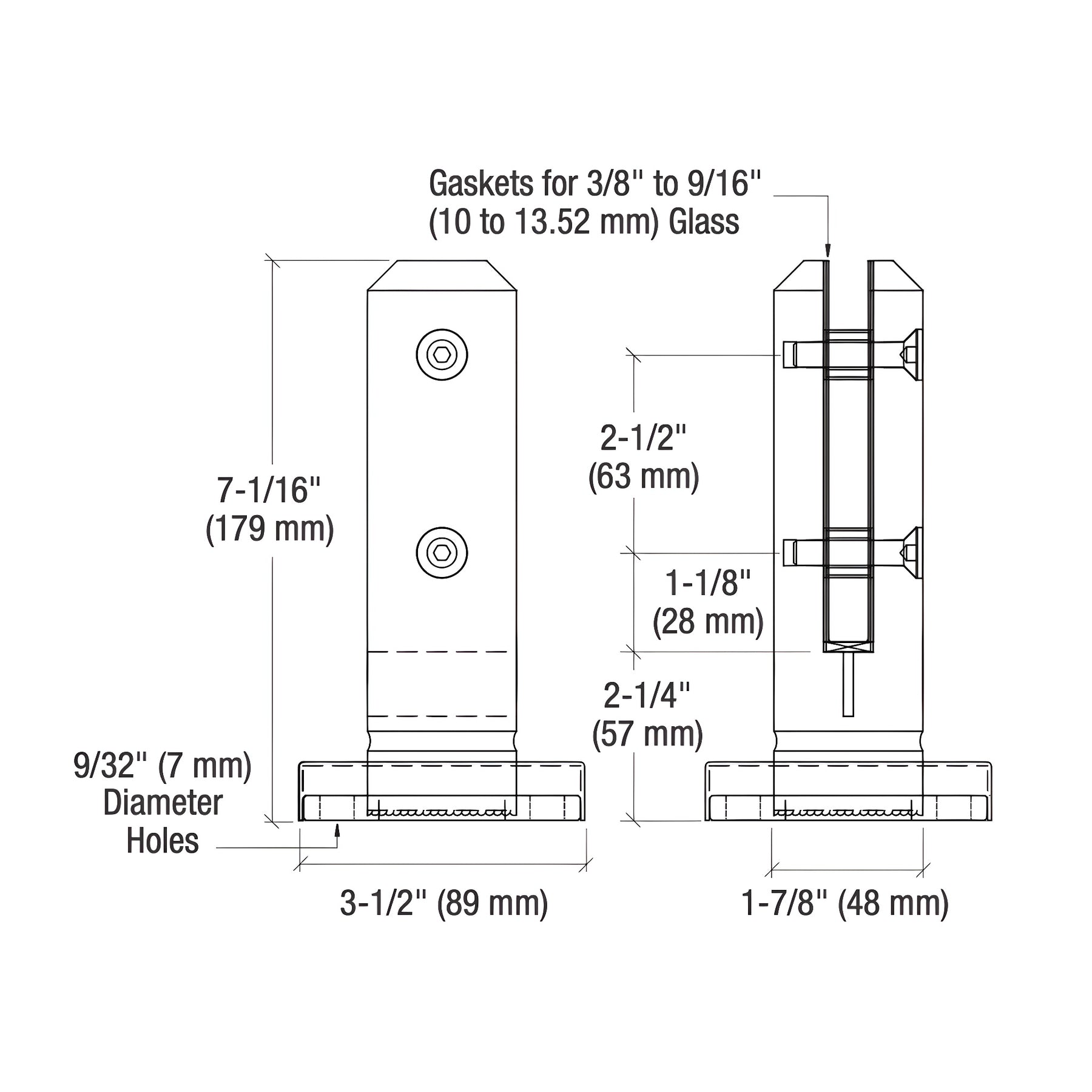

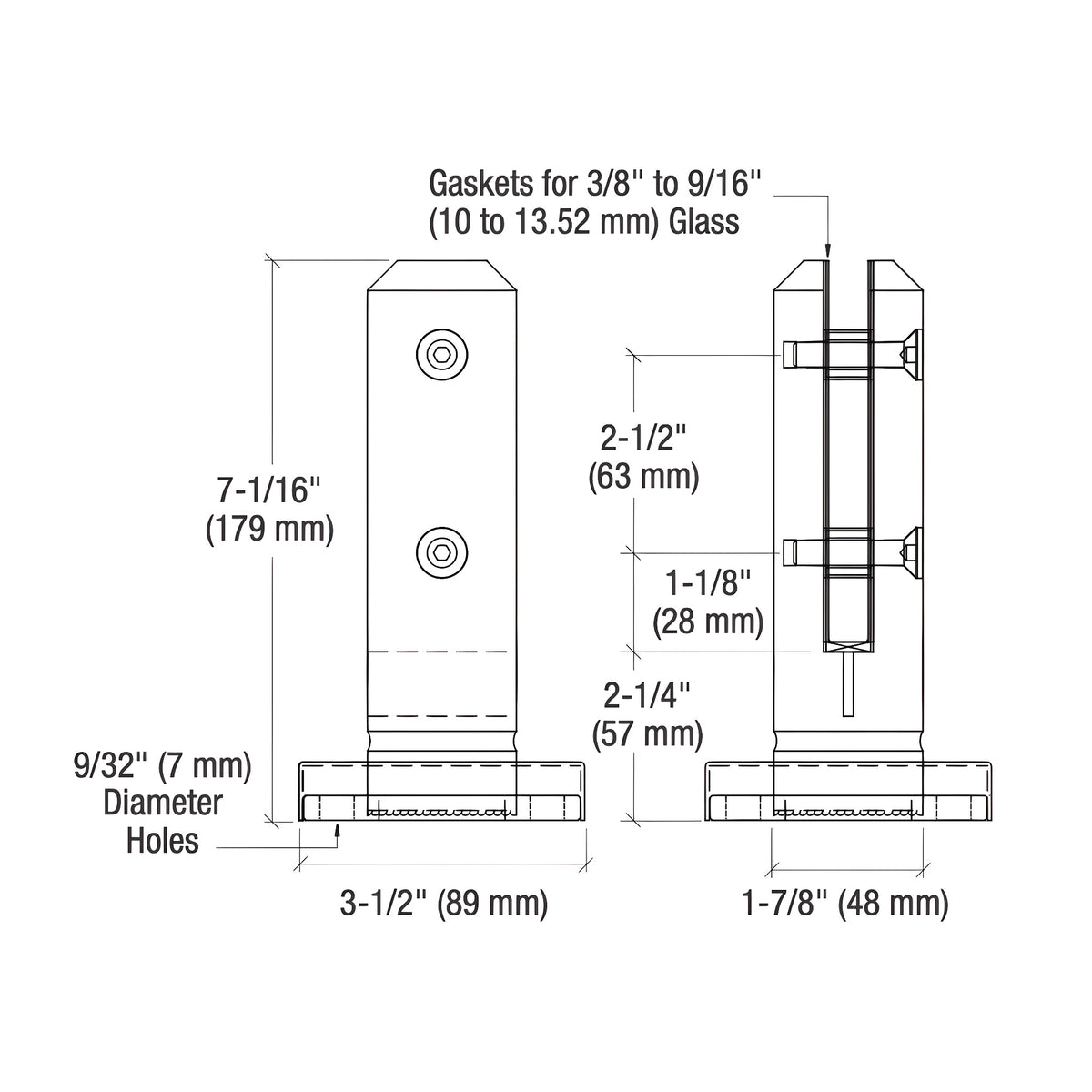

CRL One-Piece Surface Mount Clamps (SKU: AFWC4SBS) provide a low-profile, surface-mounted solution for frameless glass windscreens and pool surrounds. Each clamp requires two 5/8" (16 mm) holes in the glass. Overall height: 7-1/16" (179 mm). Ideal for creating unobstructed views with minimal vertical or horizontal framing.

CRL offers multiple windscreens clamp styles: core-drilled models for concrete decks (filled with expanding cement), a face-mount clamp for walls or planter boxes, and now these surface mount models. Custom powder-coated finishes are available for enhanced corrosion resistance and design matching.

NOTE: CRL is an international supplier—check local building codes to confirm these frameless windscreens and glass clamps meet regional regulations.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs prior to completing your order, please request this by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary by monitor settings.

Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.


Call or order online to get AFWC4SBS surface mount glass clamps for your frameless pool or patio windscreen.
