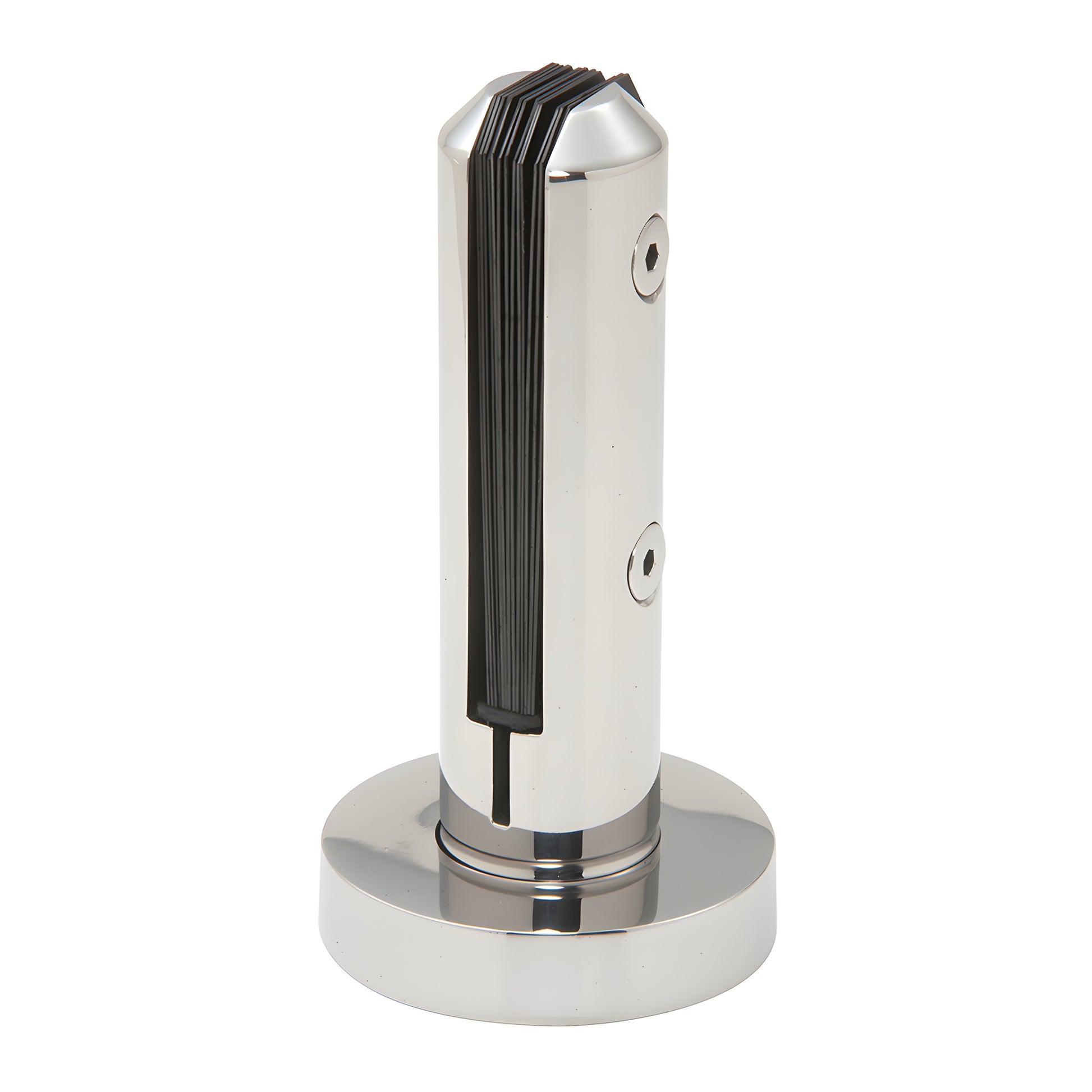

CRL Stainless Low-Profile Round Surface Mount Frameless Glass Clamp

CRL Stainless Low-Profile Round Surface Mount Frameless Glass Clamp

$357.94 CAD
$357.94 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# AFWC4SPS
Shipping Weight: 2.24 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Attachment
Surface
Base Plate Diameter
3-1/2 in. (89 mm)
Diameter
1 7/8 in. (48 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in., 9/16 in. (10 mm, 12 mm, 14 mm)
Material
Stainless Steel
Mounting Hole Diameter
9/32 in. (7 mm)

Overview

  • Designed for 3/8" or 1/2" (10 or 12 mm) tempered monolithic glass and 9/16" (13.52 mm) tempered laminated glass
  • Easy to install one-piece surface mount design for pool decks, patios, and windscreen projects

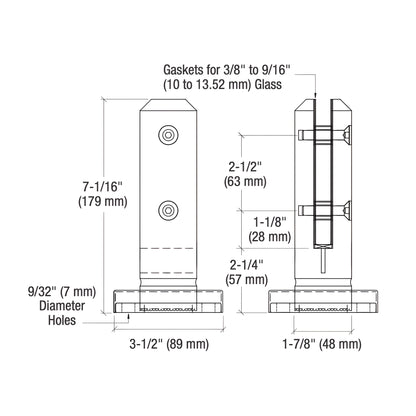

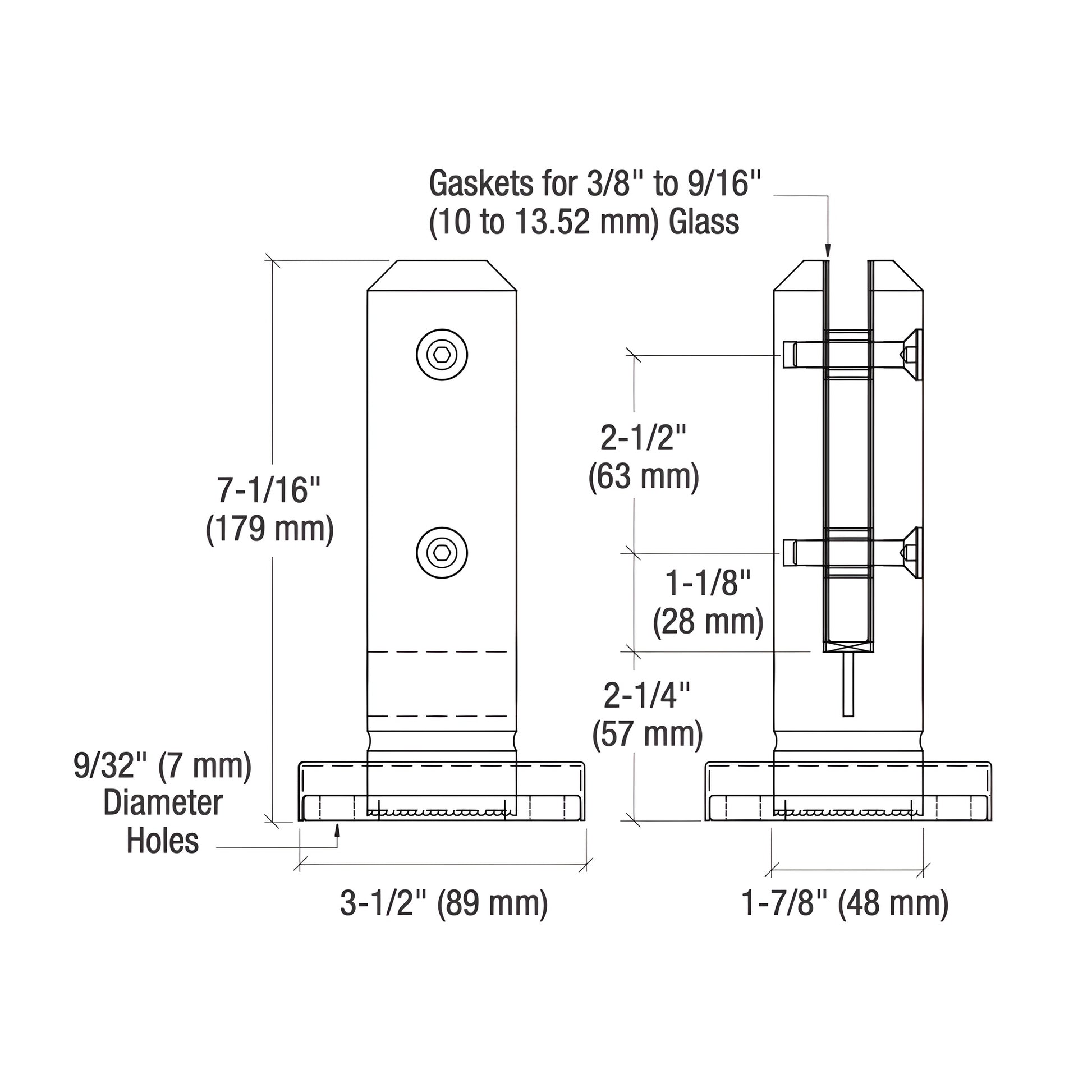

CRL One-Piece Surface Mount Clamps (SKU: AFWC4SPS) provide a low-profile, durable solution for frameless glass windscreens and pool surrounds. Glass fabrication requires two 5/8" (16 mm) holes per clamp. Height: 7-1/16" (179 mm).


These frameless windscreen clamps minimize visual distractions from vertical or horizontal framing and are ideal for creating unobstructed views around pools, patios, and commercial terraces. Four styles are made for insertion in core-drilled concrete deck holes (filled with expanding cement). A face-mount model fits walls or planter boxes, and surface-mount models like this one simplify retrofit installations. Custom powder-painted finishes available.

NOTE: CRL supplies products internationally; verify local building codes to ensure these frameless windscreen clamps meet regional safety and code requirements.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are of the actual product or a close representation; colors may vary by monitor settings.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
