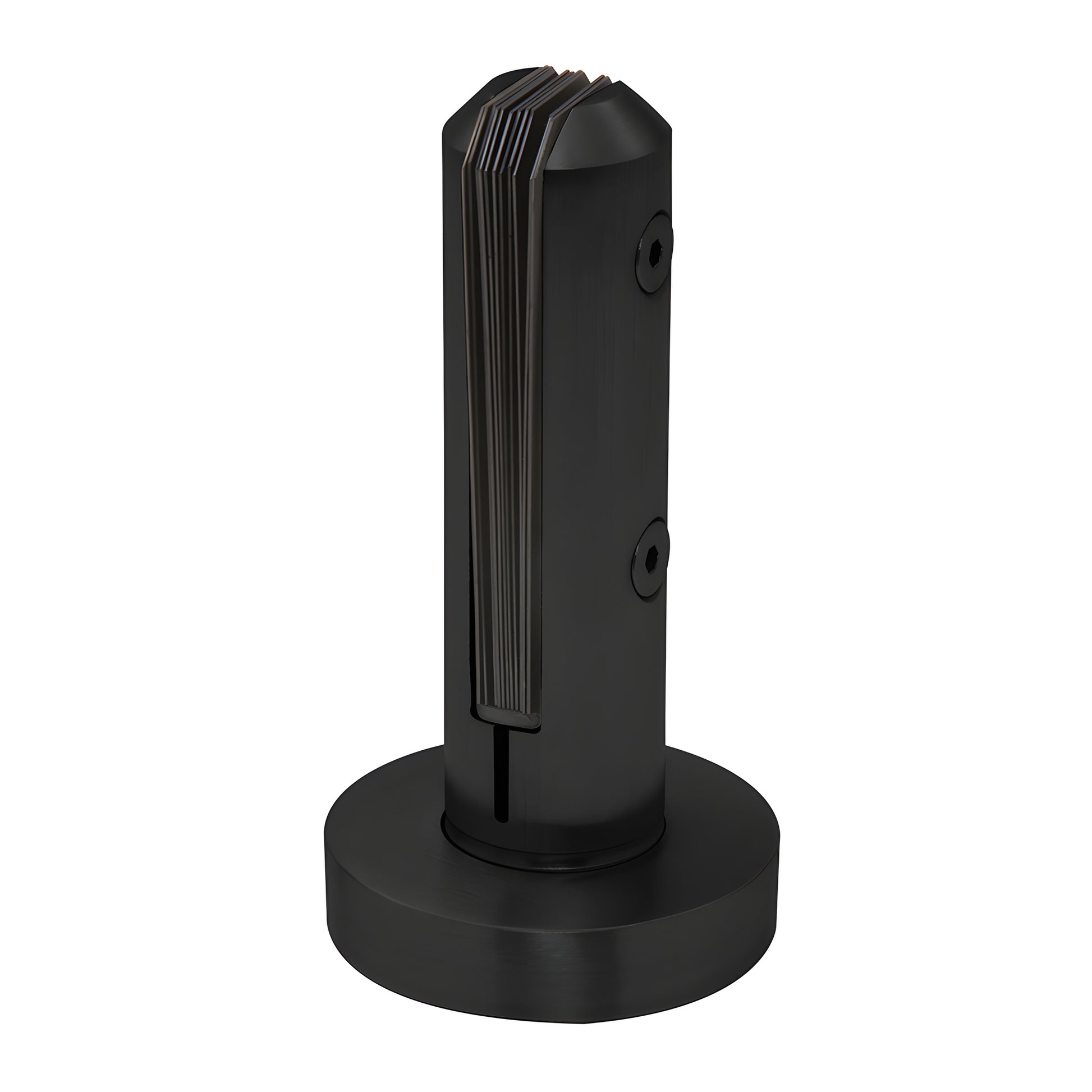

CRL Matte Black Low-Profile One-Piece Surface-Mount Frameless Clamp
CRL Matte Black Low-Profile One-Piece Surface-Mount Frameless Clamp
Regular price
$351.34 CAD
Regular price
Sale price
$351.34 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# AFWC4SMBL
Shipping Weight: 2.26 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.26 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
316
Attachment
Surface
Base Plate Diameter
3-1/2 in. (89 mm)
Diameter
1-7/8in. (48 mm)
Finish/Color
Matte Black
Glazing Thickness
3/8 in., 1/2 in., 9/16 in. (10 mm, 12 mm, 14 mm)
Material
Stainless Steel
Mounting Hole Diameter
9/32 in. (7 mm)
Overview
- Fits 3/8" or 1/2" (10 or 12 mm) tempered monolithic glass and 9/16" (13.52 mm) tempered laminated glass
- Easy-to-install one-piece surface mount design for pool decks, patios, and windscreens

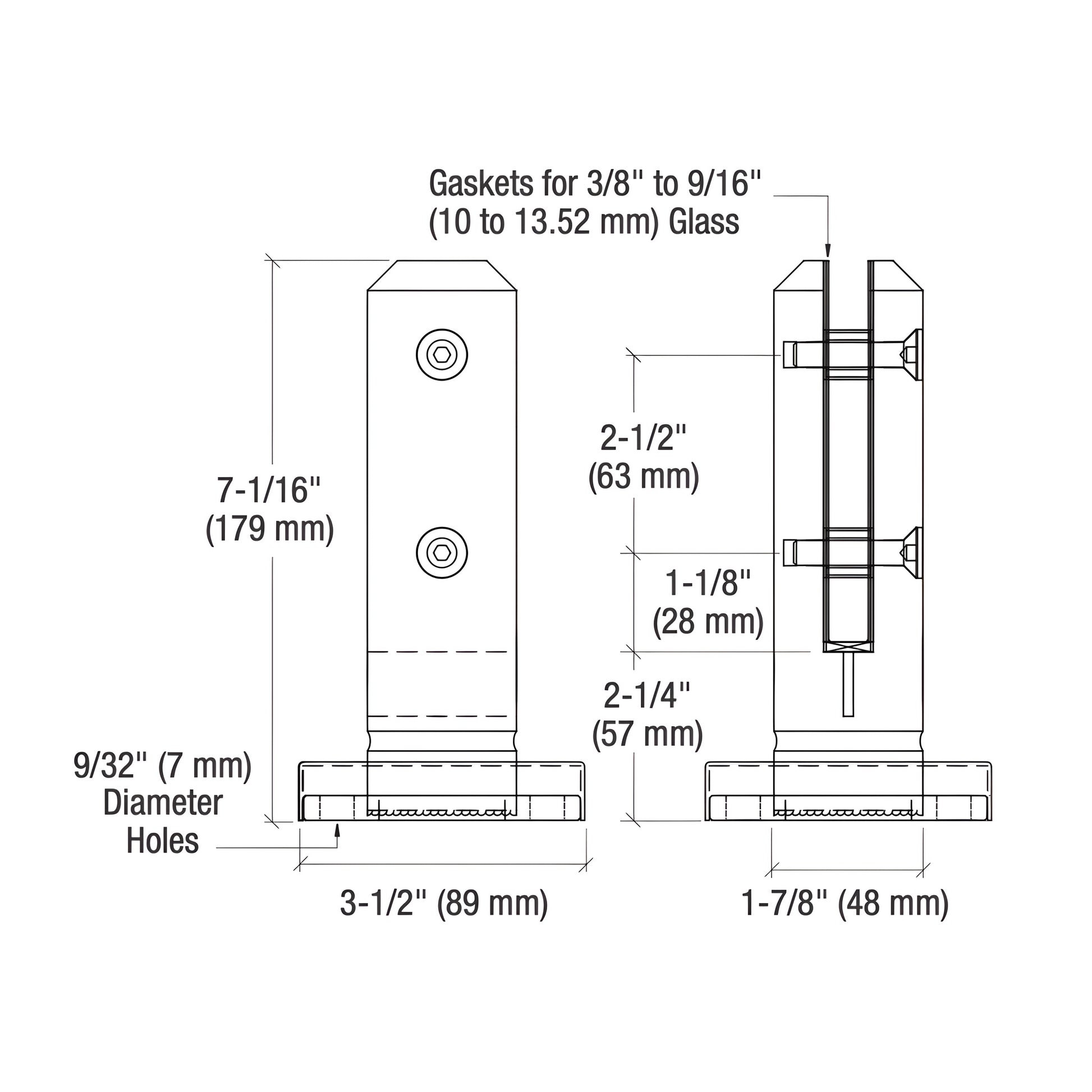

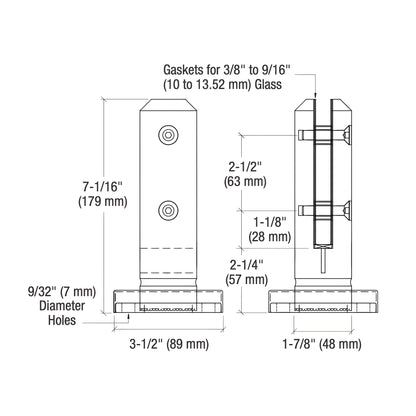

CRL one-piece surface mount clamps (SKU: AFWC4SMBL) secure tempered glass with minimal visual interruption. Requires two 5/8" (16 mm) holes per clamp for glass fabrication. Overall height: 7-1/16" (179 mm). Ideal for frameless windscreen and pool surround applications where a clean, modern look is desired.
These frameless windscreen clamps are typically used to create tempered glass windscreens or pool surrounds without vertical or horizontal frame members. Options include models for core-drilled concrete decks (filled with expanding cement), face-mounting to walls or planter boxes, and surface-mount models like AFWC4SMBL. Custom powder-painted finishes are available to match exterior design schemes.
NOTE: CRL is an international supplier; check local building codes to confirm these frameless windscreen clamps meet regional regulations.
Specifications
Engineering & Test Reports
